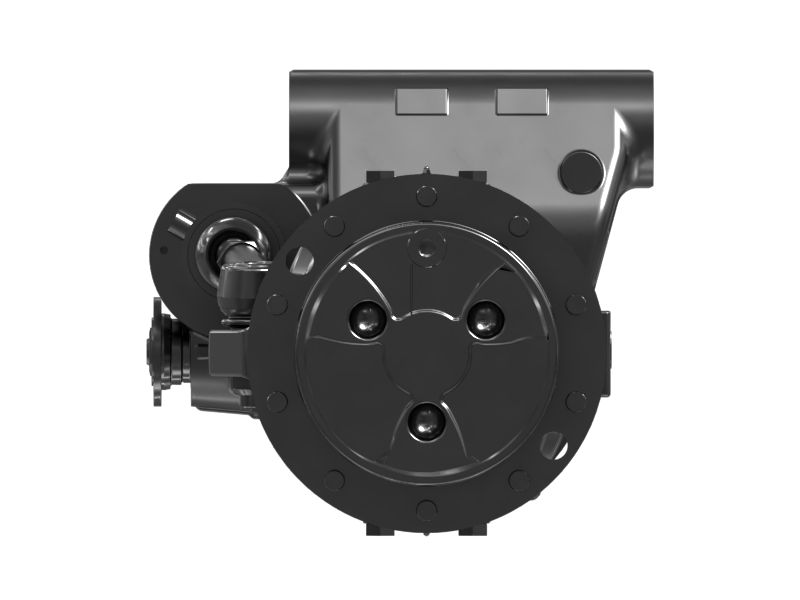

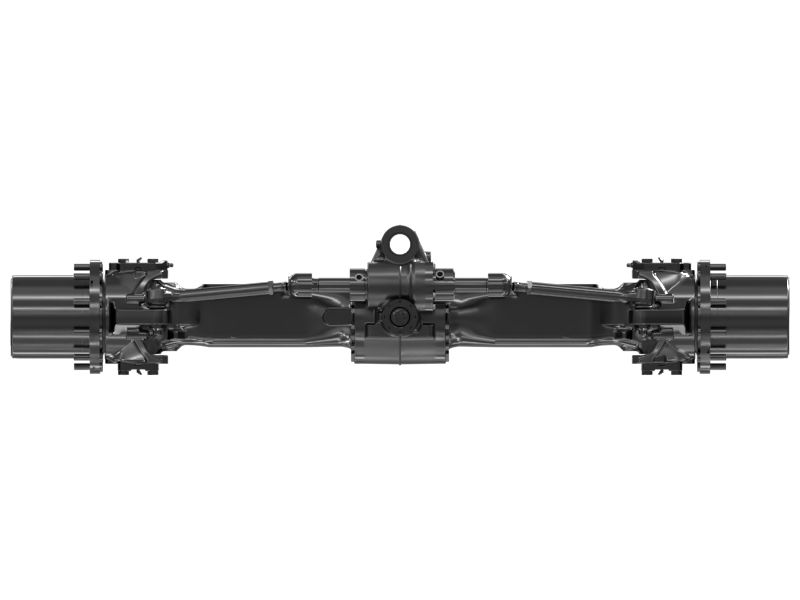

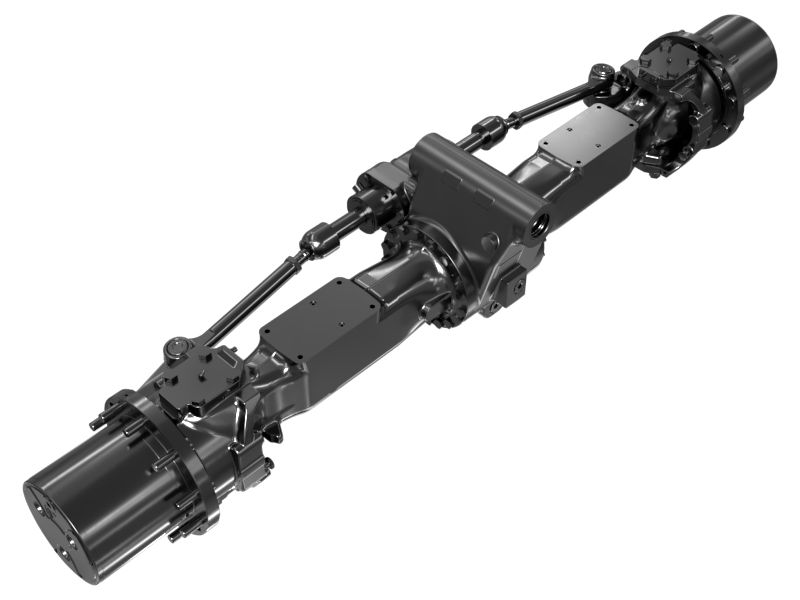

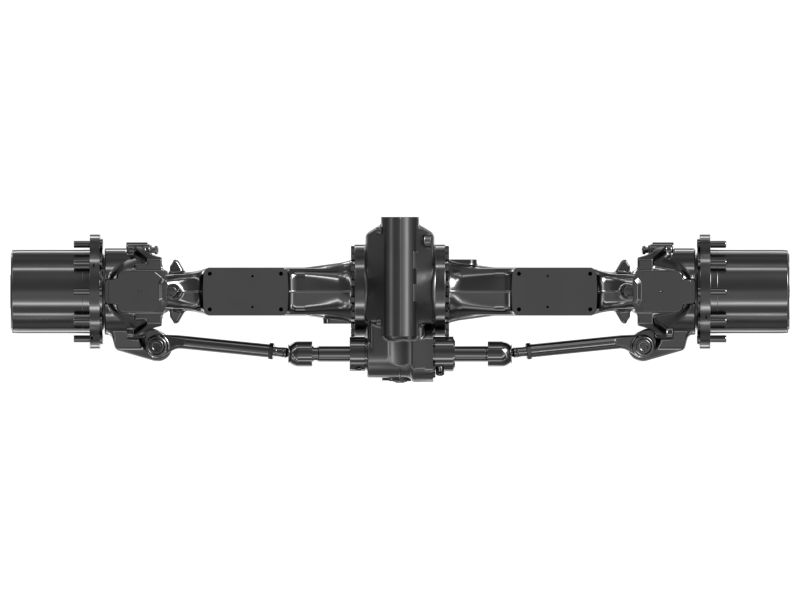

566-0149: Steering Drive Axle

The Steering Drive Axle is responsible for translating steering input into movement and distributing the equipment's weight across the front wheels. This axle consists of a solid beam and shaft that connects the front wheels to the chassis and frame of the equipment. It incorporates different components such as steering knuckles, hubs, and bearings to facilitate smooth rotation and articulation during steering maneuvers. By allowing the front wheels to turn independently, the steering axle enables the operator to navigate tight spaces, enhancing overall control and safety.

Attributes:
• Balanced weight distribution for stability.
• Facilitates alignment and adjustment of wheel angles.
• Provides torque transmission to the wheels.
• Ensures effective load distribution across the axle.

Applications:
The Steering Drive Axle is located within the powertrain assembly, connecting directly to the steering mechanism and drive wheels and ensuring controlled steering and movement of the equipment in all operational conditions.

• Weight (kg): 700

• Weight (lb): 1543.236

• Material: Ductile (Spheroidal) Iron
