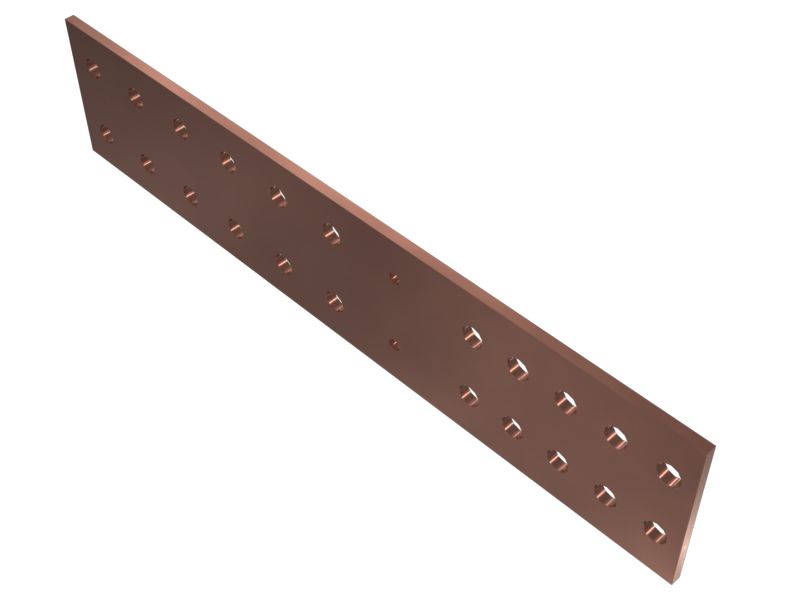

566-0084: 6.4mm Thick Main Bus Bar

The Main Bus Bar efficiently distributes electrical power from the power source to different electrical circuits and components while ensuring minimal power loss during transmission. The bus enables the secure attachment of cables and wires, facilitating the safe and reliable operation of electrical systems. It coordinates power distribution across different parts of the equipment, ensuring consistent performance and functionality.

Attributes:
• High conductivity for efficient electrical transmission.
• Prevents electrical arcing for safe connections.
• Minimizes voltage drop for consistent performance.
• Withstands heat and thermal expansion.

Applications:
The Main Bus Bar is located within the bus bar box, interfacing with the main power source and positioned to efficiently distribute electrical power throughout the equipment.

• Weight (kg): 2.548

• Weight (lb): 5.617

• Length (mm): 476

• Length (in): 18.74

• Width (mm): 101.6

• Width (in): 4

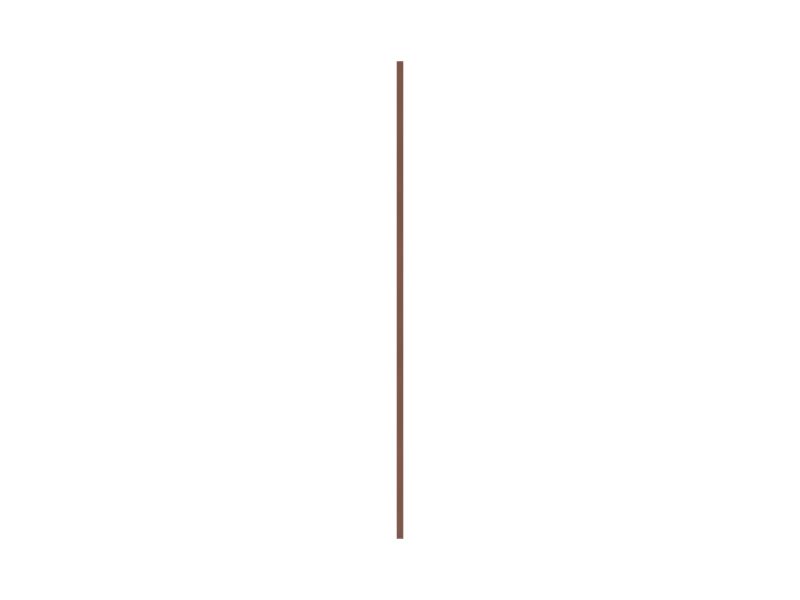

• Thickness (mm): 6.4

• Thickness (in): 0.25

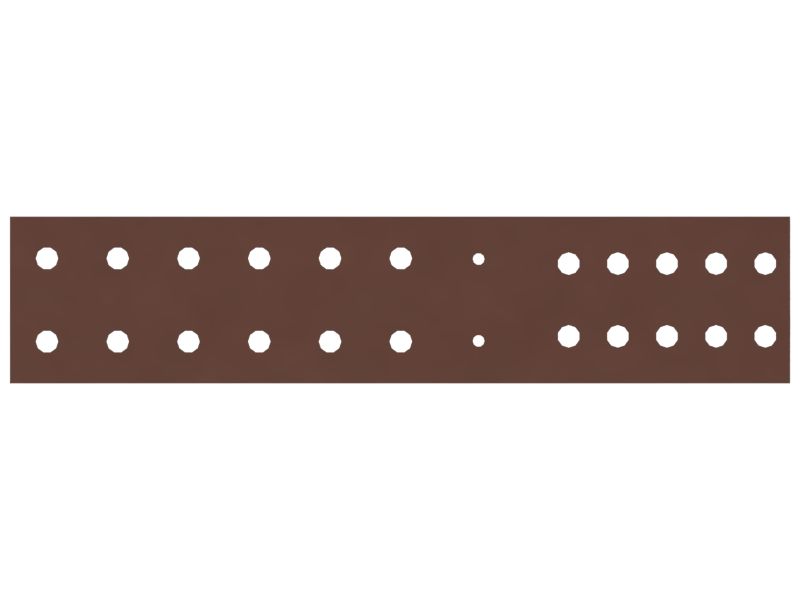

• Hole Size (mm): 7.5, 14

• Hole Size (in): 0.3, 0.55

• Material: Copper,Alloy Copper
