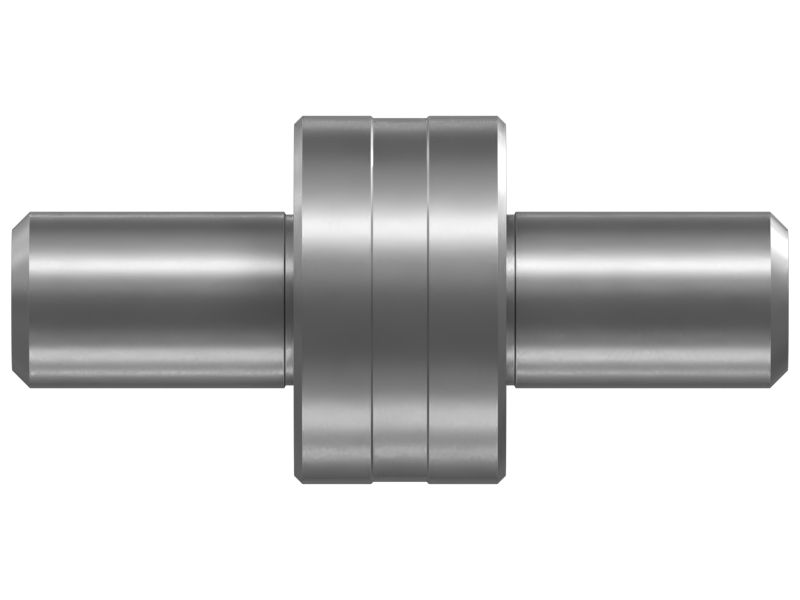

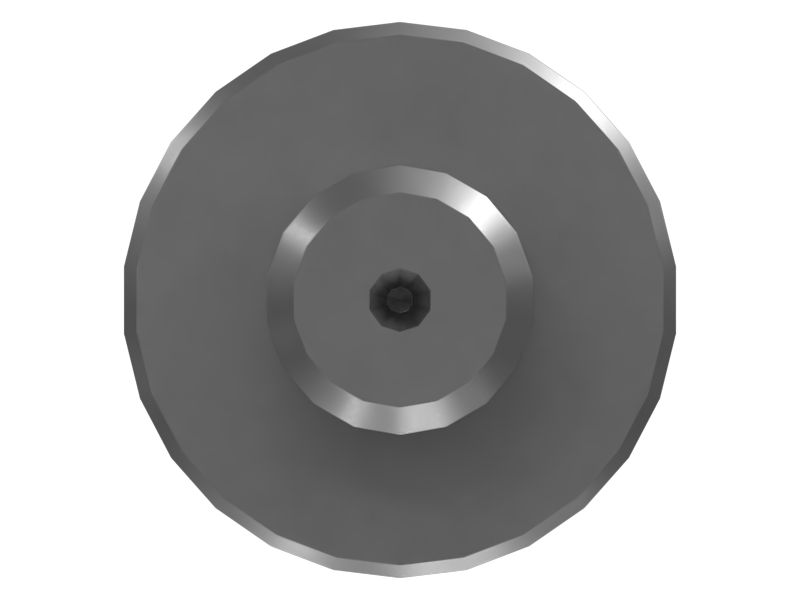

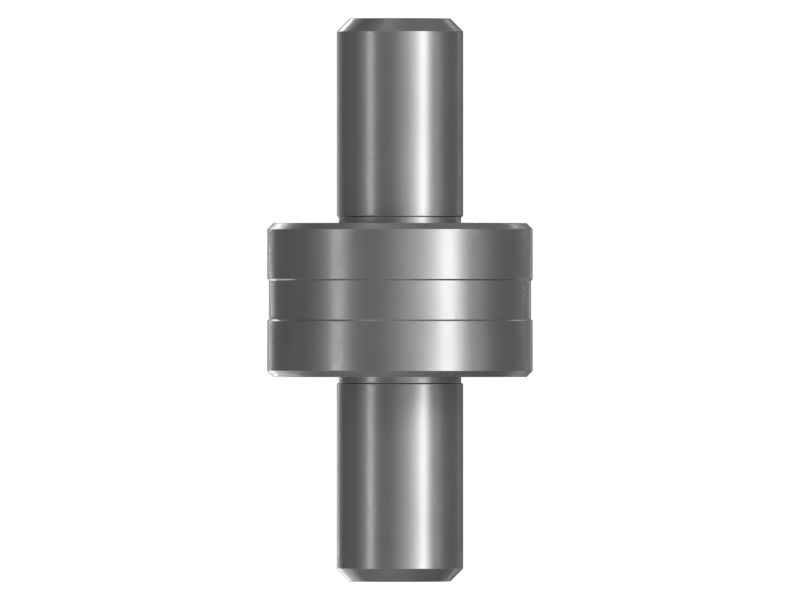

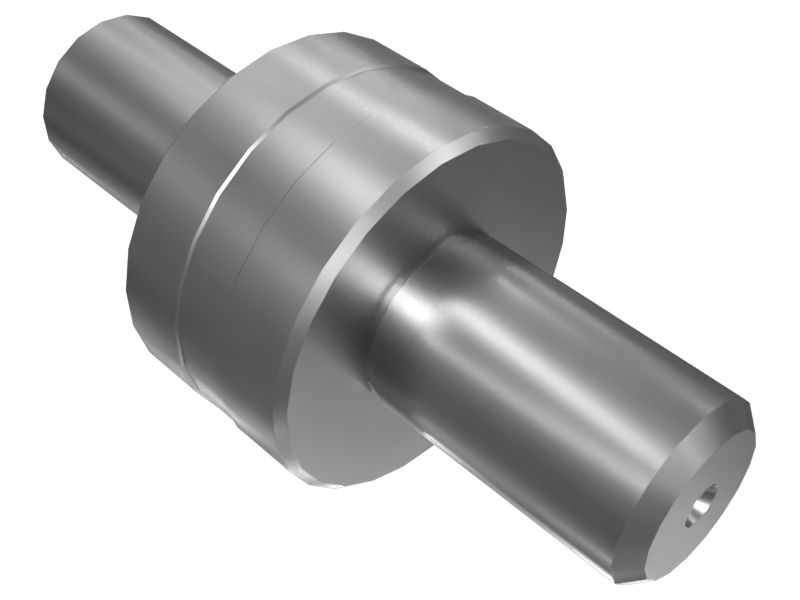

563-9250: 66.29mm Outer Diameter Pin Mandrel

The Pin Mandrel is used to assess the alignment and distortion of connecting rods. It provides a reliable method for evaluating the bore's alignment and the rod's straightness for maintaining engine performance and longevity. By inserting the pin mandrel into the connecting rod, technicians can measure any deviations or misalignments, ensuring that the rod fits correctly and operates smoothly within the engine. This tool is for accurate diagnostics and adjustments during engine repairs and maintenance, helping to prevent potential mechanical failures.

Attributes:
• Provides an effective solution for alignment checks in mechanical systems.
• Ensures accurate detection of bore misalignment.
• Helps identify rod distortion with high precision.
• Provides reliable measurements for maintenance checks.

Applications:
The Pin Mandrel is used in the inspection and repair of connecting rods within engines, inserted into the connecting rod to check for bore misalignment and rod distortion, ensuring accurate alignment and proper function.

• Weight (kg): 1.643

• Weight (lb): 3.622

• Length (mm): 139.7

• Length (in): 5.5

• Pin Diameter (mm): 31.8

• Pin Diameter (in): 1.252

• Outer Diameter (mm): 66.29

• Outer Diameter (in): 2.61

• Material: Steel,Carbon Steel
