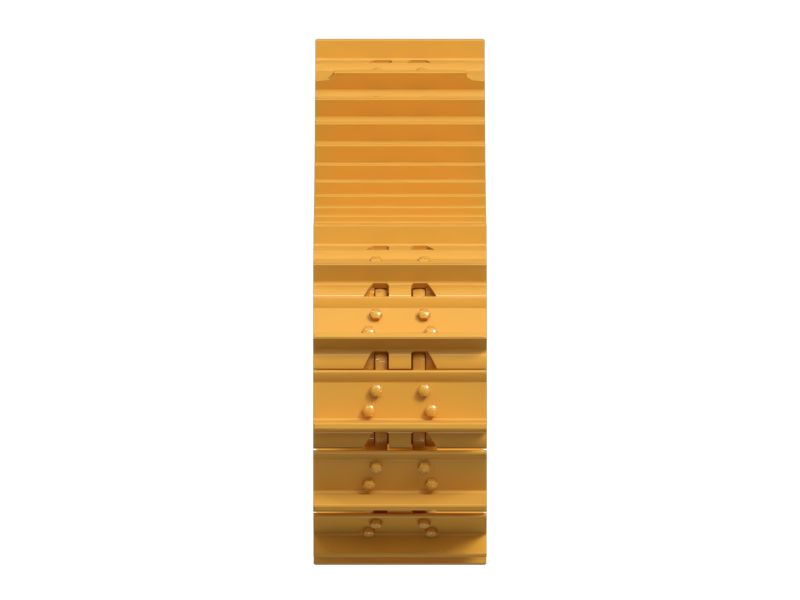

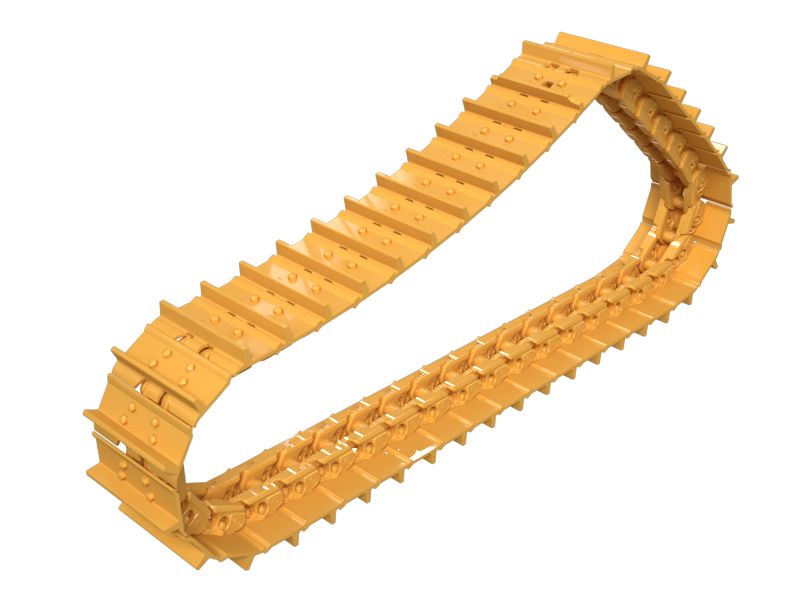

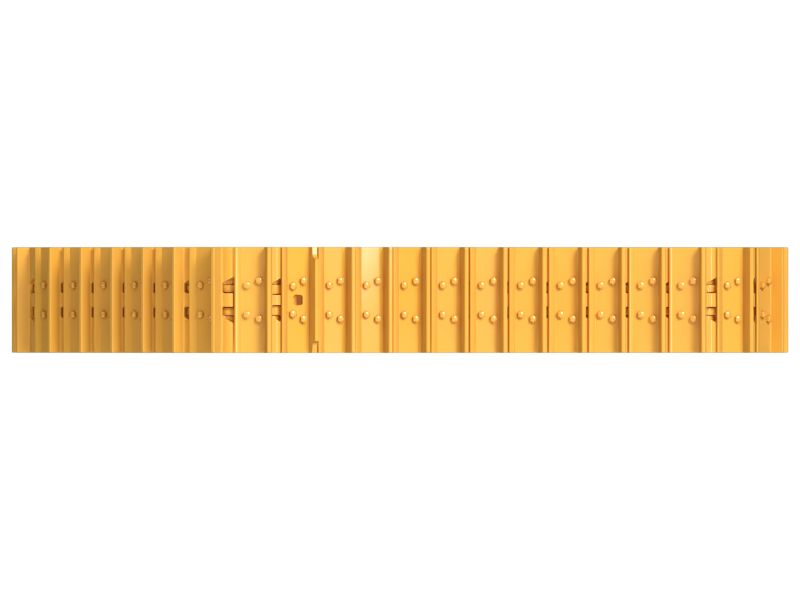

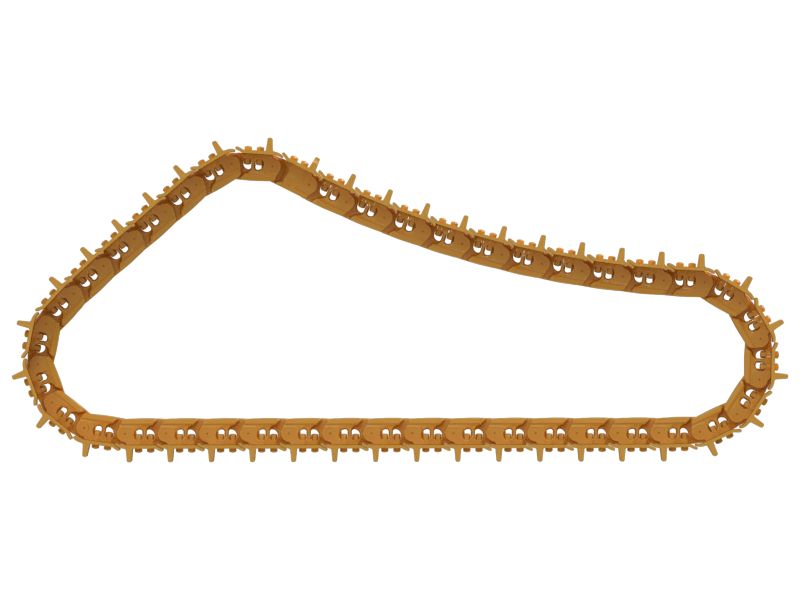

563-8471: ГУСЕНИЧНАЯ ЛЕНТА

The link track shoe provides traction between the equipment and the ground. It is equipped with a grouser, which is the protrusions on the outer surface of the track shoe, that dig into the terrain and grip the ground as the equipment moves. This traction prevents slippage, allowing the equipment to move efficiently and effectively even on challenging surfaces such as loose soil, mud, snow, gravel, or uneven terrains.

Attributes:
• Helps distribute the weight of the equipment and the load it carries over a larger area
• Sealed and lubricated design helps to prevent dirt, debris, and moisture from entering the Joint

Applications:
The link track shoe provides traction, stability, and support to ensure efficient movement of the equipment and performance in challenging terrains.

• Grease Track Type: Not Applicable

• Clipped: No

• Hole Type: Not Applicable

• Seal And Lube Type: SALT

• Shoe Type: ES

• Master Bolt Thread: M36

• Offset: Not Applicable

• Number of Track Sections: 41

• Shoe Width (mm): 810

• Track Stiffening System: Not Applicable

• ARM: No

• Number of Grousers: Single

• Master Link Type: 1 Tooth Master

• Track Bolt Thread: 1.375
