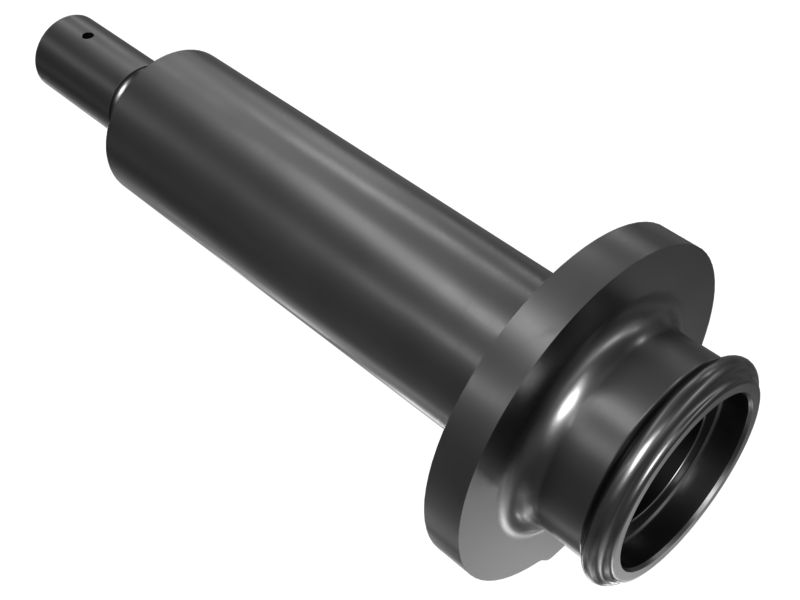

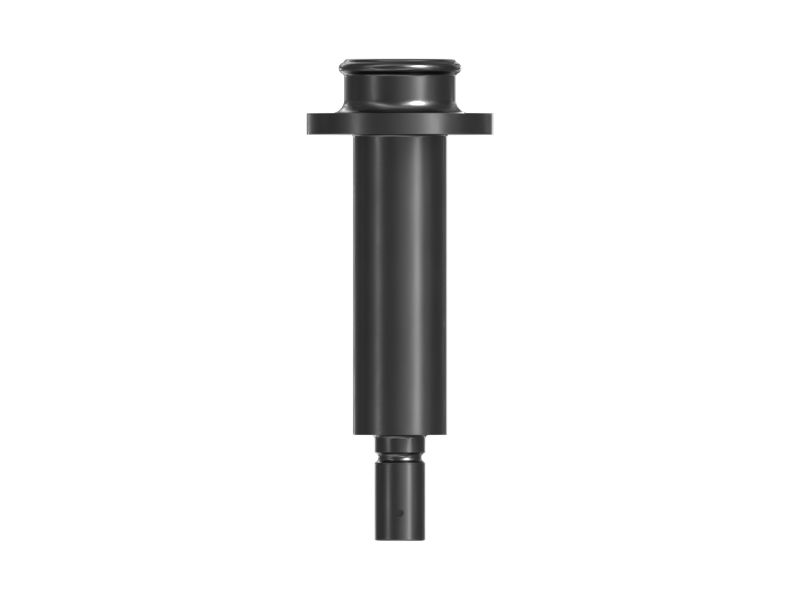

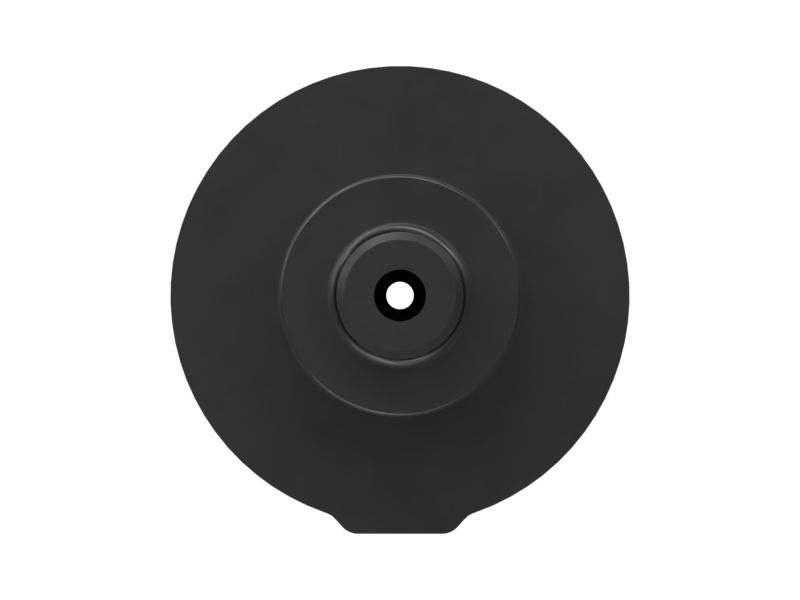

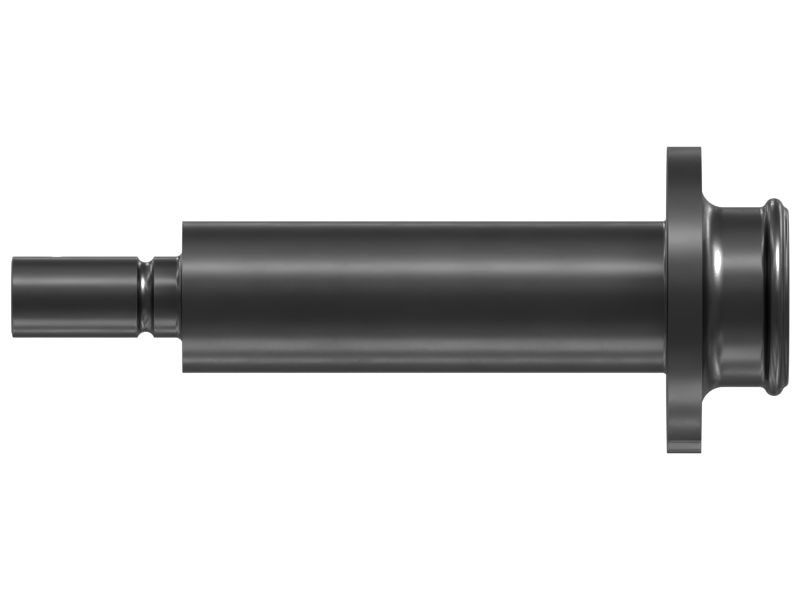

560-6420: Recoil Cylinder

Cat® Recoil Hydraulic Cylinder uses a large recoil spring and grease filled adjustment cylinder which allows the idler to move forward and back to maintain proper track tension as it absorbs undercarriage shock loads. Cat® Cylinders are configured to contain a quantity of hydraulic fluid. A rod element is coupled to the idler and configured to reciprocate within the recoil cylinder. The idler is configured to exert a force on the rod element to drive hydraulic fluid from the recoil cylinder when the force exceeds a predetermined force. Cat® Cylinders are manufactured with thick tube walls that enable more service lives.

Application:
Cat® Recoil Cylinders are used in undercarriage system front idler of Cat® Heavy duty equipment. Consult your owner's manual or contact your local Cat® Dealer for more information.

• Length (mm): 346.2

• Length (in): 13.63

• Height (mm): 134

• Height (in): 5.28

• Width (mm): 67.4

• Width (in): 2.65

• Bore Diameter (mm): 50.89

• Bore Diameter (in): 2

• Material: Carbon Steel

• Weight (kg): 5.59

• Weight (lb): 12.32
