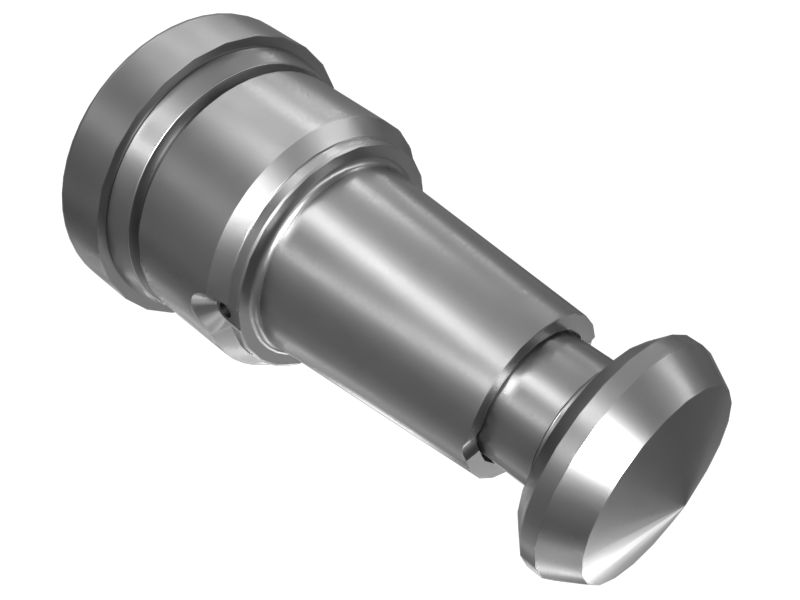

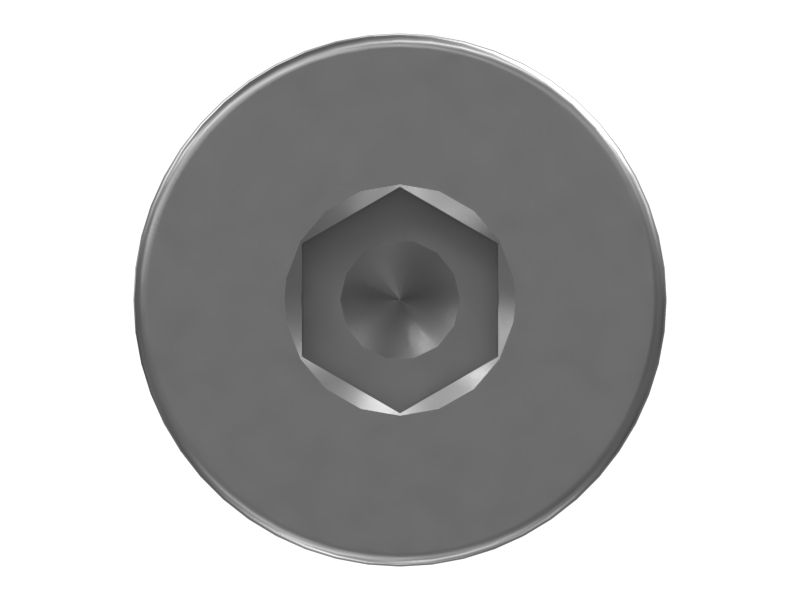

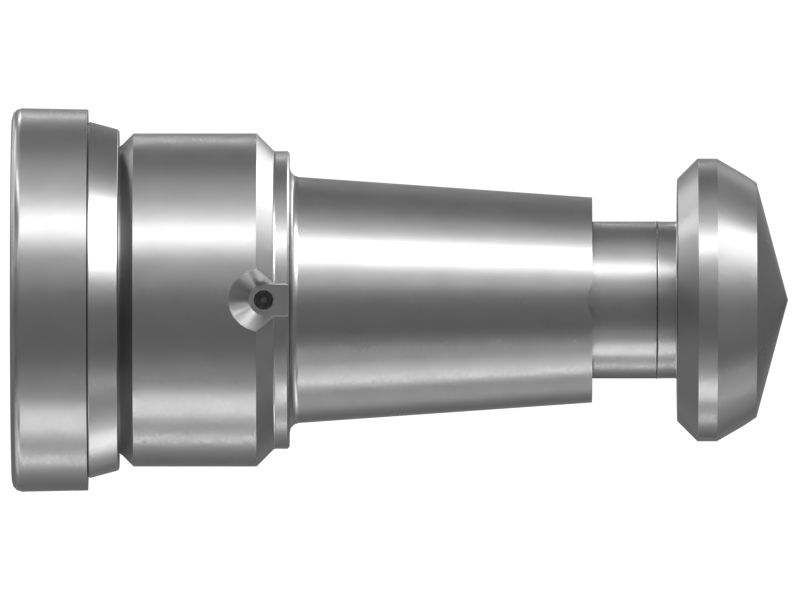

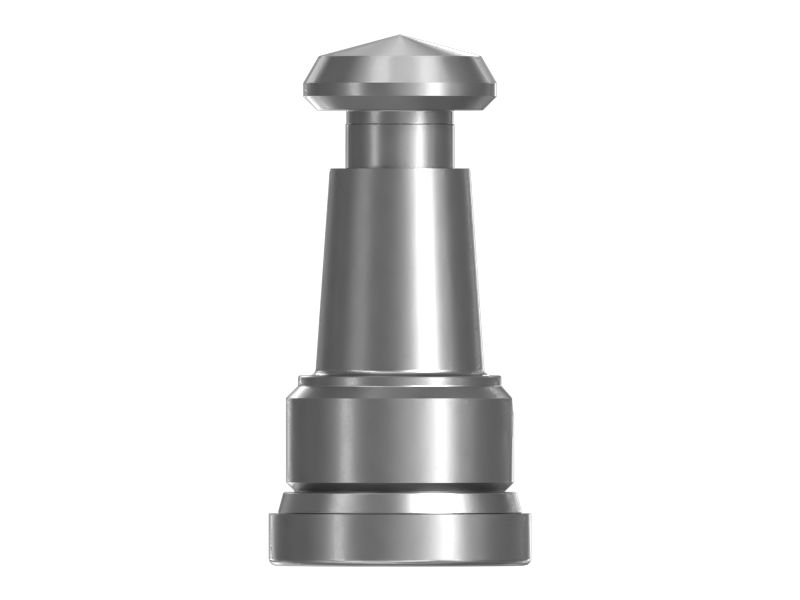

559-8475: Spring Loaded Check Valve

A Spring Loaded Check Valve, also known as a non-return valve, is used to allow fluid to flow in only one direction while preventing reverse flow. It consists of a valve body, a movable check element, and a spring mechanism. The spring mechanism provides the necessary force to keep the check element in the closed position when the pressure on the outlet side is higher than the inlet side. The primary purpose is to automatically open and close in response to the pressure and flow direction of the fluid passing through it.

Attributes:
• Maximum rated flow of the valve is 200 l/min, which provides precise control over the flow rate
• The pressure setting value of the valve is 0.02 MPa, which prevents potential damage to the hydraulic unit

Applications:
A Spring Loaded Check Valve acts as a one-way flow control part, ensuring the proper functioning and safety of hydraulic units by maintaining the desired flow direction and preventing potential damage or malfunction.

• Material: Carbon Steel
