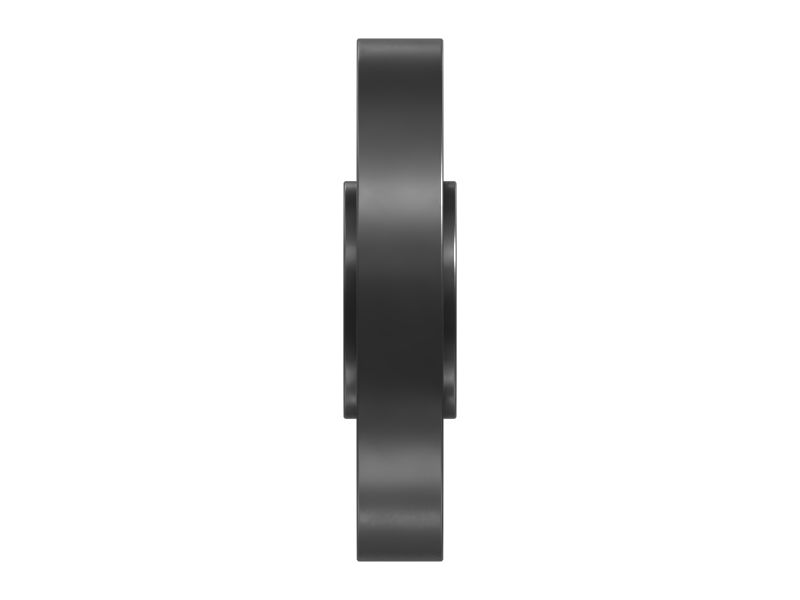

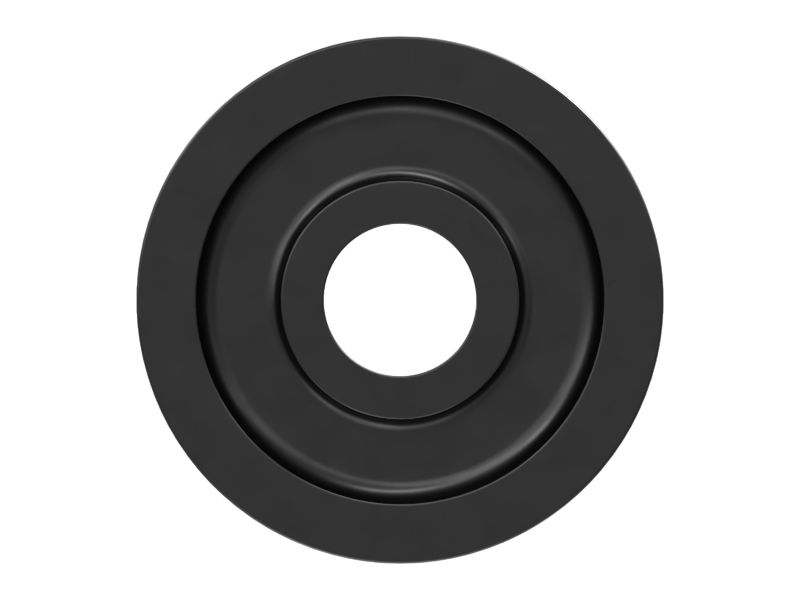

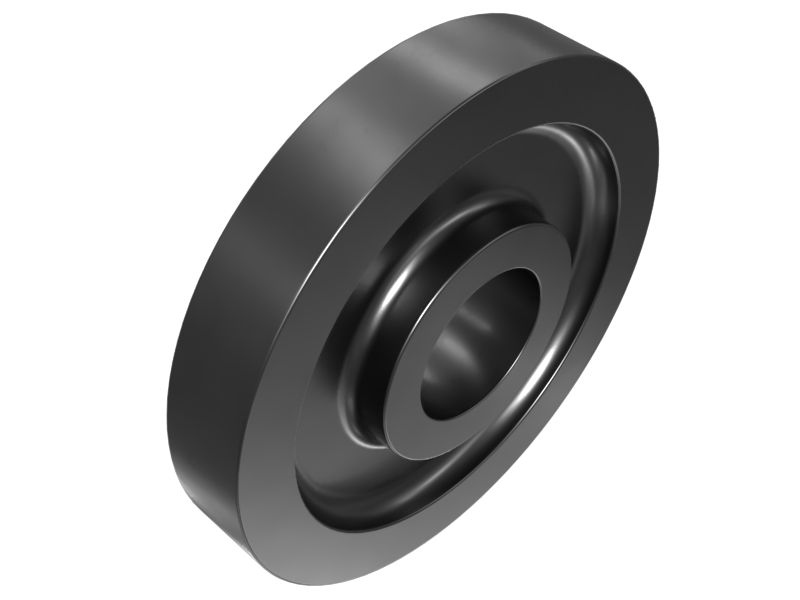

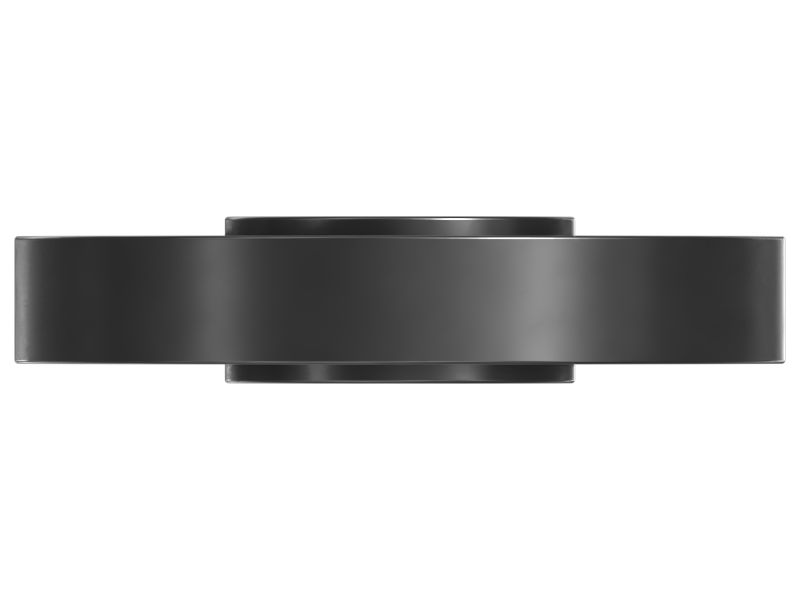

558-9764: 866.6mm Outer Diameter Padlock Sheave

The Padlock Sheave guides and supports cables and ropes, ensuring they remain securely in place during operation. It allows for smooth movement and reduces friction, enhancing the efficiency of lifting tasks. The padlock mechanism provides an added layer of security, preventing the sheave from slipping and dislodging, thus ensuring the safety and stability of the equipment.

Attributes:
• Facilitates secure attachment of a padlock to equipment.
• Provides a robust anchoring point for locking mechanisms.
• Supports high loads without deformation.

Applications:
The Padlock Sheave is located in the lifting and hoisting mechanisms of the equipment, where it guides and secures the cables and ropes, facilitating smooth and safe lifting operations.

• Weight (kg): 475.4

• Weight (lb): 1048.078

• Inner Diameter (mm): 252

• Inner Diameter (in): 9.92

• Outer Diameter (mm): 866.6

• Outer Diameter (in): 34.118

• Width (mm): 142.9

• Width (in): 5.626

• Material: Steel,Carbon Steel

• Machine Side: See Drawing

• Tread Type: Unknown

• Bore Diameter (mm): 252
