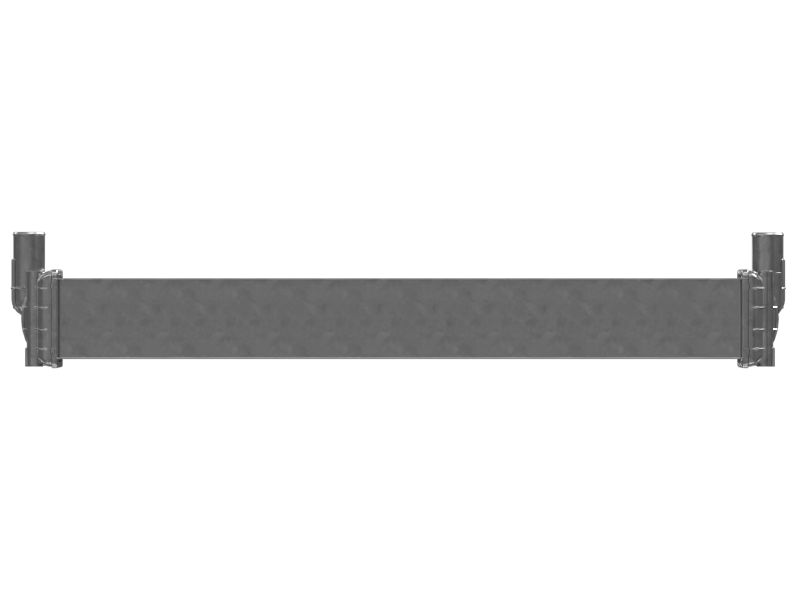

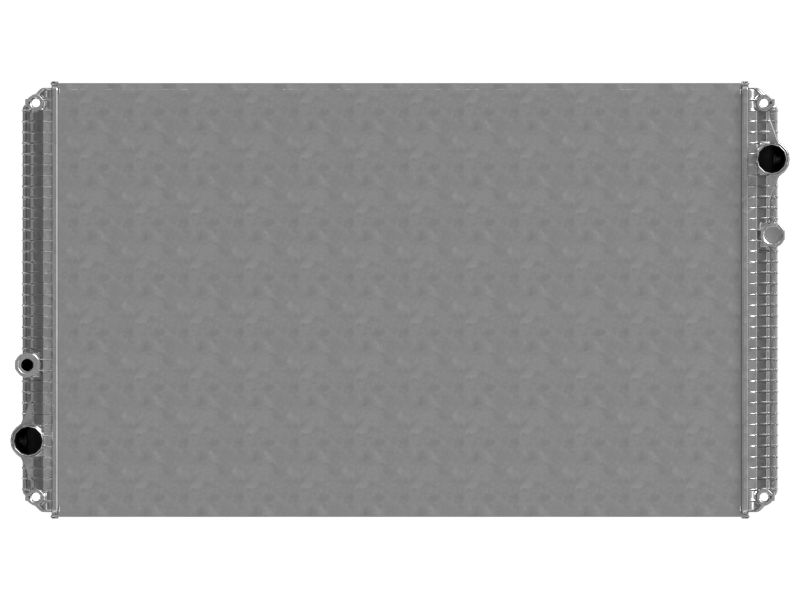

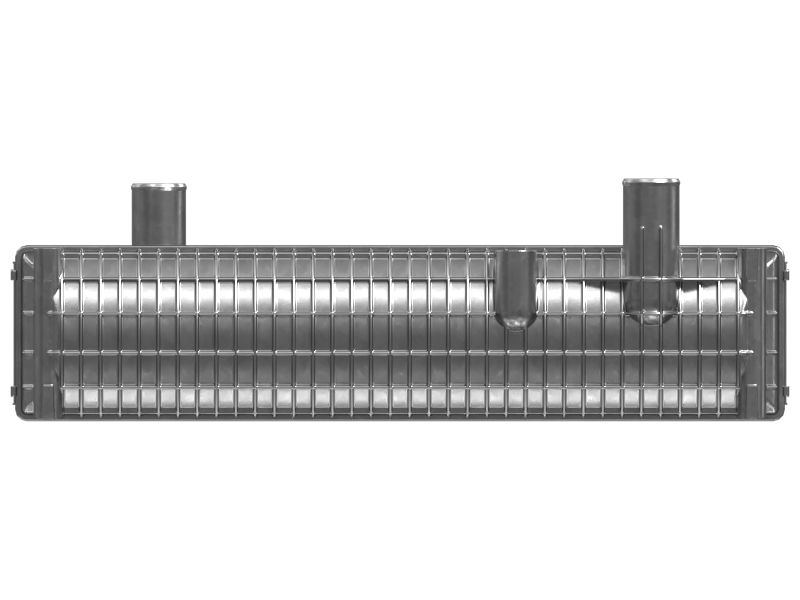

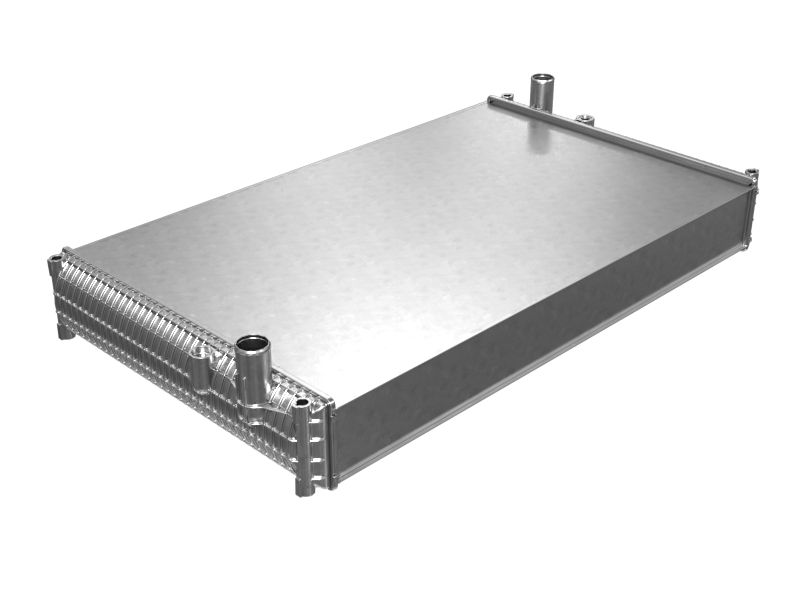

558-4654: Engine Radiator Core

An Engine Radiator Core transfers heat from hot engine coolant to surrounding air. The core consists of air fins with a square wave design, providing increased surface area for heat dissipation. It maximizes the contact between the coolant and the air, enhancing cooling efficiency. Additionally, the core incorporates dimpled tubes as turbulators, which promote turbulence and disrupt the laminar flow, further improving heat transfer. This combination of features enables efficient heat dissipation from the engine coolant.

Attributes:
• Made of 10 square wave fins per inch to offer a good balance between surface area and air circulation
• Made of dimpled tubes to promote better coolant flow and contact with the tube walls for improved heat transfer
• Provided with 23L of internal volume

Applications:
An Engine Radiator Core effectively cools the engine coolant, maintaining optimal operating temperatures and preventing overheating. The cooled coolant then circulates back to the engine, contributing to the overall cooling of the machine's engine.

• Material: Alloy Aluminum
