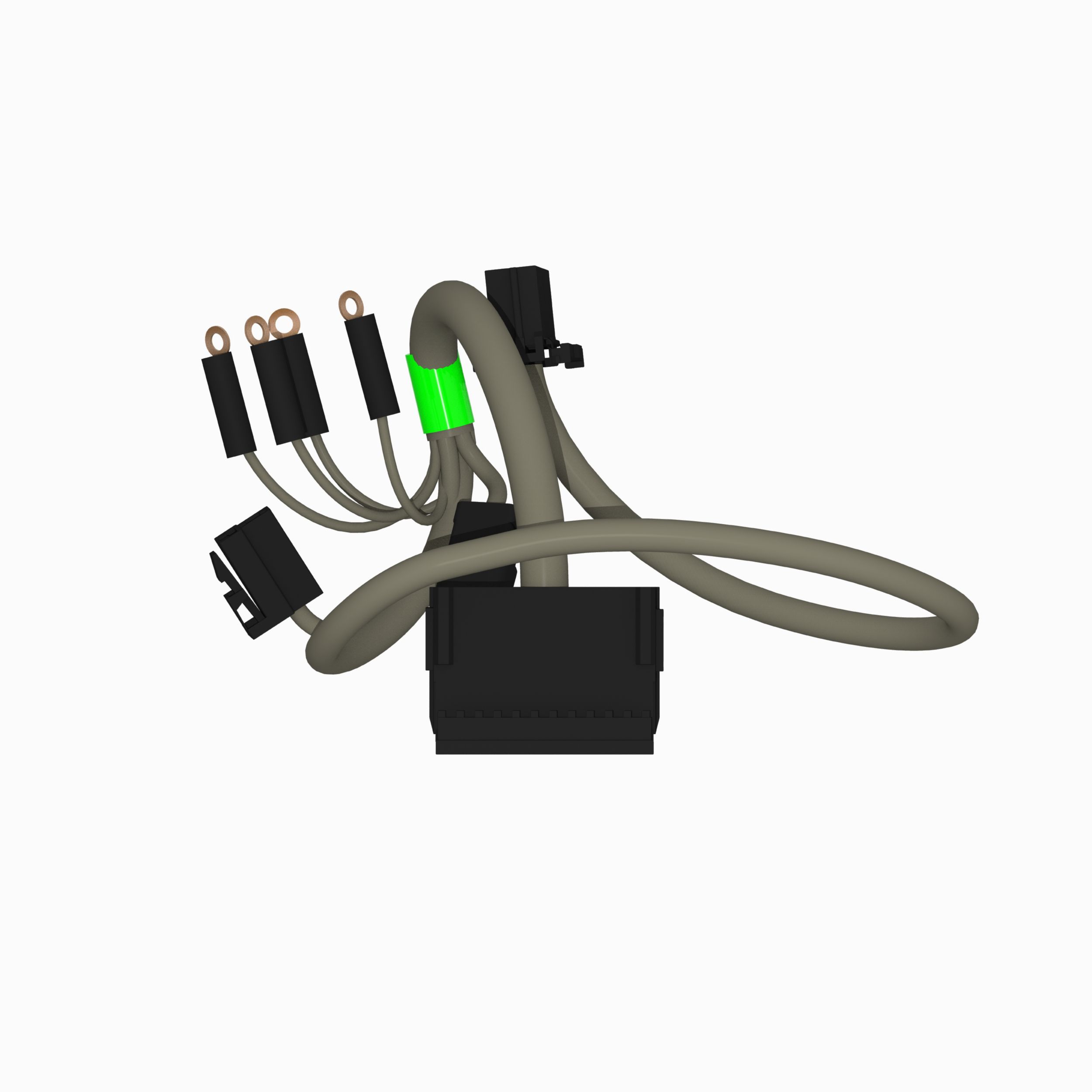

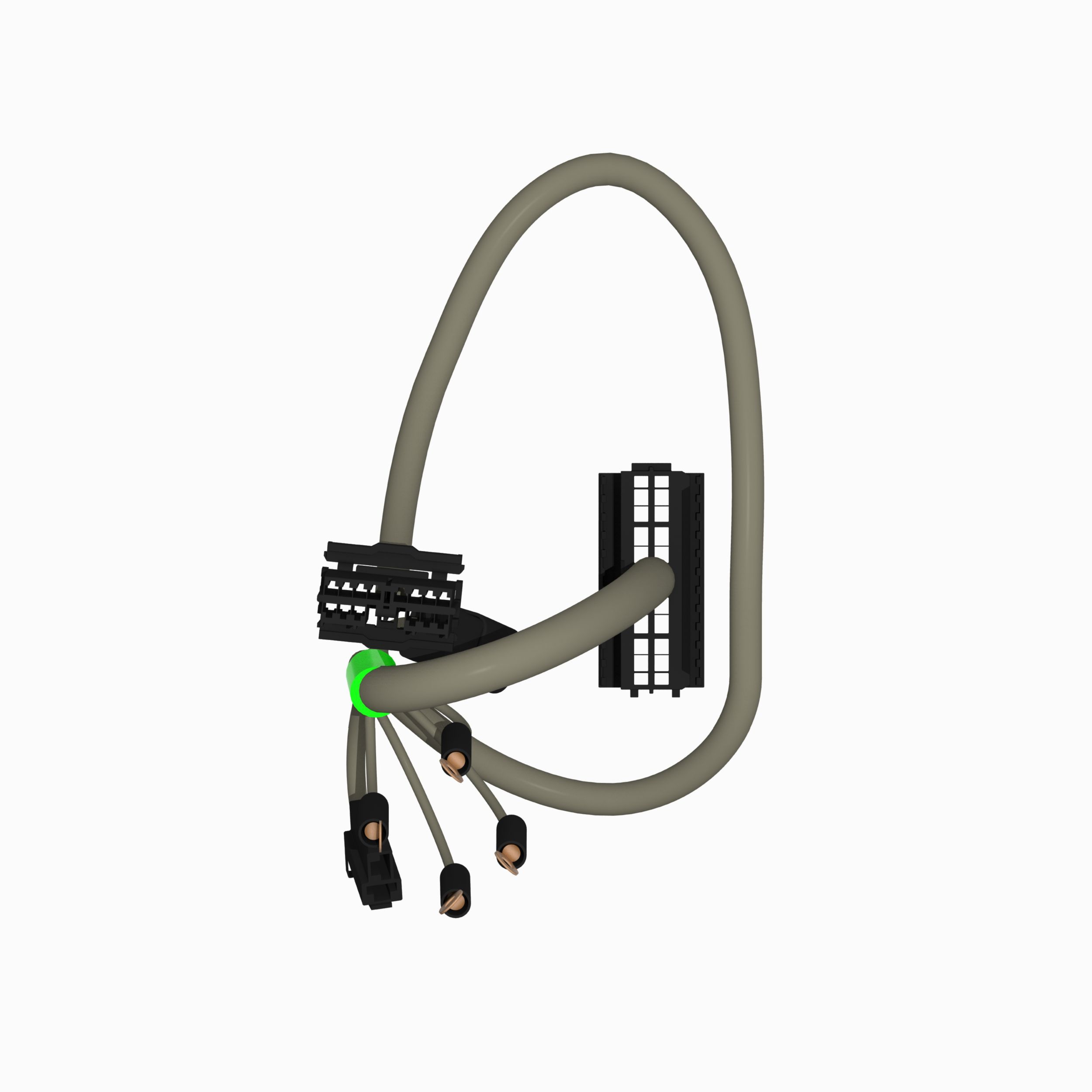

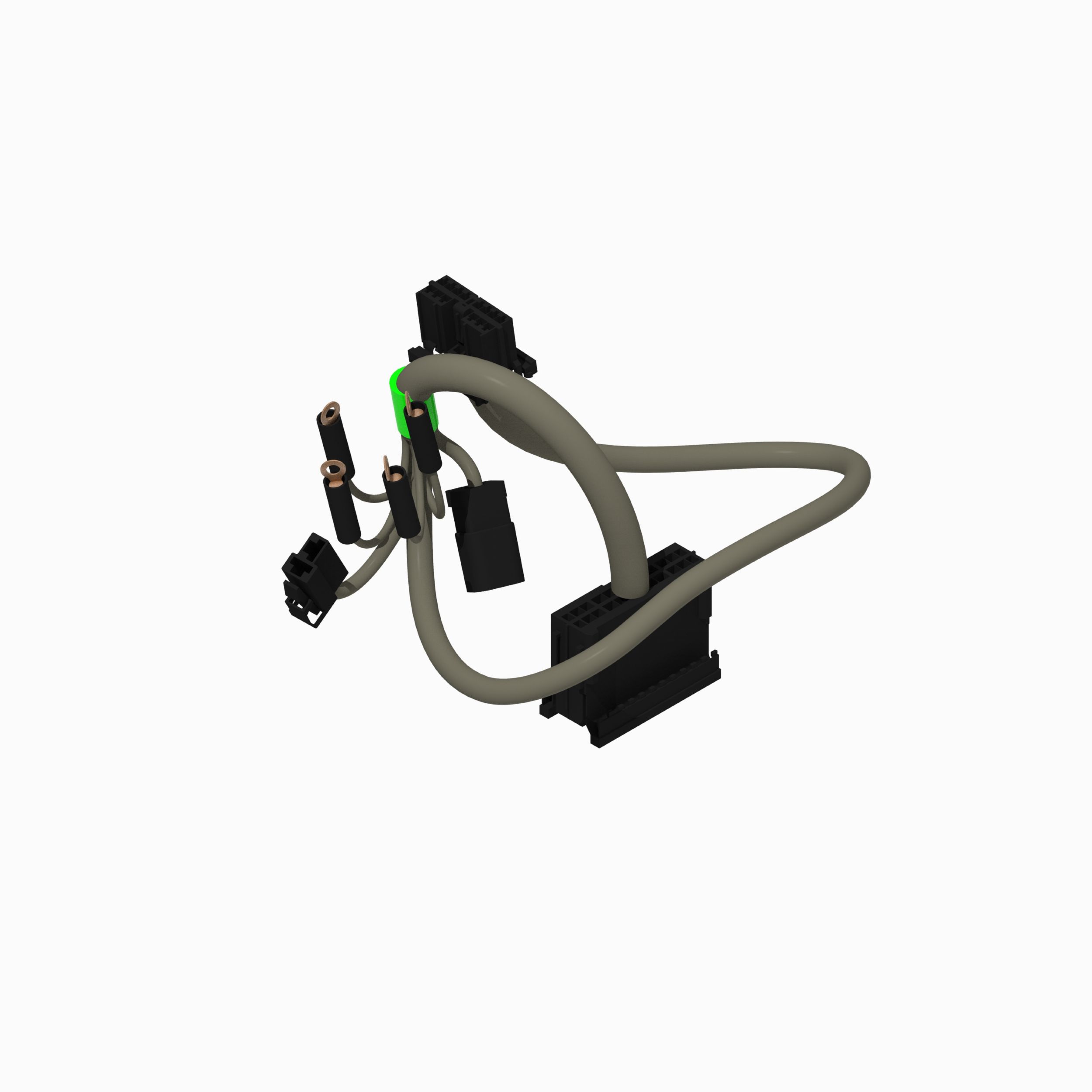

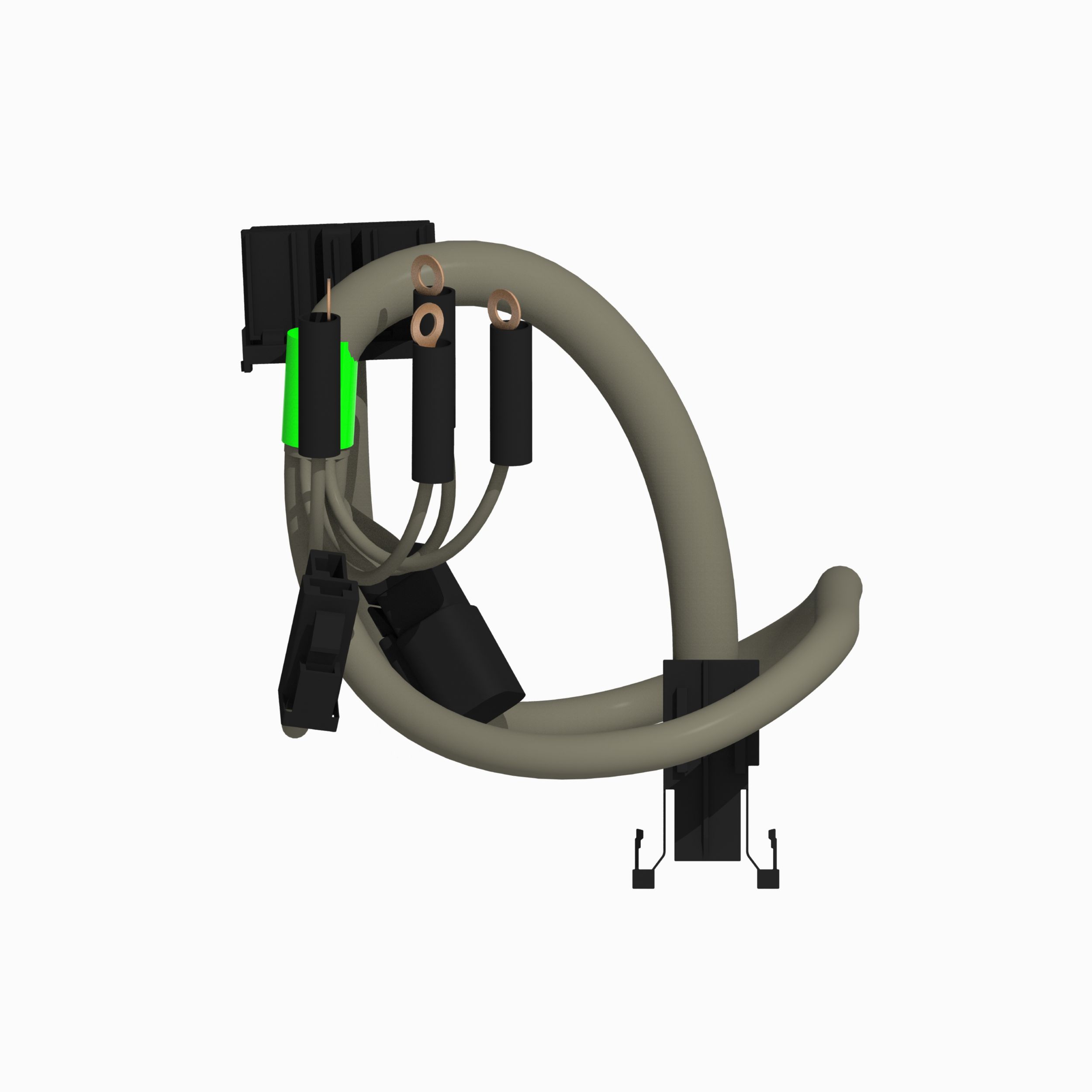

557-5524: Operator Console Panel Harness

The Operator Console Panel Harness is a complex wiring system composed of cables, wires, connectors, and associated components. It extends from the operator's control panel, which may include joysticks, buttons, touchscreens, and other user interface elements, and stretches to the machine's central processing unit and various subsystems. Its primary purpose is to transmit control commands and feedback data between the operator and the machine. This harness ensures that the operator can safely and efficiently control and monitor the machine's operations.

Attributes:
• Protects the cables from environmental factors the harness has protective sheathing.
• Designed for high reliability.
• Connectors are used to interface with the control panel.

Applications:
The Operator Console Panel Harness is located within the operator's cabin or control station of the heavy machine. It runs from the control panel, which is accessible to the operator, and extends through the machine's body to various control systems, including the engine.
