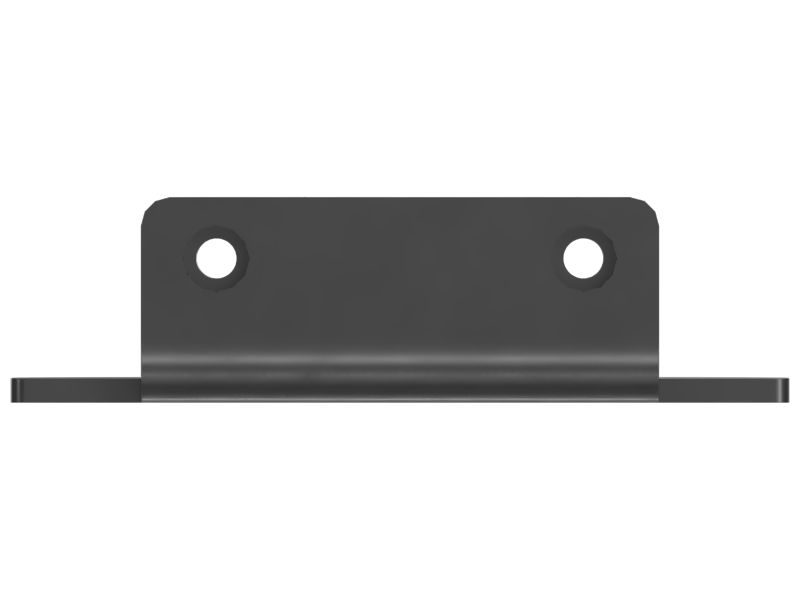

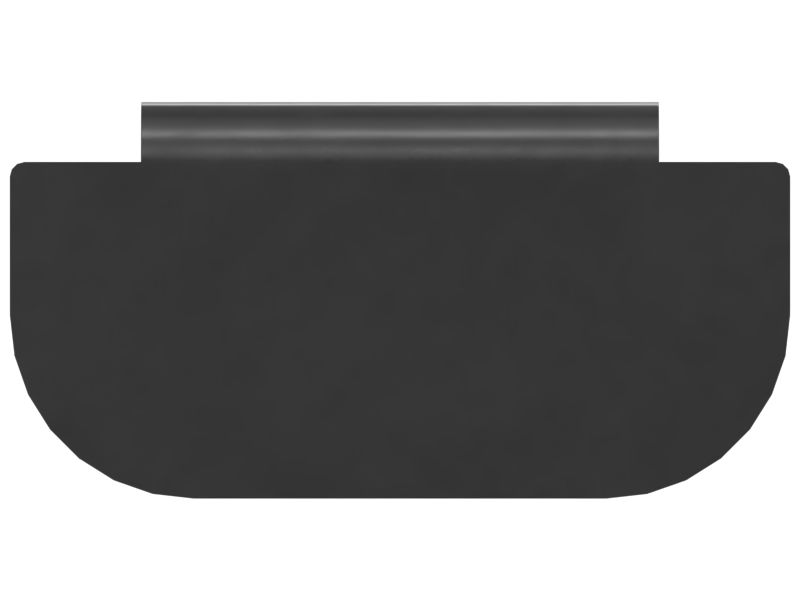

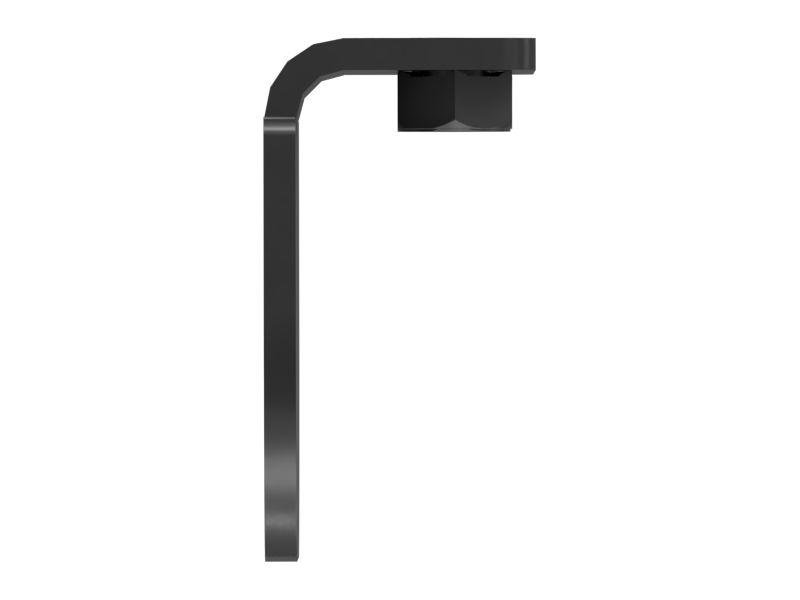

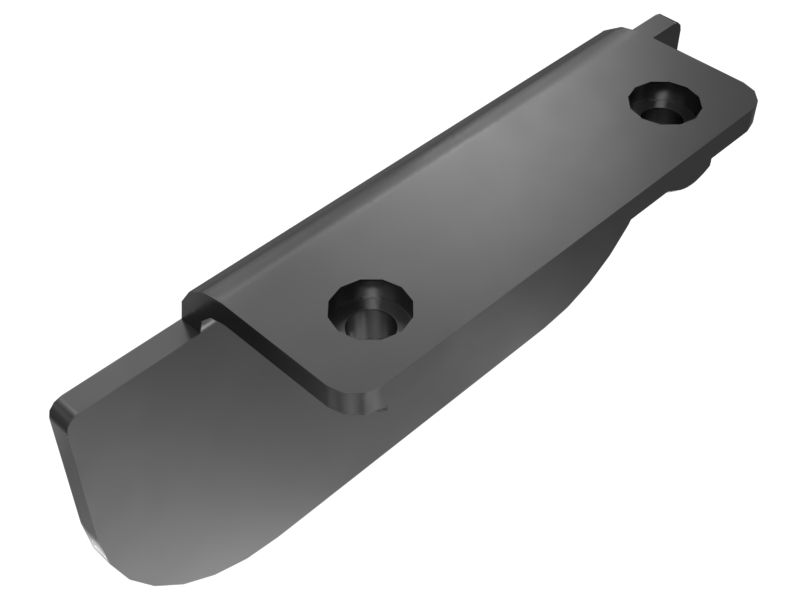

554-3946: Screed Extension Plate Mounting Bracket

The Screed Extension Plate Mounting Bracket is used to securely fasten screed extension plates to the main screed of paving equipment. This bracket maintains stability and alignment, for achieving accurate paving results. When installed, it firmly anchors the extension plates to the main screed, preventing movement and misalignment during operation. This ensures uniform paving across surfaces and enhances the overall efficiency of the paving process.

Attributes:
• Provides structural support to extension plate assemblies.
• Resistant to vibrations and shocks, ensuring it remains properly positioned during operation.

Applications:
The Screed Extension Plate Mounting Bracket is located on the main screed of paving equipment, where it securely attaches extension plates, ensuring even pavement surfaces.

• Weight (kg): 0.631

• Weight (lb): 1.391

• Overall Length (mm): 162

• Overall Length (in): 6.378

• Overall Width (mm): 42.7

• Overall Width (in): 1.681

• Thickness (mm): 5

• Thickness (in): 0.2

• Overall Height (mm): 82.3

• Overall Height (in): 3.24

• Internal Thread: M10x1.5

• Material: Alloy Mixed
