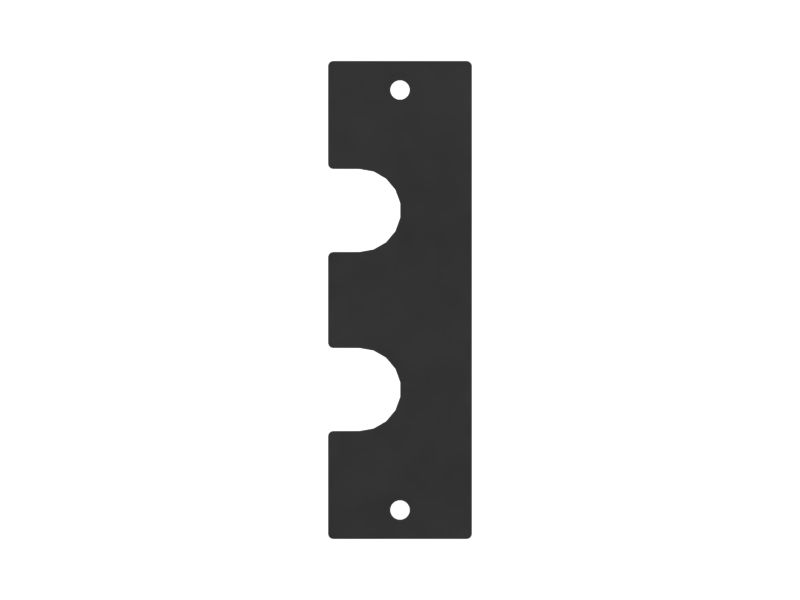

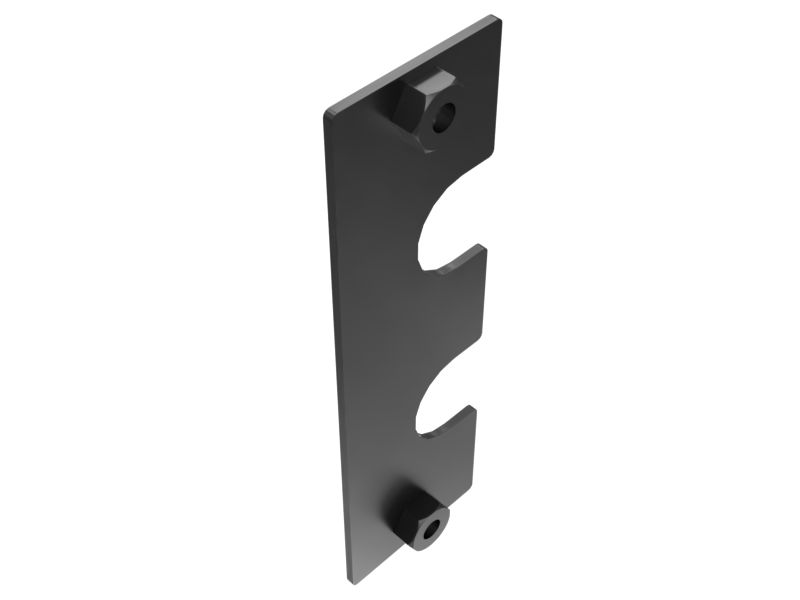

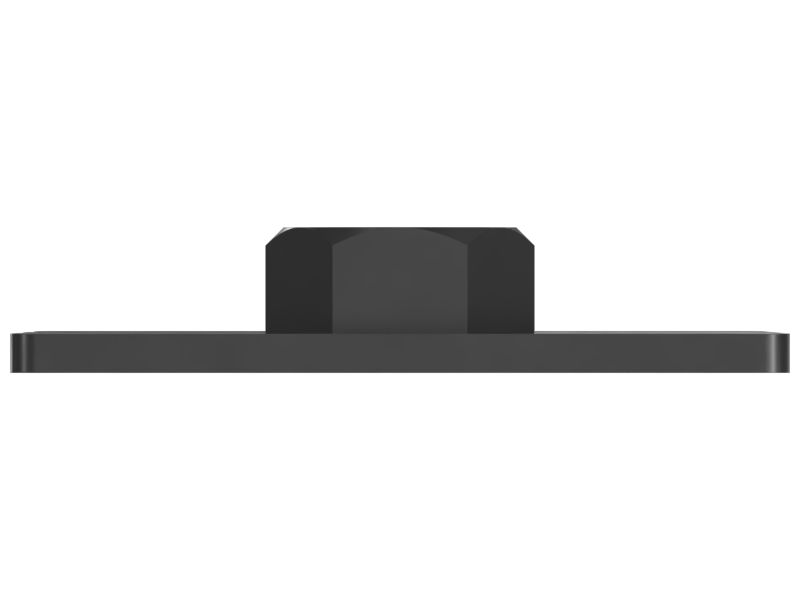

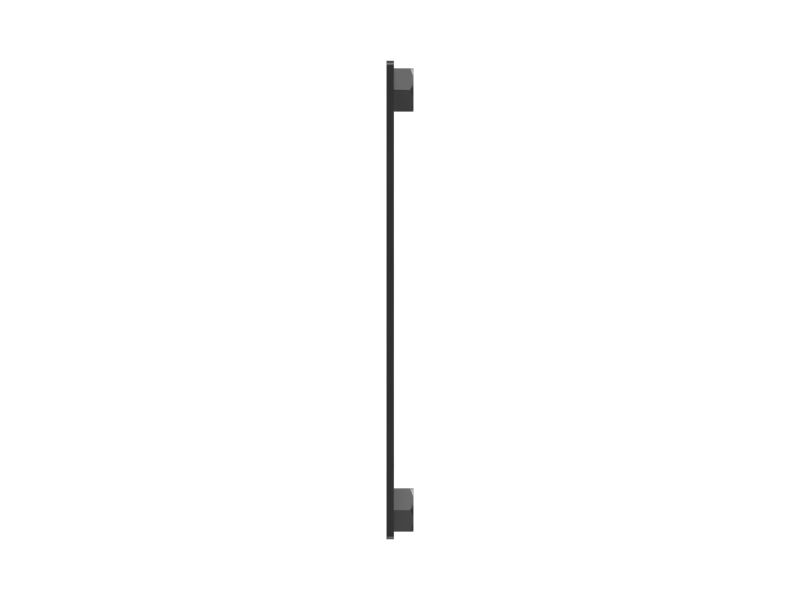

553-9019: Engine Enclosure Bracket Supporting Plate

An Engine Enclosure Bracket Supporting Plate is attached to the bracket assembly in the engine enclosure. It is a flat plate with weld nuts that align with the mounting holes, providing support and stability to mount the bracket. It is made of steel to withstand the forces and vibrations generated during operation without warping and maintain its shape and appearance even under extreme conditions. It is used to reinforce and support the bracket and sheets to protect the engine components and enhance its overall structural integrity.

Attributes:
• Provided with 2 weld nuts to fit the fastener of size M10
• Transfers the forces and stresses generated during machine operation, preventing deformation, sagging, or failure of the bracket
• Helps withstand external impacts, vibrations, and stresses encountered during operation, minimizing the risk of damage or failure

Applications:
An Engine Enclosure Bracket Supporting Plate provides support for holding the bracket, ensuring the proper position of the bracket and sheets within the engine enclosure. By reinforcing the bracket, the supporting plate improves the overall structural integrity of the enclosure.

• Material: Steel,Structural Steel,Alloy Mixed

• Thread: M10x1.5

• Overall Length (mm): 200

• Overall Length (in): 7.874

• Overall Height (mm): 60

• Overall Height (in): 2.362

• Thickness (mm): 3

• Thickness (in): 0.12

• Weight (kg): 0.26

• Weight (lb): 0.582
