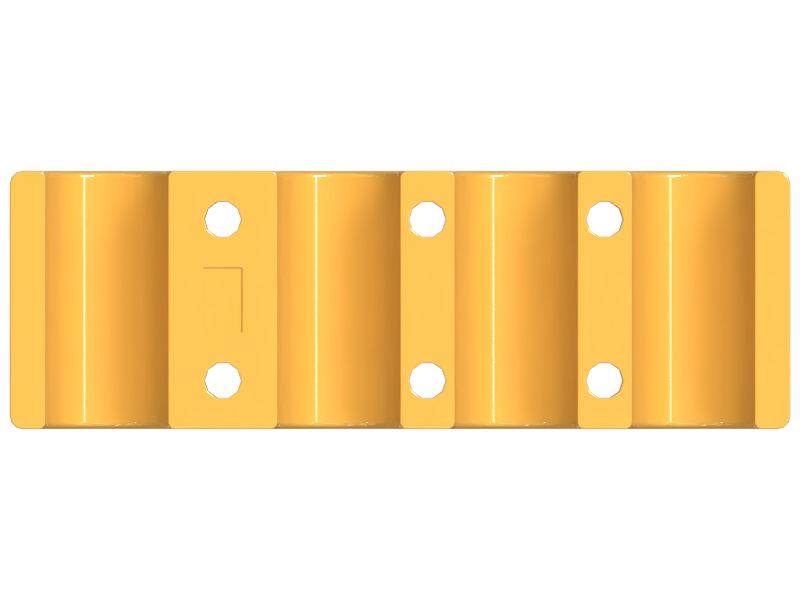

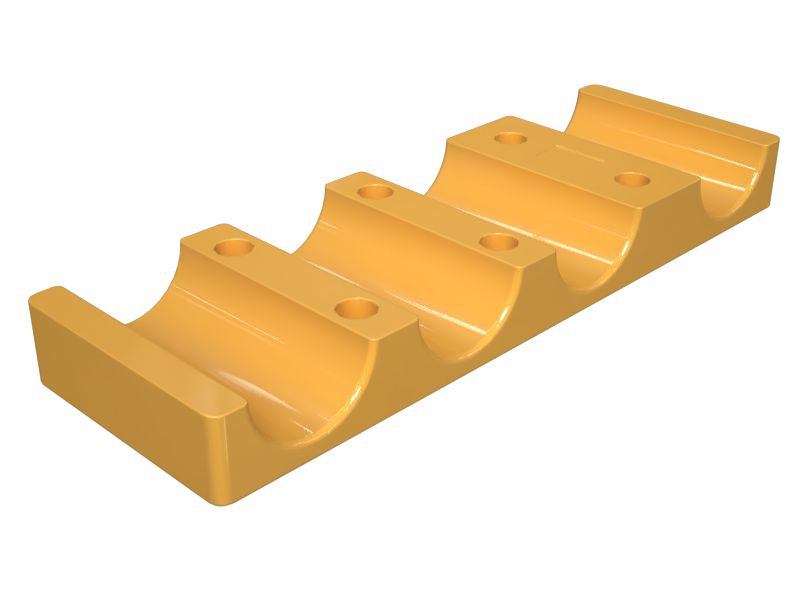

553-8155: 38.2mm Diameter Tube Saddle Clamp

Description:
The Tube Saddle Clamp is a type of fastener used to secure Tubes or other cylindrical objects to a surface or other objects. It consists of one half with thread and the other half that fits around the object being secured. A Single Tube Clamp is placed around the object and tightened with nuts on either end, pressing the object against the plate or saddle and securing it in place.

Attributes:
• Provided with a mounting hole to fit a fastener of size M10.
• Provided a reliable and secure connection between the Tubes and the fitting.
• Manufactured to precise specifications and are built for durability, reliability, and productivity.

Applications:
The Tube Saddle Clamp is used to hold Tubes in Lines of Stick Cylinder system arrangements, mostly used in Cat M315, M317, and M319 Excavators.

• Clamp Width (in): 3.15

• Clamp Width (mm): 80

• Height (in): 0.96

• Height (mm): 24.5

• Length (in): 9.53

• Length (mm): 242

• Material: Plastic,Phenolic Plastic,Polypropylene Plastic
