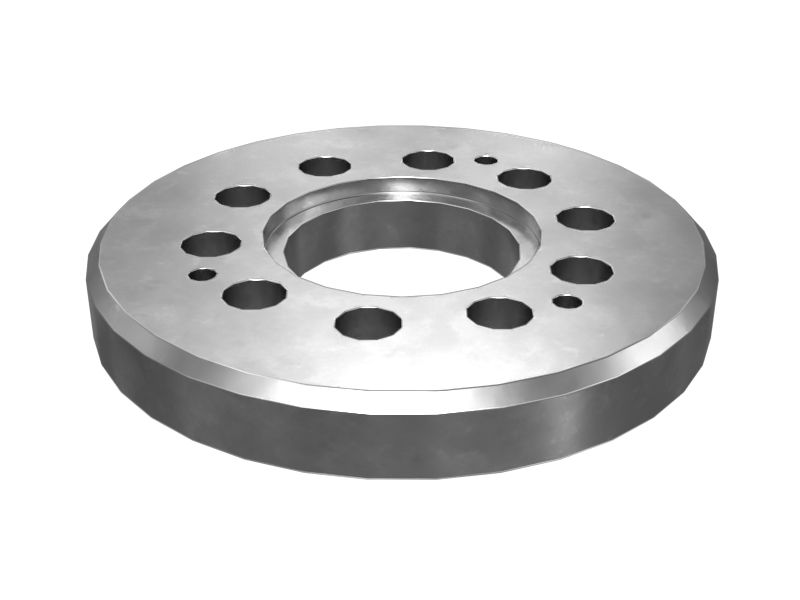

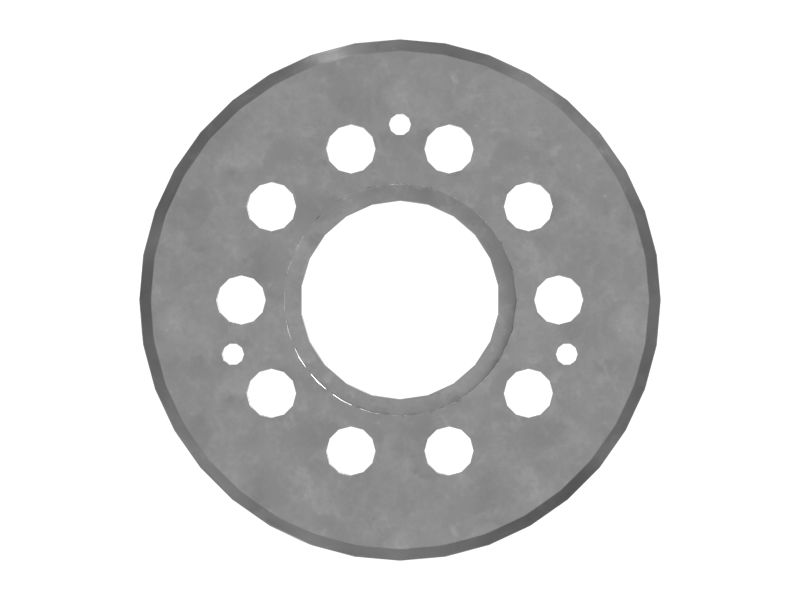

552-4956: Wheel Bearing Retainer Plate

Description:
Plate part # 552-4956 is used to retain the hub and bearing to the wheel spindle in the final drive.

Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine.

Attributes:
• Steel retainer plate
• Outside Diameter: 230 mm (9.06 in)
• Inside Diameter: 88 mm (3.47 in)
• Thickness: 28.5 mm (1.12 in)
• Hole Size: 10 mm (0.39 in) (3X), 22 mm (0.87 in) (10X)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Steel,Carbon Steel

• Outside Diameter (mm): 230

• Inside Diameter (mm): 88

• Thickness (mm): 28.5

• Hole Size (mm): 10 (3X), 22 (10X)

• Outside Diameter (in): 9.06

• Inside Diameter (in): 3.47

• Thickness (in): 1.12

• Hole Size (in): 0.39 (3X), 0.87 (10X)
