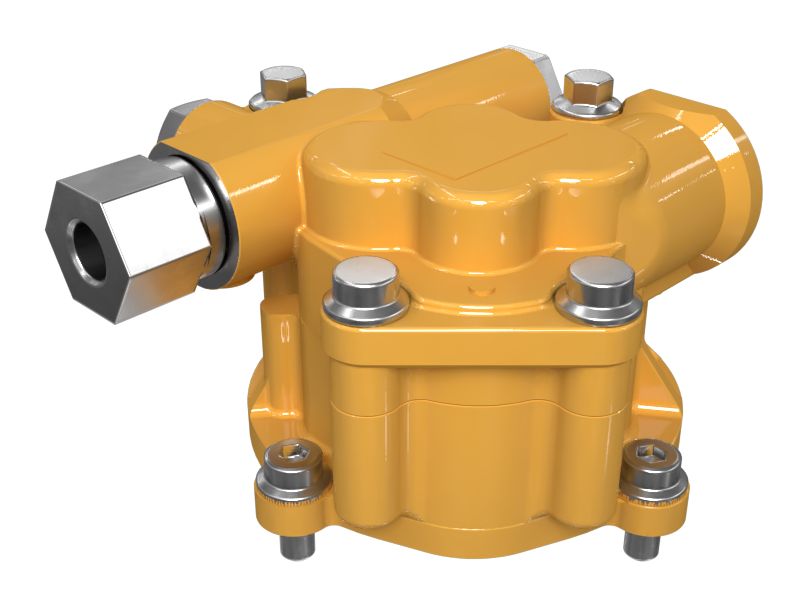

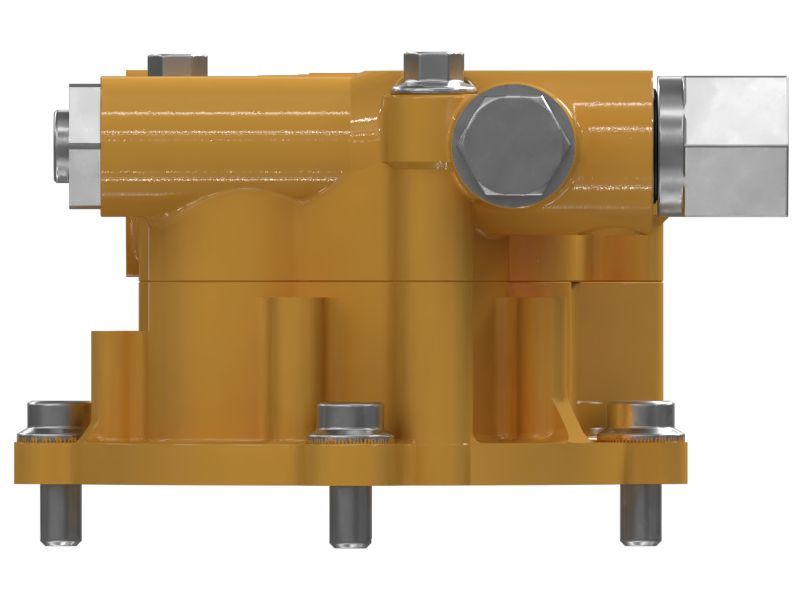

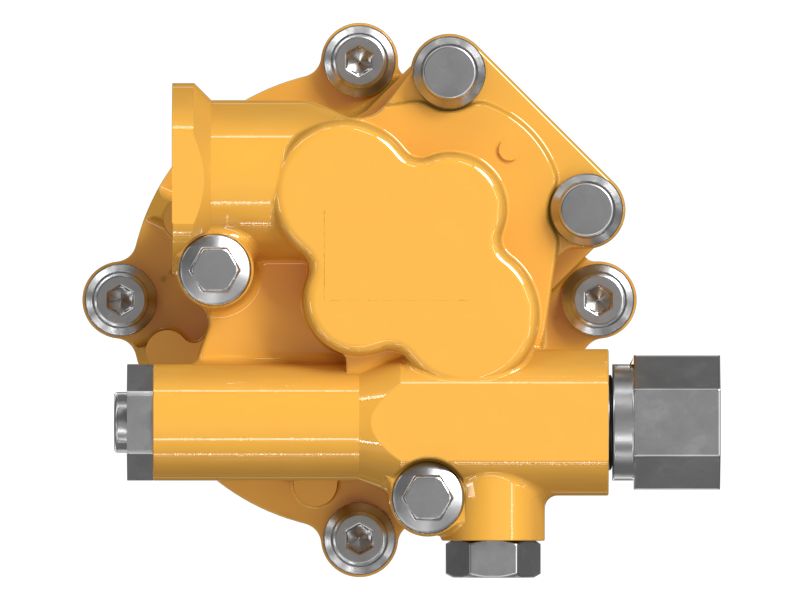

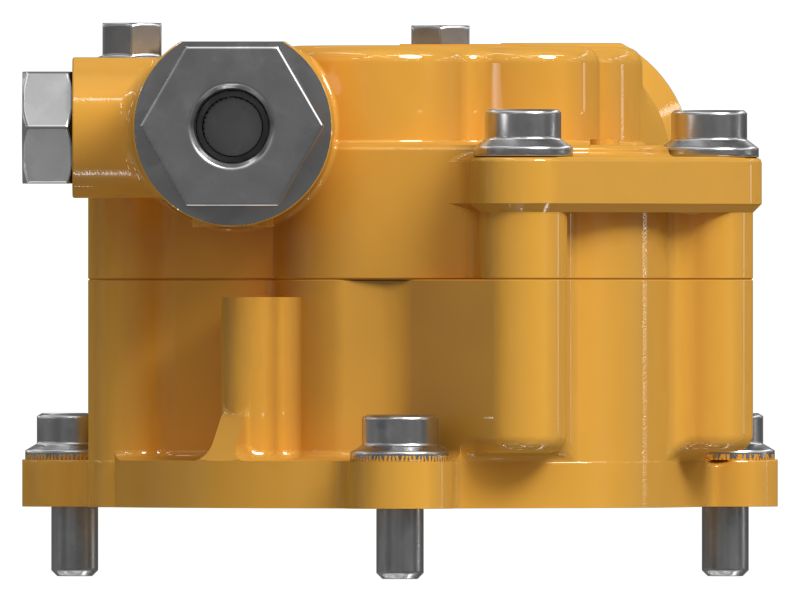

551-6789: Gear pump

Description:
A Gear Pump is a type of positive displacement pump that uses gears to pressurize and move fluid in a hydraulic system. It typically consists of two meshing gears, a drive gear, and a driven gear, which rotate in opposite directions within a tight-fitting housing. As the gears turn, they create a vacuum that draws fluid into the pump and then pressurizes and moves the fluid through the pump and into the hydraulic system.

Attributes:
• Provided with 4 Mounting bolts to fit fasteners of the size of M8 x 1.25
• Delivery port is provided with 3/4 - 16 UNF - 2B adapter
• Suction port is provided with 1 - 1/16 -12UN - 2B adapter

Applications:
A Gear Pump is driven by engine converts mechanical energy into hydraulic energy. It is widely used in main Hydraulic Pump to control the moments of bucket and arm. Mostly used in Cat 320D3, 320D2, 320D2 L, and 323D3 Excavator.

• Overall Height (in): 3.74

• Overall Height (mm): 95

• Overall Length (in): 5.12

• Overall Length (mm): 130

• Overall Width (in): 4.37

• Overall Width (mm): 111

• Weight (kg): 1.5

• Weight (lb): 3.31

• Material: Carbon Steel
