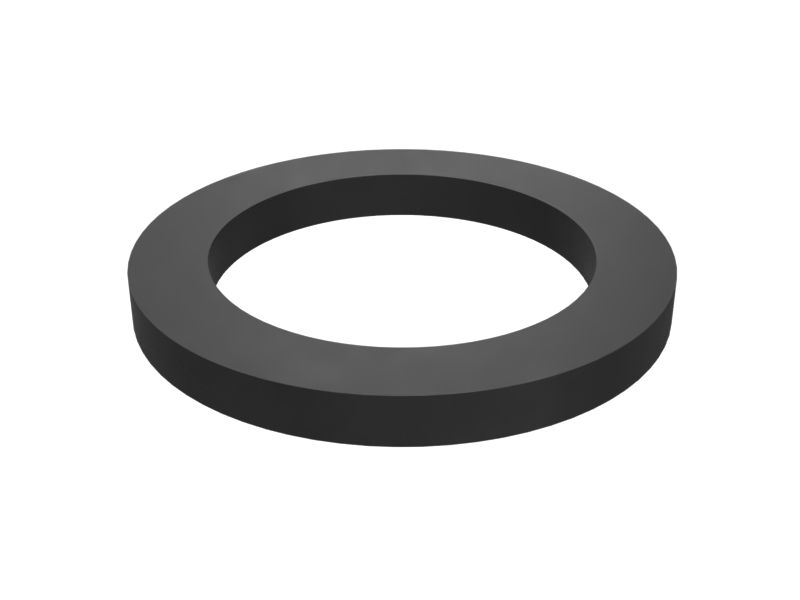

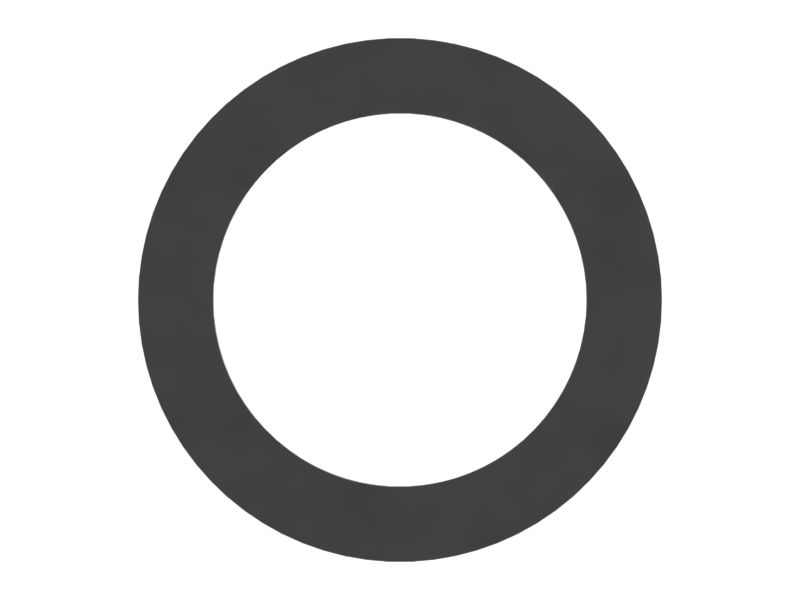

550-5493: 100mm Ring Seal

Description:
A Ring Seal is a type of mechanical seal used to prevent leakage between two joined surfaces. It is a ring-shaped component typically made of an elastomeric material, such as rubber, silicone, Viton, and Teflon. Ring Seals are designed to fit into a groove or recess in one of the mating surfaces and compress against the other surface when the two parts are assembled.

Attributes:
• Function effectively across a wide temperature range.
• Maintain their shape and sealing properties over time.

Applications:
A Ring Seal acts as a barrier that inhibits fluid from leaking out of the swing drive unit, mostly used in CAT 320D2 L, 320D2, 320D3 GC, 320D3, and 323D3 Excavators.

• Inner Diameter (in): 3.94

• Inner Diameter (mm): 100

• Material: Rubber,Fluoroelastomer (FKM) Rubber

• Outer Diameter (in): 5.51

• Outer Diameter (mm): 140

• Weight (kg): 0.12

• Weight (lb): 0.27

• Width (in): 0.51

• Width (mm): 13
