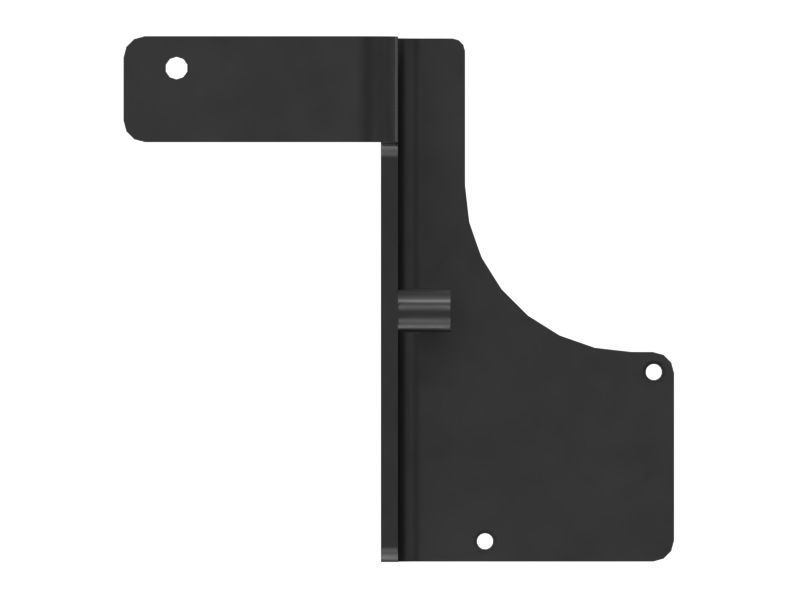

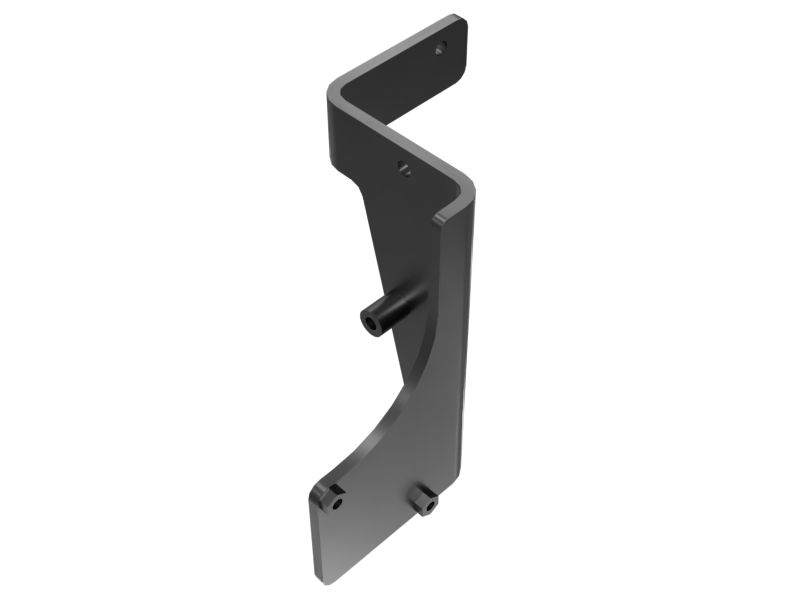

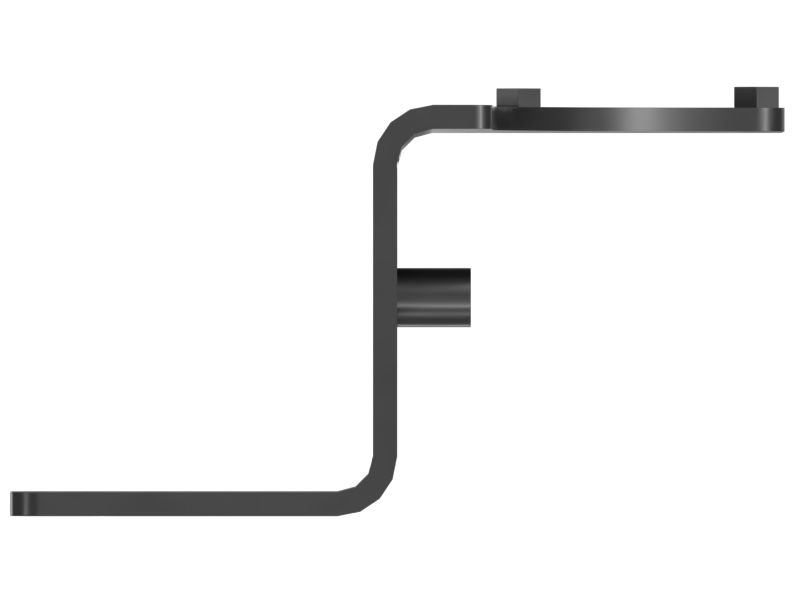

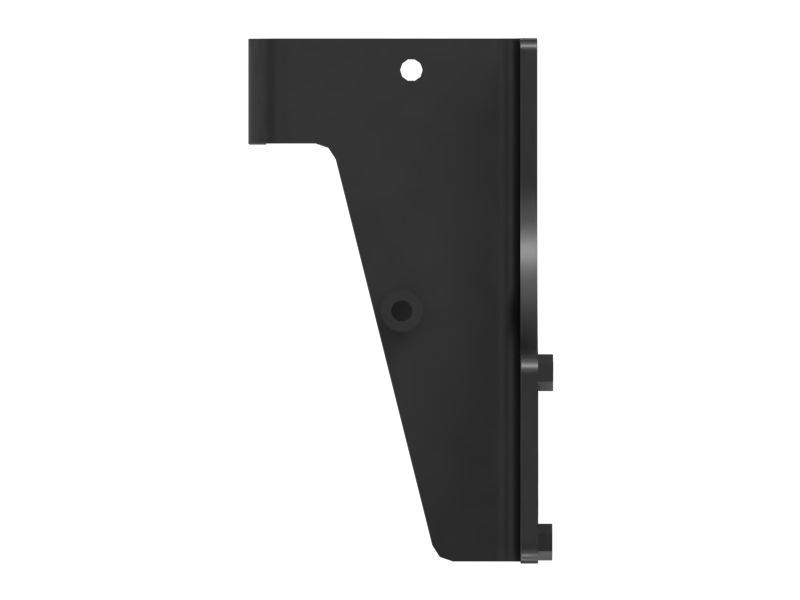

549-6146: 8mm Thick Hydraulic Accumulator Support Bracket

The Hydraulic Accumulator Support Bracket is used to hold the charged pilot accumulator and pilot control valve securely in place. This bracket maintains the stability and integrity of these components, in harsh working environments. Its design ensures that the hydraulic system components remain securely fastened, reducing the risk of damage, and maintaining optimal performance.

Attributes:
• Ensures structural integrity of valves and the accumulator.
• Supports the proper weight distribution and positioning of the accumulator.
• Ensures proper alignment by resisting the vibrations.

Applications:
The Hydraulic Accumulator Support Bracket is located within the hydraulic system mounted in a position that allows it to securely hold the charging accumulator, and control valves, preventing movement and ensuring stable operation.

• Weight (kg): 2.847

• Weight (lb): 6.277

• Overall Length (mm): 262

• Overall Length (in): 10.315

• Overall Height (mm): 250

• Overall Height (in): 9.84

• Overall Width (mm): 138

• Overall Width (in): 5.433

• Hole Size (mm): 11

• Hole Size (in): 0.43

• Thickness (mm): 8

• Thickness (in): 0.32

• Internal Thread: M10x1.5

• Material: Alloy Mixed
