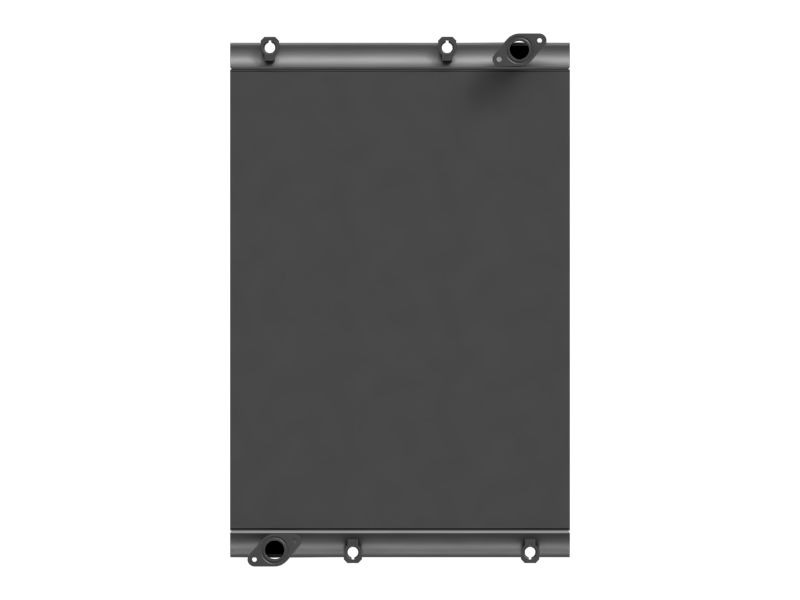

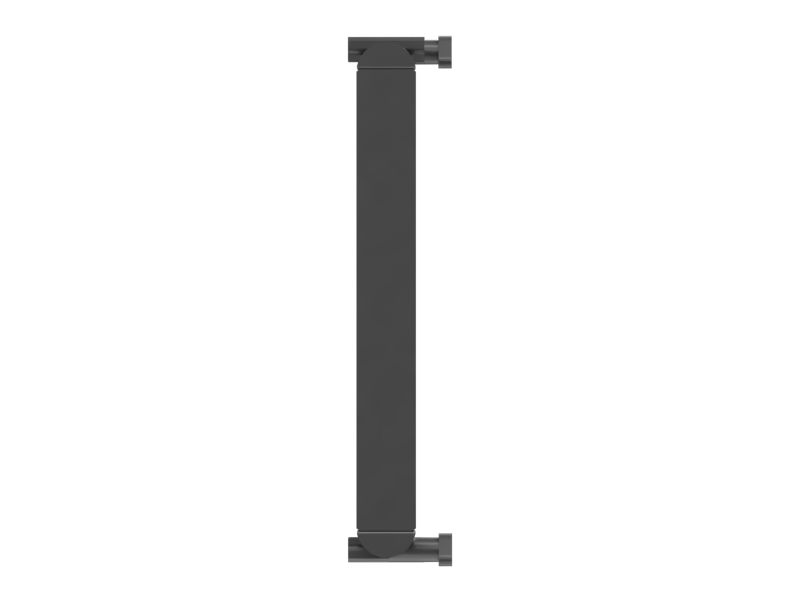

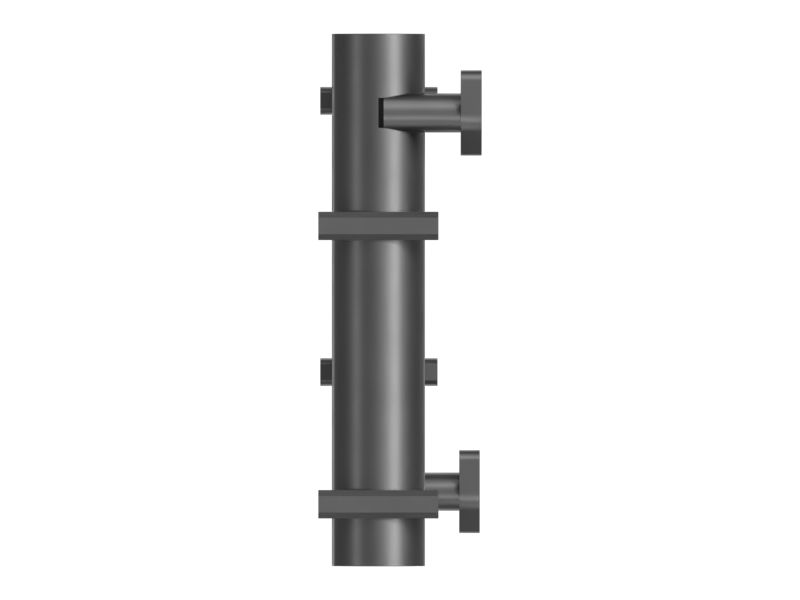

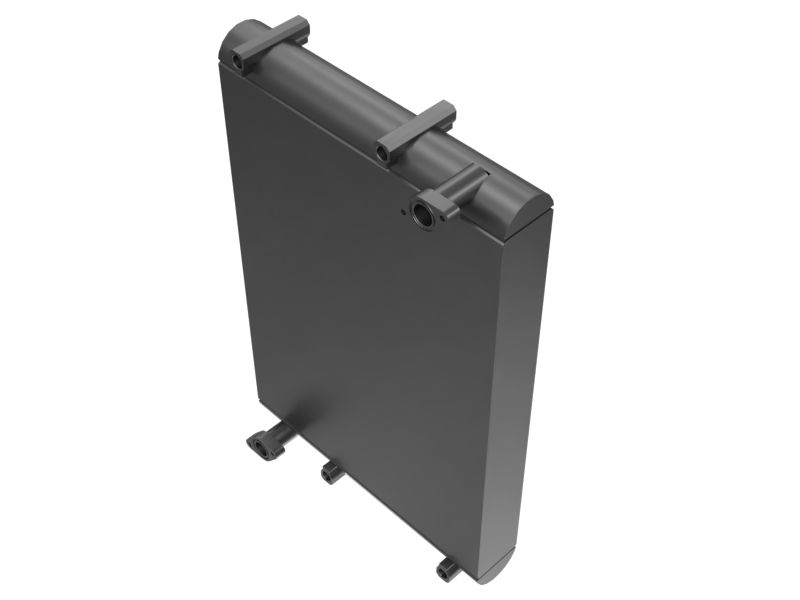

547-6167: Oil Cooler Core

An Oil Cooler Core is used to regulate and maintain the temperature of the Hydraulic fluid circulating within the hydraulic unit. It consists of a series of fins, which helps to maximize the contact area between the Oil and the surrounding environment, facilitating effective heat transfer. Hot Hydraulic Oil from the Hydraulic unit flows through these tubes while cooling air or a separate coolant medium passes over the external surface of the tubes. This arrangement allows for the transfer of heat from the Hydraulic Oil to the surrounding air.

Attributes:
• Air flow rate and Oil flow rate of the Oil Cooler Core are 170 kg/min and 448 L/min, which promotes efficient heat transfer
• Prevent damage caused by overheating and reduce the risk of failure

Applications:
An Oil Cooler Core acts as a heat exchanger for the Hydraulic Oil, facilitating the transfer of heat from the Oil to the surrounding environment.

• Material: Alloy Aluminum
