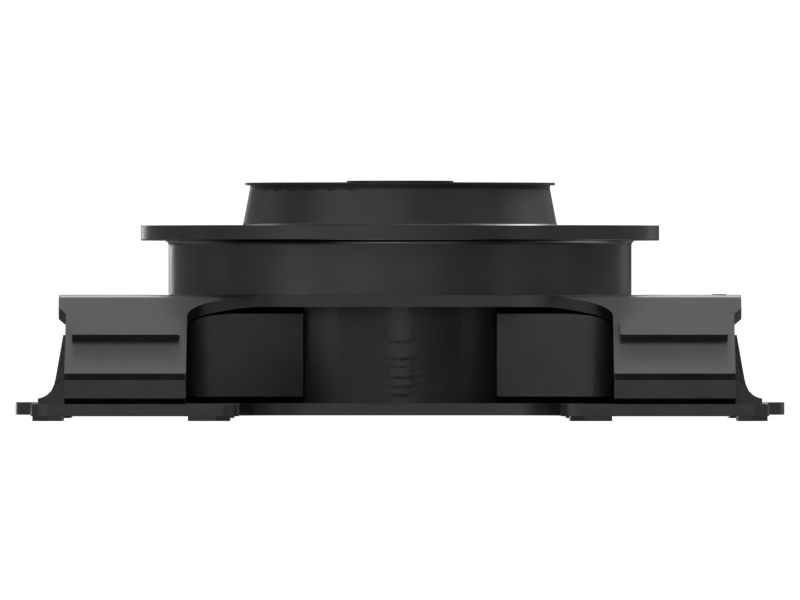

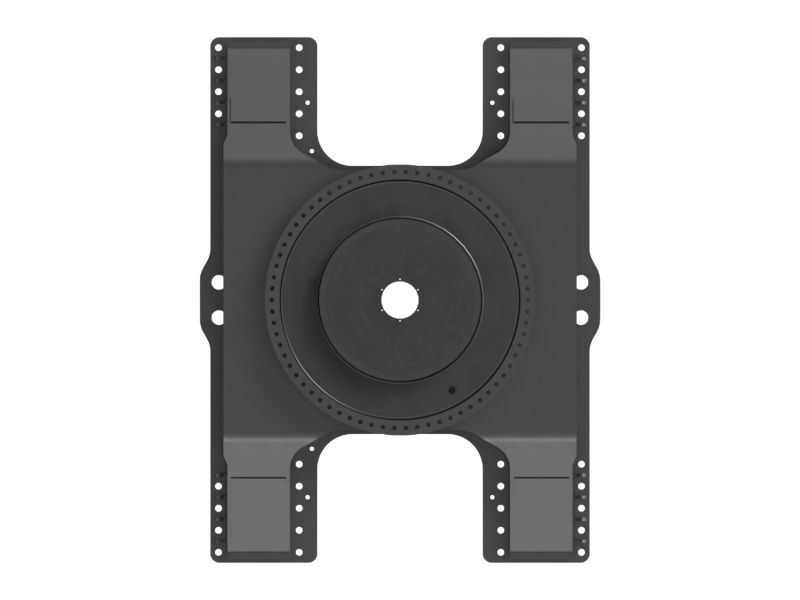

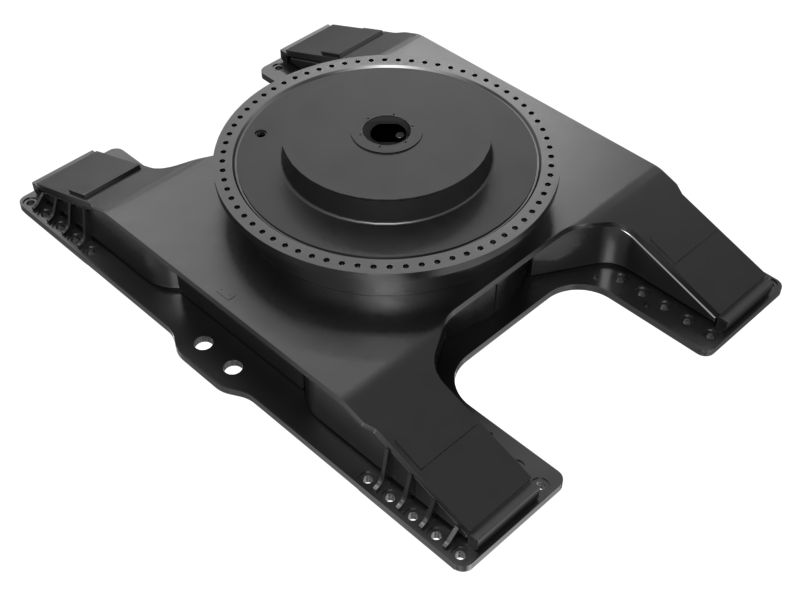

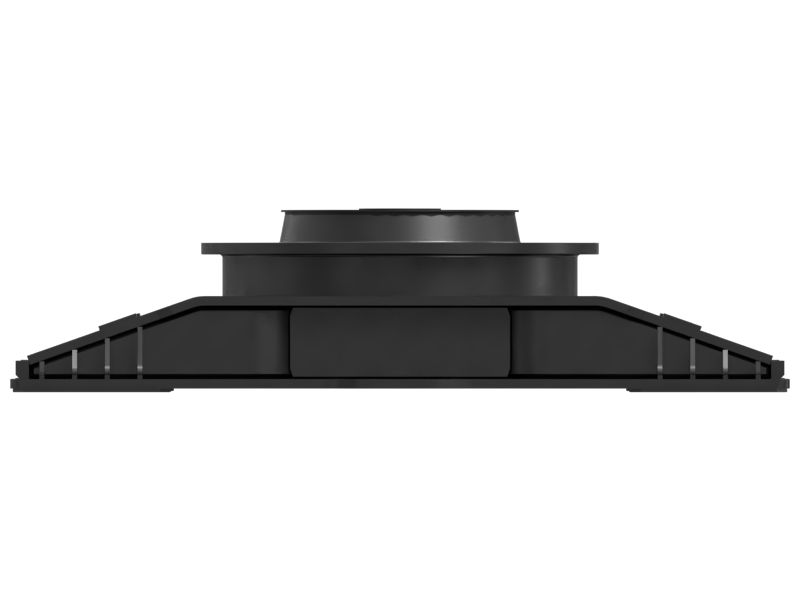

545-9611: Undercarriage Cab Frame

An Undercarriage Cab Frame supports and encloses necessary undercarriage components such as the track system, final drives, and related hydraulic systems. It provides stability and structural integrity to the entire equipment, ensuring durability and reliability in operational conditions. It withstands loads and impacts while maintaining alignment and balance of the undercarriage components to enhance overall equipment performance and longevity.

Attributes:
• Supports the alignment and positioning of undercarriage components.
• Ensures stability during operation on uneven terrain.
• Resistant to vibrations and shocks, ensuring it remains properly positioned during operation.
• Distributes the weight evenly across the undercarriage.

Applications:
An Undercarriage Cab Frame is located at the base of the equipment, supporting and enclosing the undercarriage components like tracks, final drives, and hydraulic systems to ensure stability and operational efficiency.

• Weight (kg): 3339

• Weight (lb): 7361.235

• Overall Length (mm): 2270

• Overall Length (in): 89.37

• Overall Width (mm): 704

• Overall Width (in): 27.717

• Overall Height (mm): 2980

• Overall Height (in): 117.323

• Hole Size (mm): 26, 11

• Hole Size (in): 1.024, 0.433

• Material: Alloy Steel
