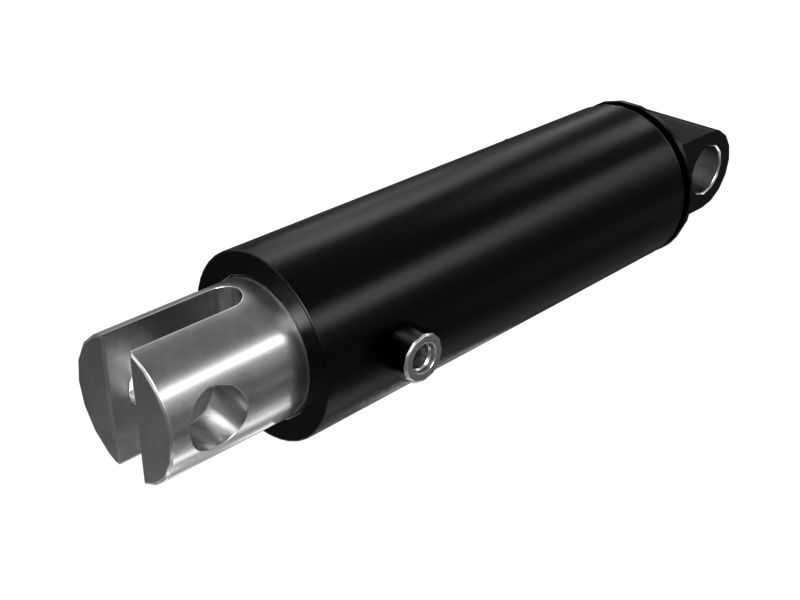

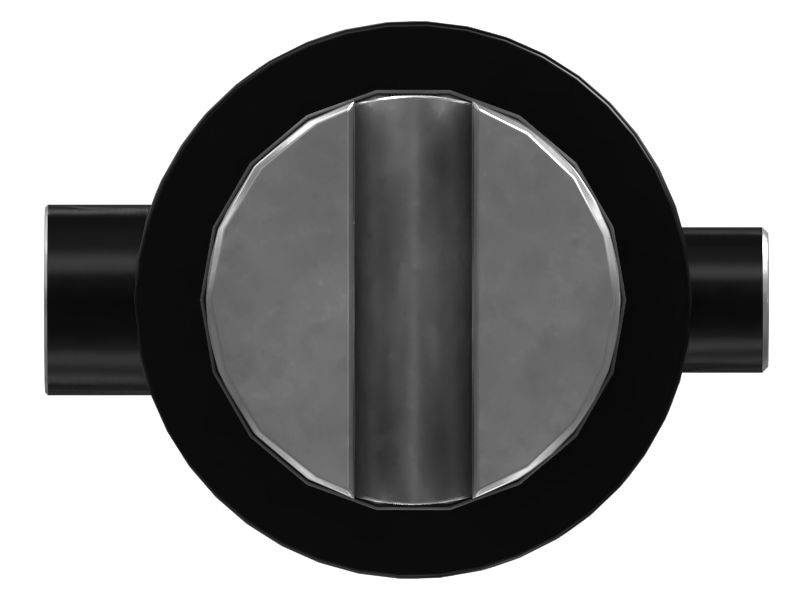

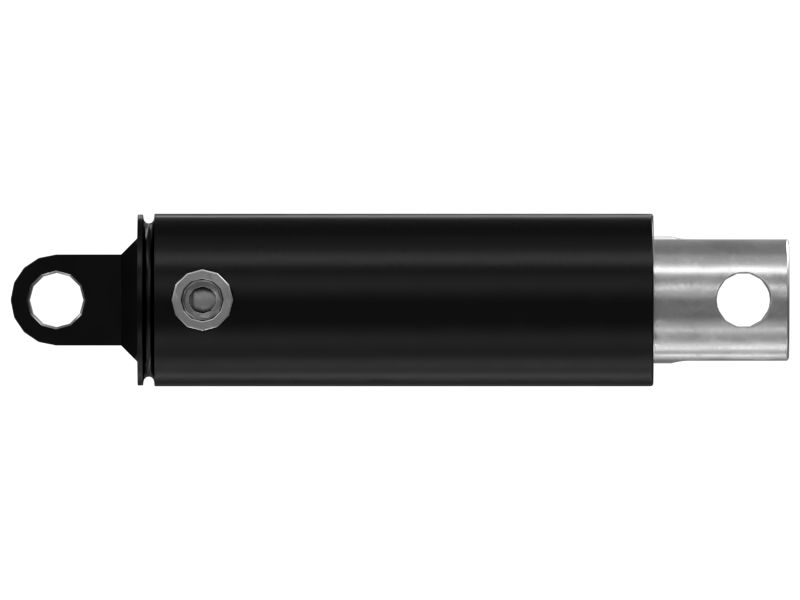

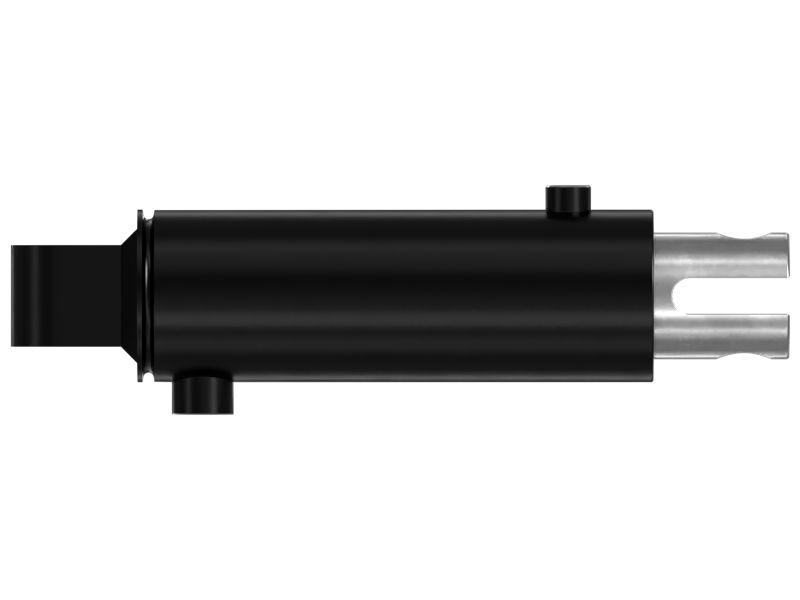

545-9417: 69.85mm Bore Diameter Track Tensioner Cylinder

A Track Tensioner Cylinder is used to adjust and maintain the tension of the tracks in heavy machinery. The cylinder can be extended or retracted to adjust the tension in the tracks. Proper tension is crucial for maintaining stability, traction, and track longevity. As tracks and undercarriage components wear over time, the tensioner cylinder can compensate by adjusting the tension to keep the tracks at the optimal tension level.

Attributes:
• Hydraulic operation for efficiency.
• Controls movement and positioning of undercarriage components.
• Integral for equipment stability and mobility.
• Nominal operating pressure is 140 bar.
• Maximum operating pressure is 160 bar.
• Cylinder burst safety factor is 6:1 @ 140 bar.
• Cylinder loading safety factor is 78:1 @ 140 bar.
• Cylinder Surface is semi-gloss black paint.

Applications:
A Track Tensioner Cylinder is located in the undercarriage of the equipment close to the tracks it is responsible for tensioning.

• Material: Carbon Steel
