ПЕРЕХОДНОЙ КОЛЕНЧАТЫЙ ПАТРУБОК

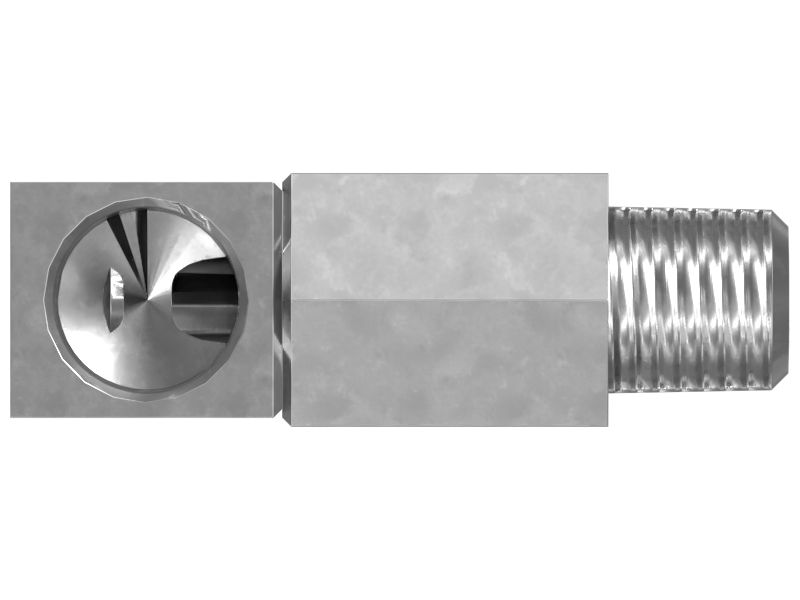

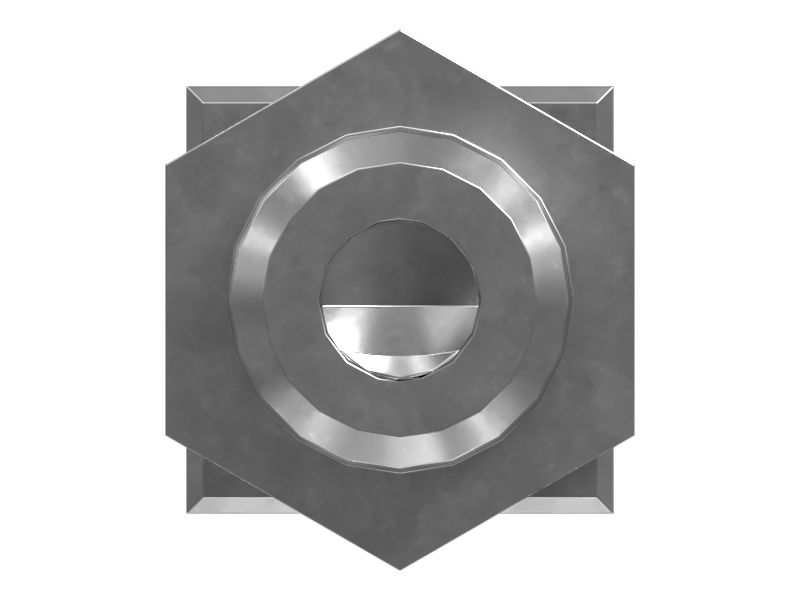

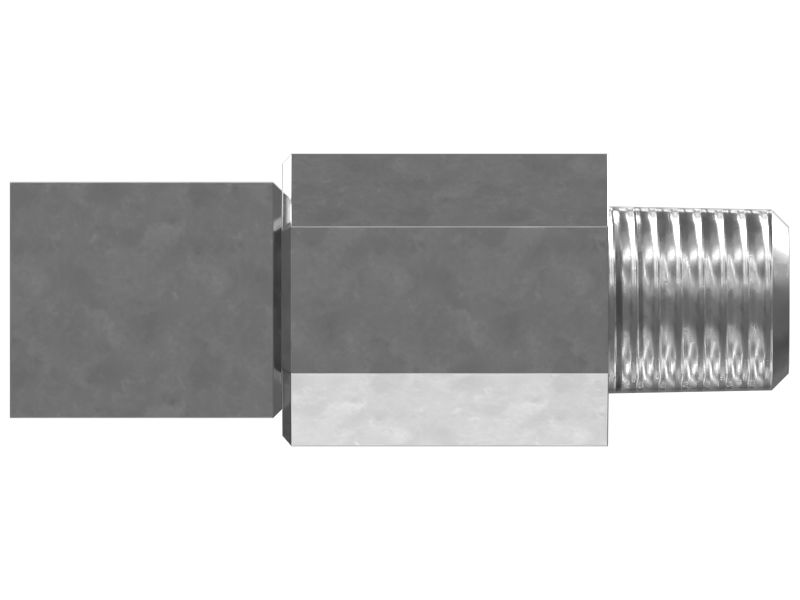

544-9206: ПЕРЕХОДНОЙ КОЛЕНЧАТЫЙ ПАТРУБОК

Cat® Swivel Elbow 90-degree Adapter is used in a lubrication system to change the direction of lubri


Заинтересовал товар?

Имя

Почта

Комментарий

Схема

Не найдено

Описание для номера по каталогу 544-9206

The Adapter Elbow is a specialized pipe-fitting component designed to change the direction of a pipeline or conduit by 90 degrees while allowing for rotational movement or swiveling at the joint. It ensures the adapter elbow's secure and leak-free connection to the lubrication system. It is a versatile and indispensable component in fluid systems, enabling smooth directional changes, efficient flow, and reliable connections.

Attributes:
• Straight adapter connects at 90-degree
• Minimizes flow resistance and pressure drop
• Equipped with sealing features to prevent leakage at the connection points
• To withstand a wide range of temperatures, ensuring stability and functionality in both high and low-temperature

Applications:
This Adapter Elbow is used in an automatic lubrication system to facilitate lubricant flow at a right angle, ensuring effective lubrication of Truck moving parts.

WarningOutline Предупреждение: При использовании этого изделия можно подвергнуться воздействию различных химических веществ, включая свинец и соединения свинца, которые, как установлено в штате Калифорния, вызывают рак и врожденные дефекты или другие нарушения репродуктивной функции. Дополнительную информацию см. на веб-сайте www.P65Warnings.ca.gov.

Технические характеристики номера по каталогу 544-9206

  • Material: Alloy Steel

Совместимые модели для номера по каталогу 544-9206

ARTICULATED TRUCK

740 GC 745 725 730 735 EJECTOR

EJECTOR TRUCK

740
