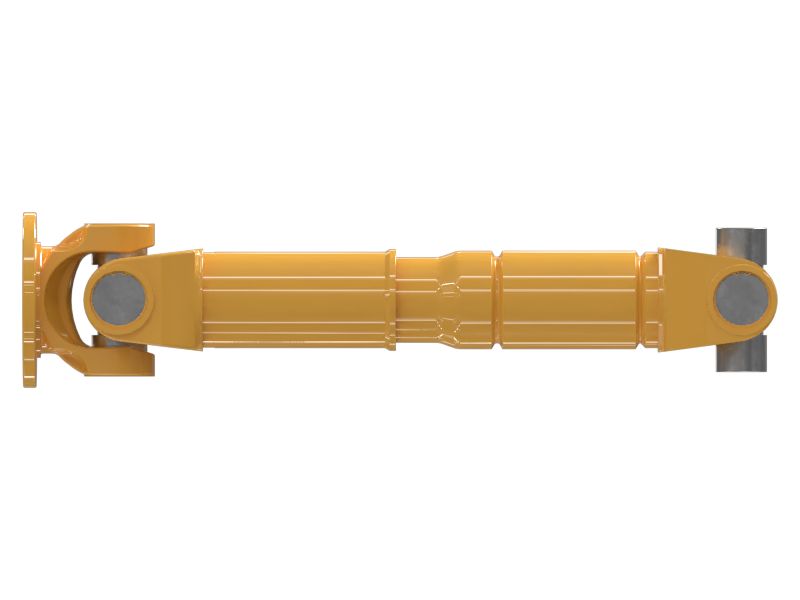

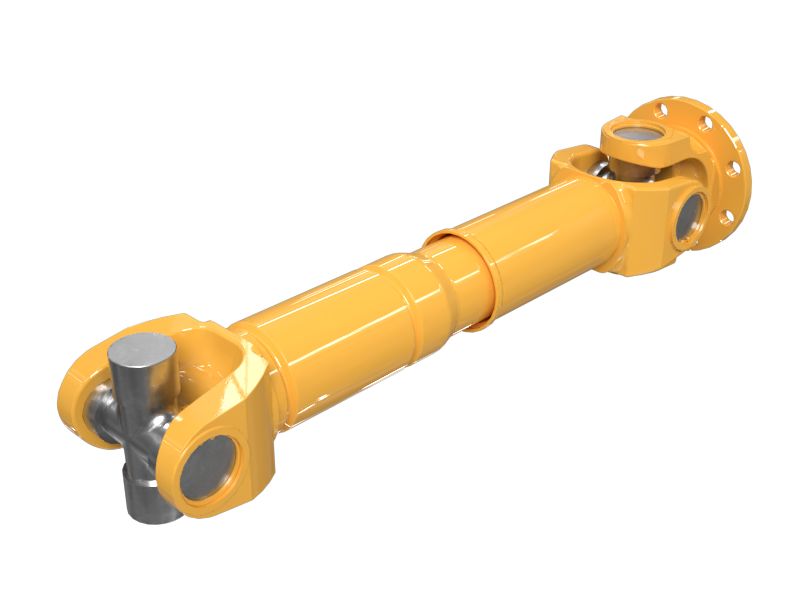

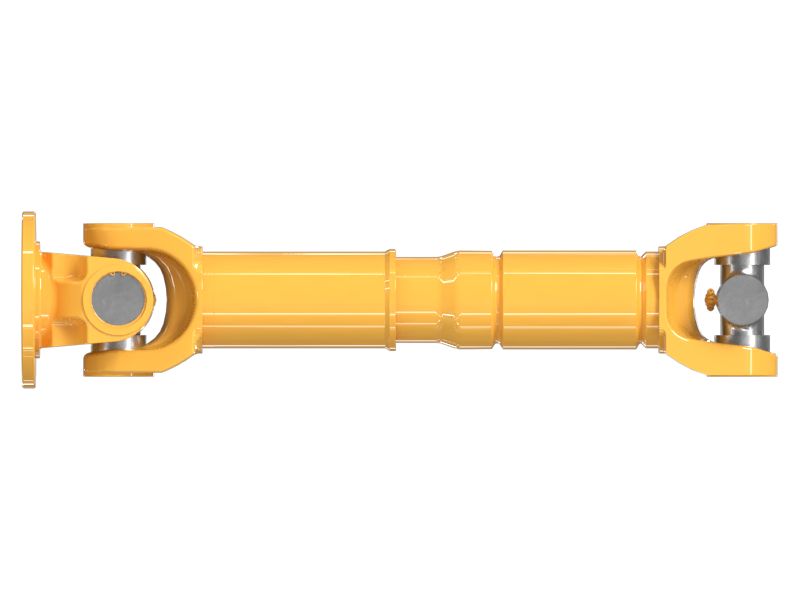

535-7261: ШАРНИР GP-SEM

Slip joint groups, such as 535-7261, are used to extend or collapse the drive shaft depending on the torque being applied.

Drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine.

Attributes:
• End 1: 8-bolt Flange

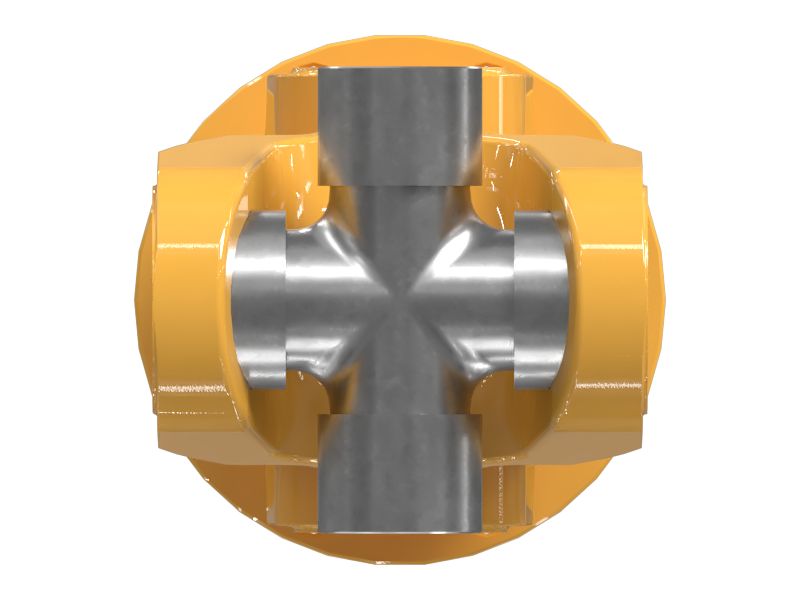

• End 2: U-joint Spider
• Installed Length: 673 mm (26.50 in)
• Compressed Length: 630 mm (24.80 in)
• Extended Length: 740 mm (29.13 in)
• Slip Length: 110 mm (4.33 in)
• Swing Diameter: 165 mm (6.50 in)
• Pilot Diameter: 95 mm (3.74 in)

Application:
Consult your owner’s manual or contact your local Cat Dealer for more information.
