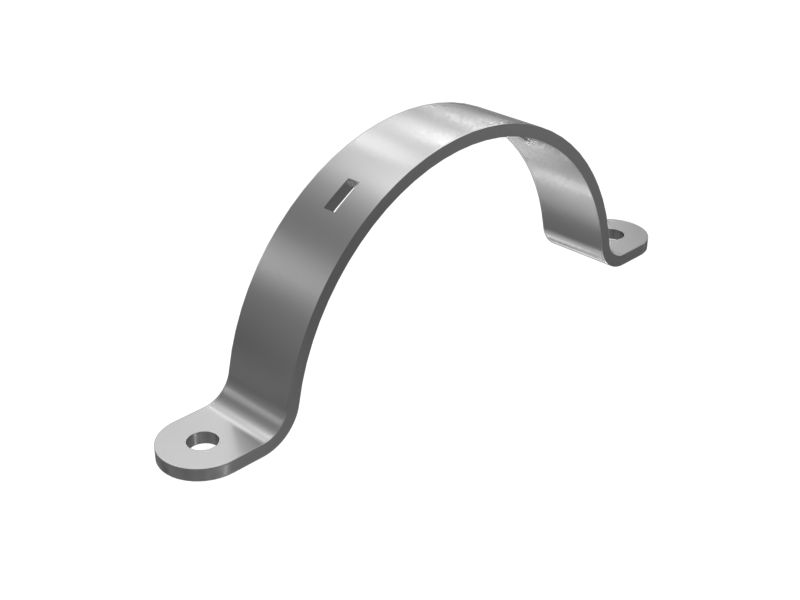

533-6252: 215mm Diameter Half Saddle Clamp

Description:
A Half Saddle Clamp is a type of fastener used to secure Tubes or Hoses and other cylindrical objects to a surface or other objects. It consists of one half with thread and the other half that fits around the object being secured. A Half Saddle Clamp is placed around the object and tightened with nuts on either end, pressing the object against the plate or saddle and securing it in place.

Attributes:
• Provided with a mounting hole to fit a fastener of size M10.
• Provided a reliable and secure connection between the Tubes and the fitting.
• Manufactured to precise specifications and are built for durability, reliability, and productivity.

Applications:
A Half Saddle Clamp is used to hold Hoses in Lines of Tilt Cylinder system arrangements, mostly used in Cat 966 and 966M Wheel loader.

• Clamp Width (in): 1.57

• Clamp Width (mm): 40

• Height (in): 11.75

• Height (mm): 298.5

• Material: Steel,Carbon Steel

• Thickness (in): 0.24

• Thickness (mm): 6
