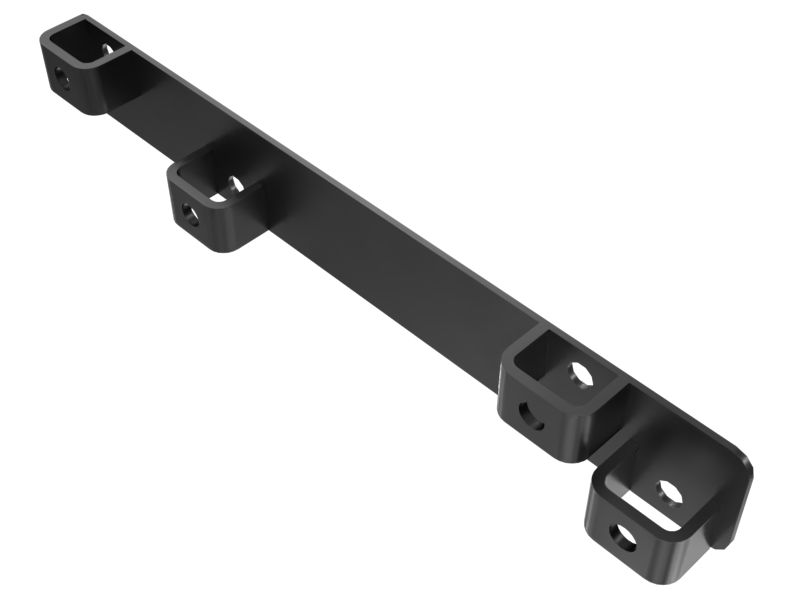

529-8800: Radiator Fan Guard Supporting Plate

The Radiator Fan Guard Supporting Plate provides a stable and reliable attachment point for the right-hand side protective guard, ensuring proper installation and protection of the radiator fan from debris and damage. It functions by providing a rigid mounting surface for the radiator fan guard. It is made of sturdy steel to withstand impact, vibrations, and environmental conditions. It consists of tubes with slots that align with the corresponding attachment points on the fan drive unit. This allows for secure fastening of the guard to the radiator assembly with fasteners.

Attributes:
• Helps to protect the fan from debris, such as rocks, branches, or insects
• Helps to minimize the risk of structural fatigue by distributing the load and stress across a wider area

Applications:
The Radiator Fan Guard Supporting Plate is used to hold and secure the radiator fan guard with the fan drive supporting structure. It ensures that the guard remains firmly in place, even in rugged or off-road conditions, preventing it from dislodging or interfering with the radiator fan's operation.

• Material: Steel,Alloy Steel,Carbon Steel

• Overall Length (mm): 420

• Overall Length (in): 16.535

• Thickness (mm): 3

• Thickness (in): 0.12

• Hole Size (mm): 13.5

• Hole Size (in): 0.531

• Weight (kg): 1.13

• Weight (lb): 2.491
