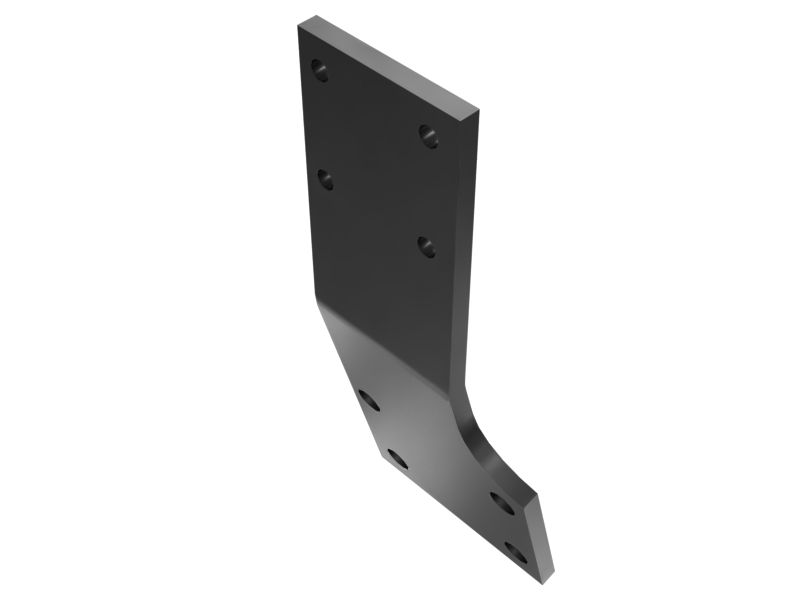

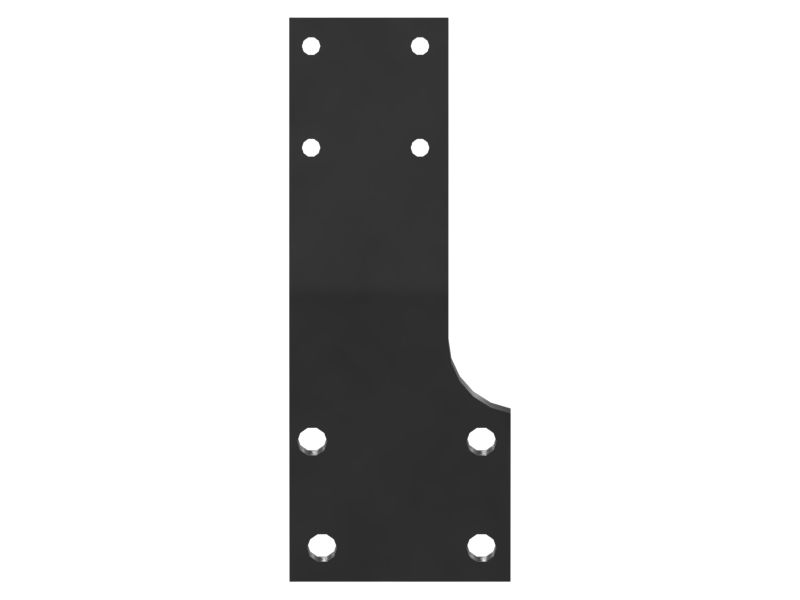

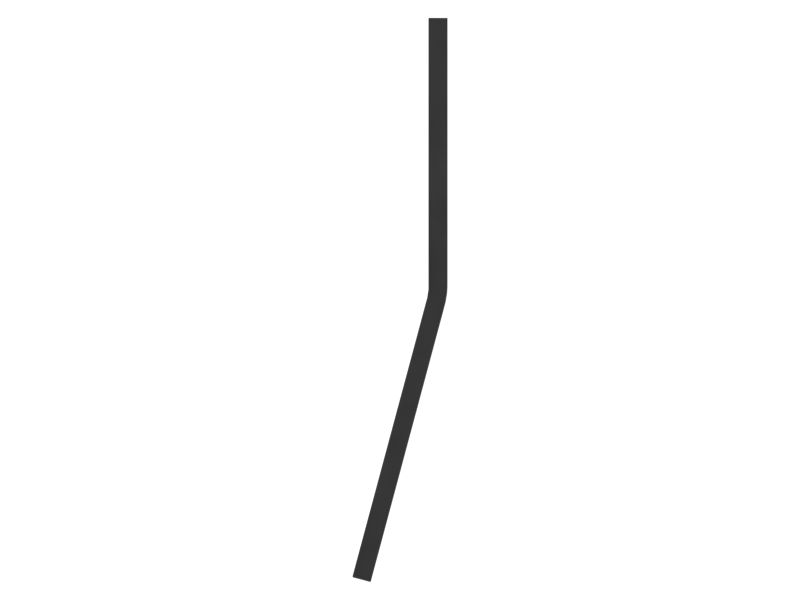

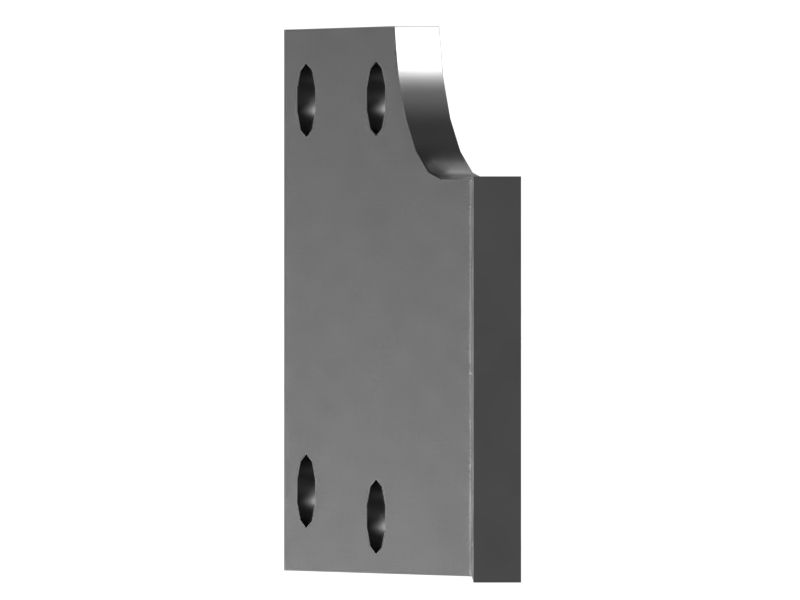

526-5497: Transmission Support Bracket

A Transmission Support Bracket is used to provide a secure and stable support structure for the transmission, preventing it from shifting or falling during maintenance or testing procedures. It is made from high-strength steel material and is equipped with strategically placed mounting holes, aligning with corresponding attachment points. By securely holding the transmission in place, the bracket allows operators to perform maintenance tasks more efficiently.

Attributes:
• Helps to distribute the weight of the transmission across a wider area, reducing localized stress on any single point
• Allows for adequate clearance around the output drive case to avoid interference with other parts

Applications:
A Transmission Support Bracket serves as a secure mounting point that helps to stabilize the transmission during maintenance and testing procedures, ensuring that the transmission remains in the correct position and alignment.

• Material: Steel,Carbon Steel,Coating Mixed

• Length (mm): 152.4

• Length (in): 6

• Width (mm): 61

• Width (in): 2.401

• Thickness (mm): 12

• Thickness (in): 0.472

• Weight (kg): 4.67

• Weight (lb): 10.295
