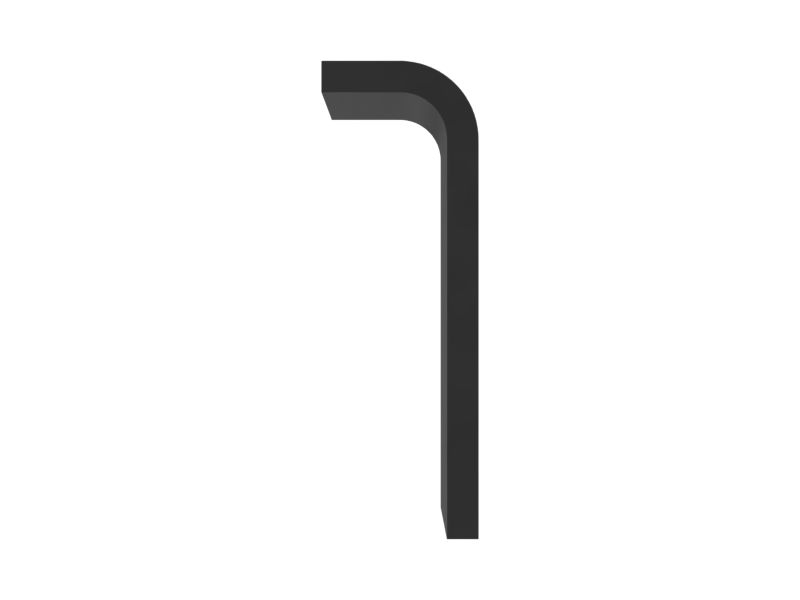

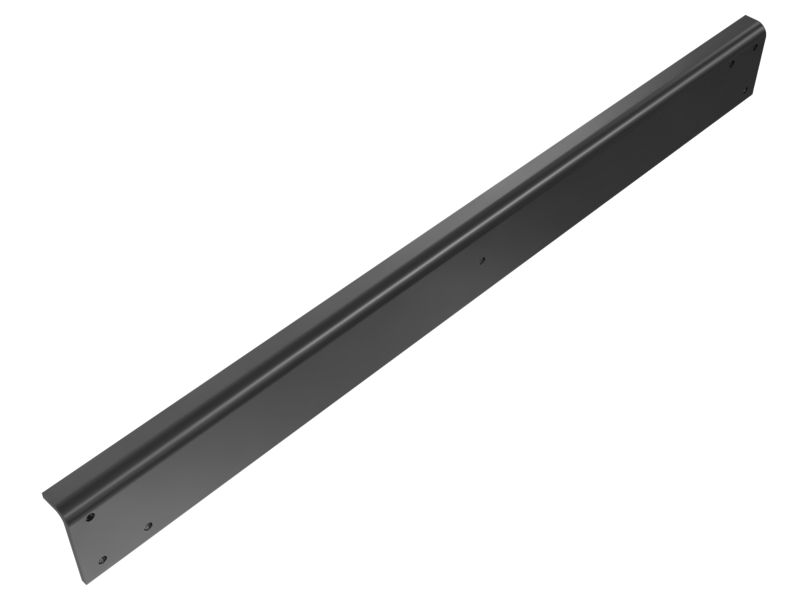

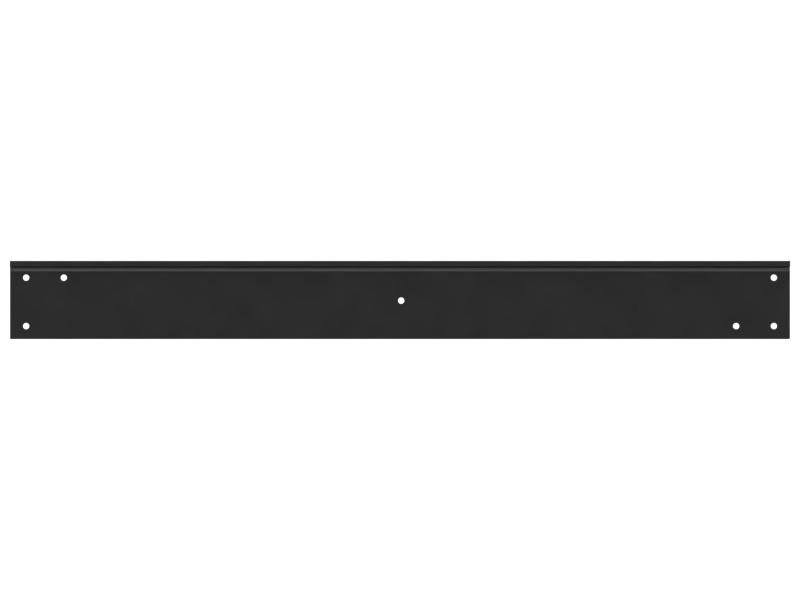

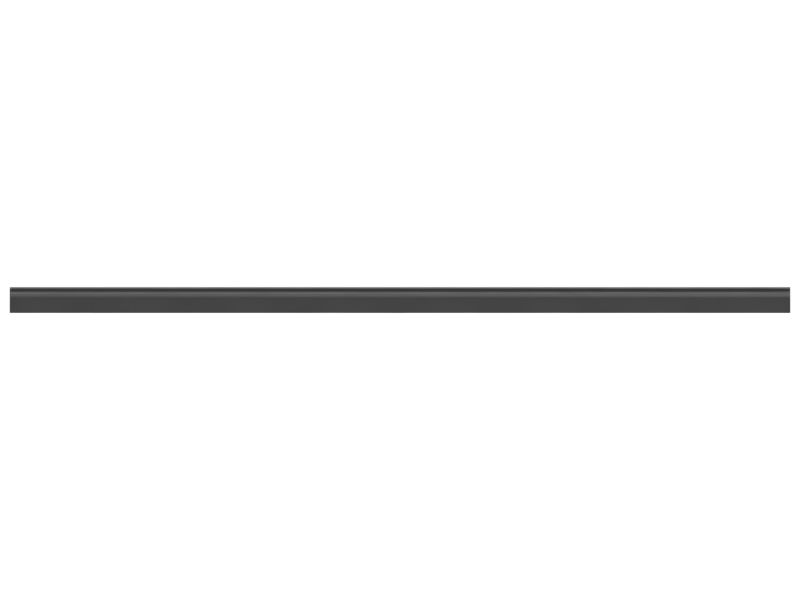

525-8502: Fan Drive Supporting Plate

The Fan Drive Supporting Plate is fixed in conjunction with the support assembly of the fan drive unit. By reinforcing the structure and providing added support, the plate helps to distribute the load and stress placed on the fan drive unit, ensuring its proper operation. It is made of durable steel to withstand the demanding conditions of the machine and offers resistance to vibration and environmental factors encountered during operation. It features holes that align with the mounting points on the supporting structure and enables secure attachment with the help of fasteners.

Attributes:
• Provided with 7 mounting holes to fit the fastener of size M10
• Ensures even weight distribution, reducing stress on individual components and enhancing overall stability

Applications:
The Fan Drive Supporting Plate provides additional reinforcement to the support that secures the fan drive unit in place within the machine's cooling unit, maintaining the stability and functionality of the fan drive unit.

• Material: Steel,Carbon Steel

• Length (mm): 1530

• Length (in): 60.236

• Height (mm): 152.4

• Height (in): 6

• Width (mm): 50

• Width (in): 1.968

• Thickness (mm): 10

• Thickness (in): 0.39

• Hole Size (mm): 13.5

• Hole Size (in): 0.531

• Weight (kg): 21.19

• Weight (lb): 46.715
