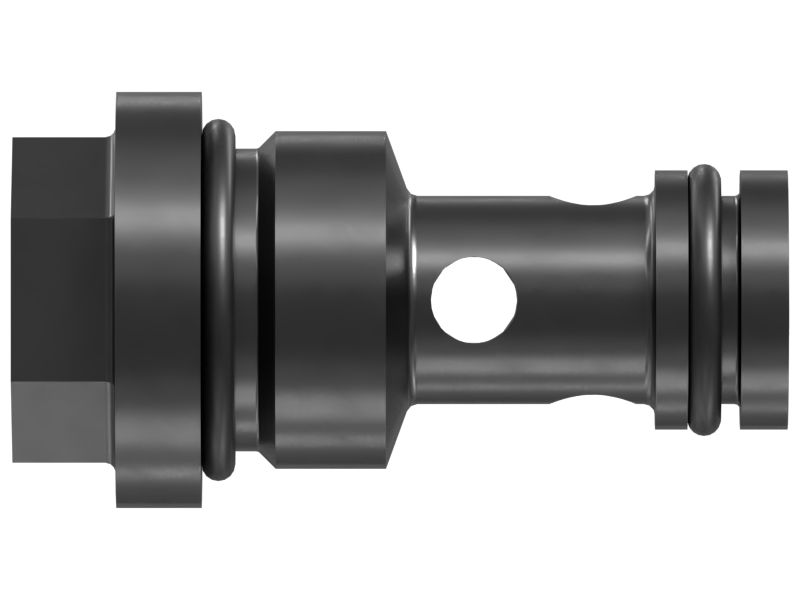

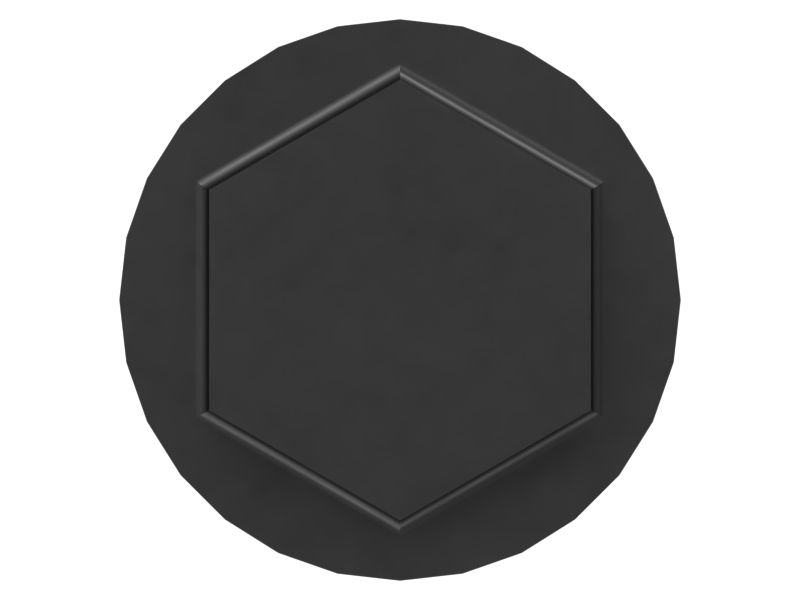

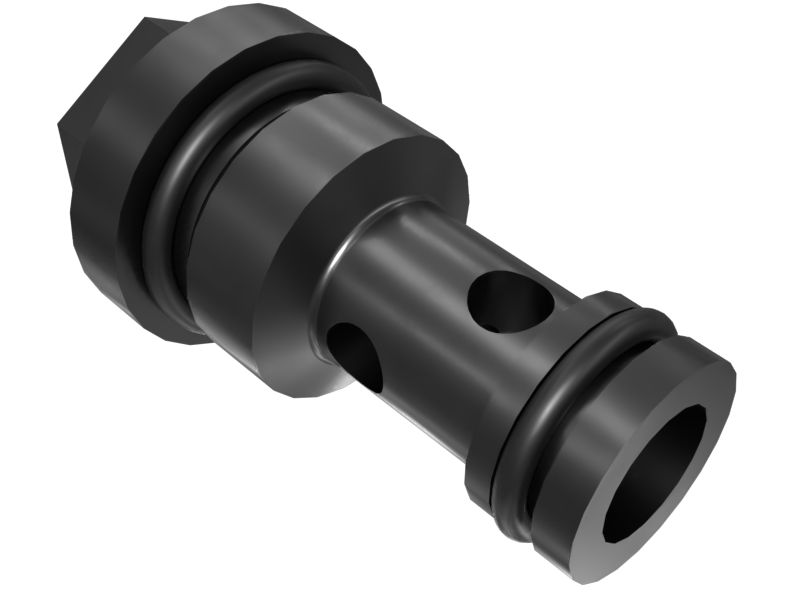

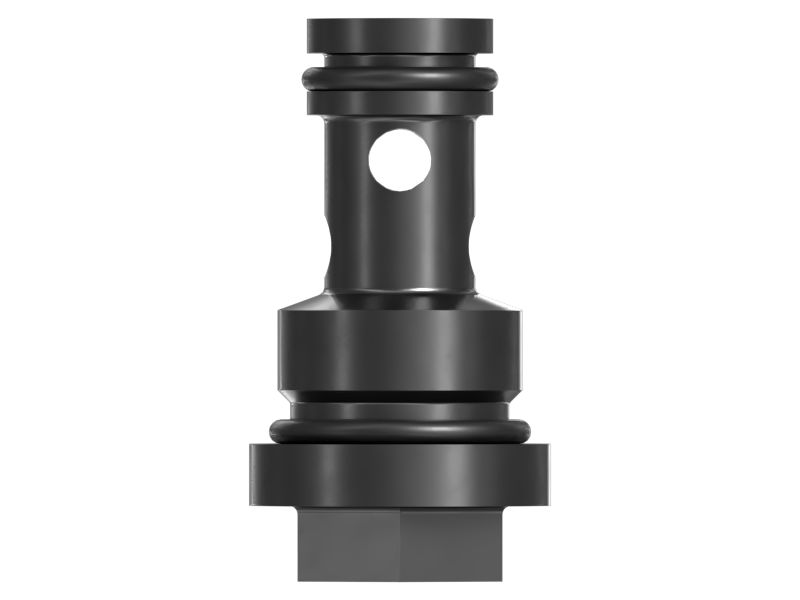

524-9367: Ball Stud Breaker Orifice

The Ball Stud Breaker Orifice functions by controlling the flow rate of hydraulic fluid to the hammer, thereby regulating the pressure and impact force delivered by the tool. When hydraulic fluid enters the system, the orifice restricts the flow to a specific rate, maintaining optimal pressure levels. This controlled flow is necessary for the hammer’s piston movement, which generates the repetitive striking force necessary for breaking hard surfaces. The precision in controlling the fluid flow ensures consistent performance, minimizes wear and tear, and enhances the tool's efficiency and lifespan.

Attributes:
• Enhances safety by preventing uncontrolled fluid release.
• Comes with O-rings to ensure a secure and leak-proof seal.
• Includes a restrictor to manage fluid pressure and flow.

Applications:
The Ball Stud Breaker Orifice is used to ensure the efficient and controlled operation of the hydraulic hammer by regulating the flow of hydraulic fluid, it maintains the optimal pressure needed for the hammer to function effectively.

• Weight (kg): 0.055

• Weight (lb): 0.121

• Hole Size (mm): 4.6

• Hole Size (in): 0.181

• Thread: M18x1.5-6g

• Hex Size (mm): 14.9

• Hex Size (in): 0.587

• Outer Diameter (mm): 22

• Outer Diameter (in): 0.866

• Overall Length (mm): 41

• Overall Length (in): 1.614

• Material: Stainless Steel
