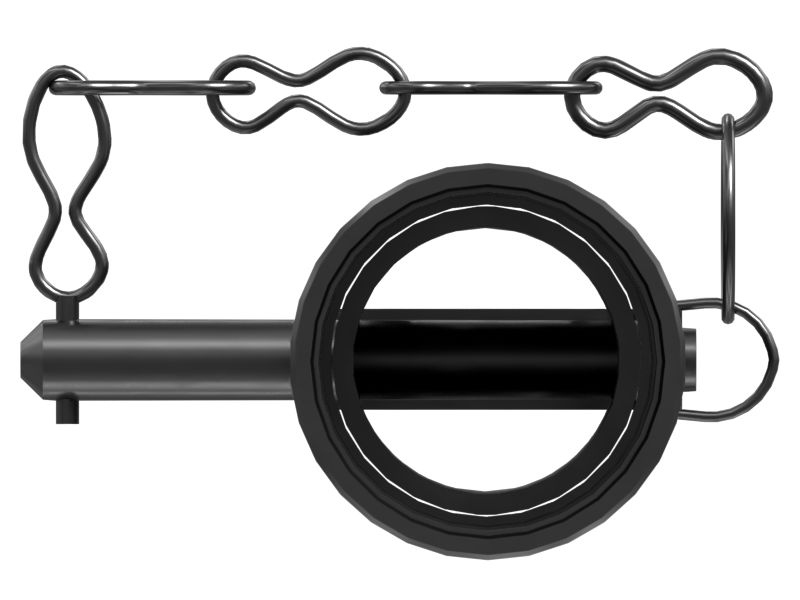

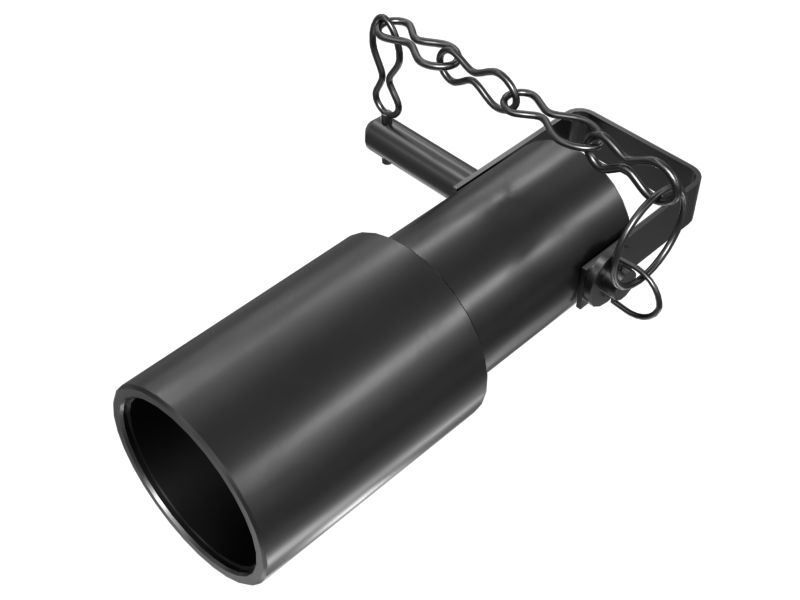

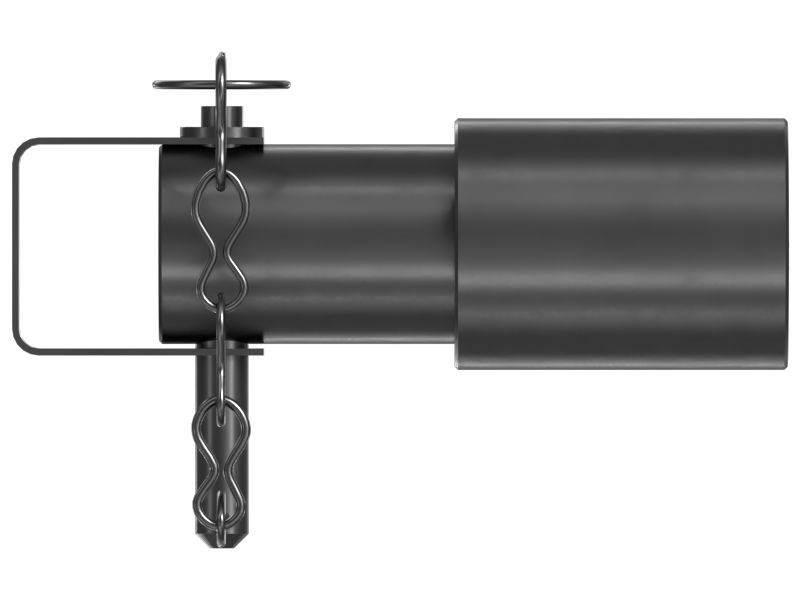

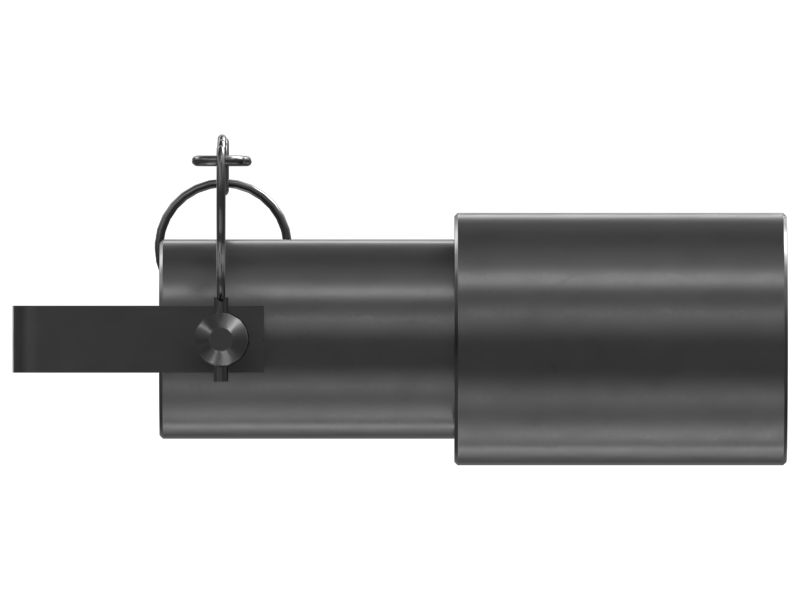

524-9350: Axle Removal Adapter

An Axle Removal Adapter consists of an adapter tube, round tube, support plate, and pin. It operates by providing a stable platform to support the axle during removal or installation. The adapter tube connects to the vehicle’s axle housing, while the round tube provides the necessary leverage. The support plate stabilizes the assembly, and the pin secures the components in place, allowing technicians to work confidently without the risk of misalignment or injury.

Attributes:
• Made from durable materials, ensuring secure connections and easy removal
• Reduces the risk of accidents by securely holding the axle in place during handling

Applications:
An Axle Removal Adapter withstand significant loads without bending or breaking. It provides leverage and stability during axle operations. Used for maximum support, distributing loads evenly to prevent deformation.

• Thread: M105x2-6H

• Outer Diameter (mm): 120.65

• Outer Diameter (in): 4.75

• Inner Diameter (mm): 82.6

• Inner Diameter (in): 3.251

• Overall Length (mm): 370

• Overall Length (in): 14.566

• Overall Width (mm): 237

• Overall Width (in): 9.33

• Hole Size (mm): 26

• Hole Size (in): 1.023

• Weight (kg): 7.095

• Weight (lb): 15.641

• Material: Coating Mixed
