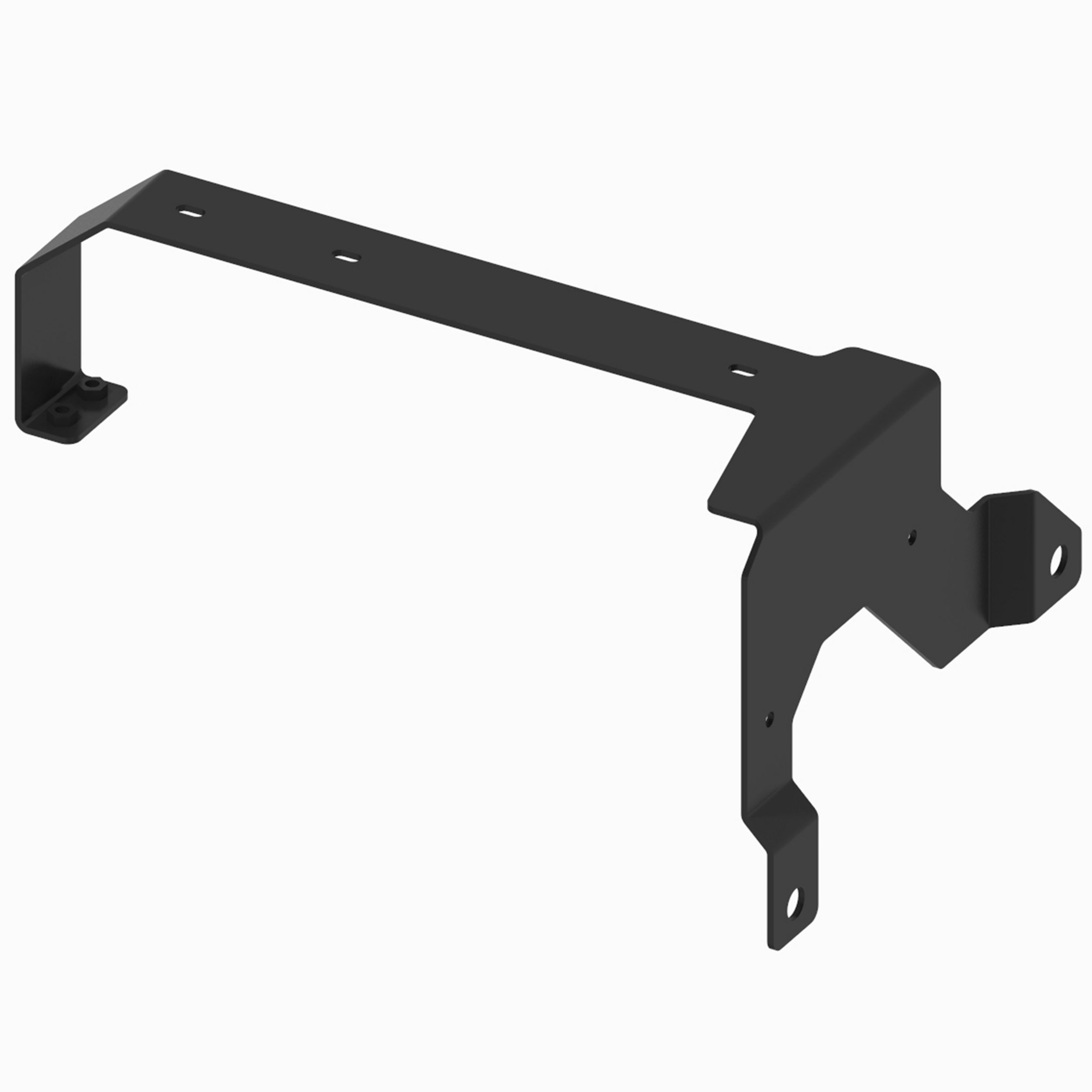

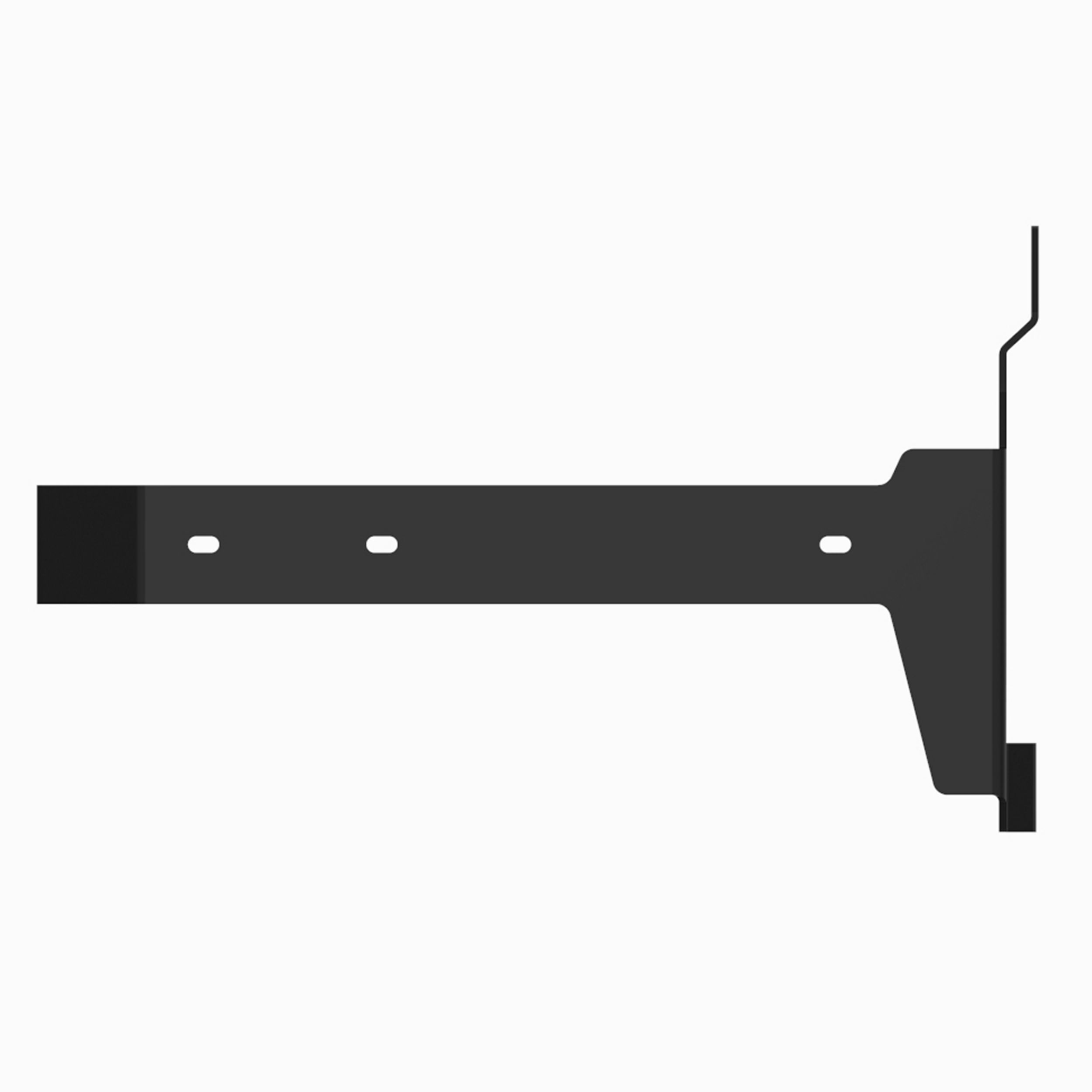

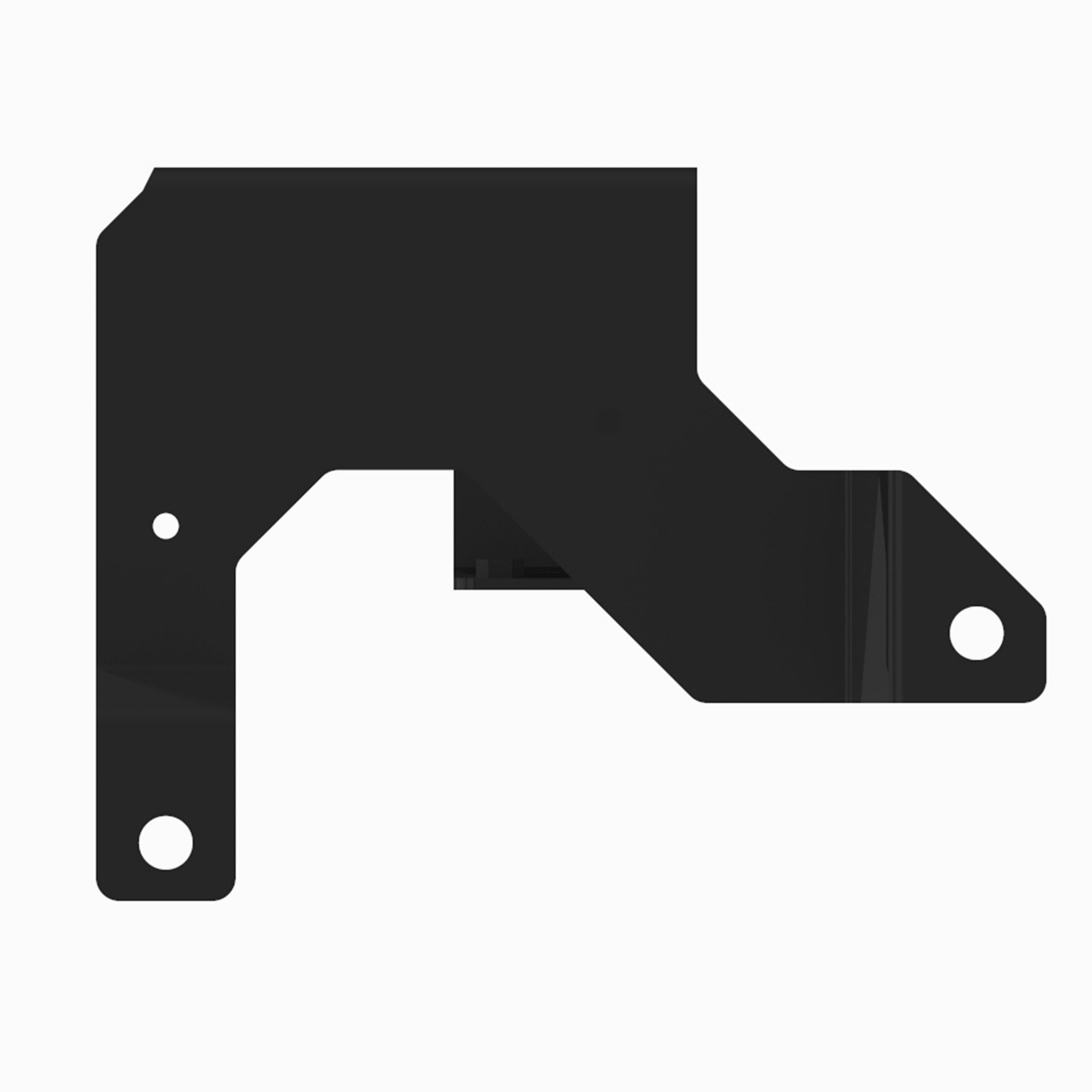

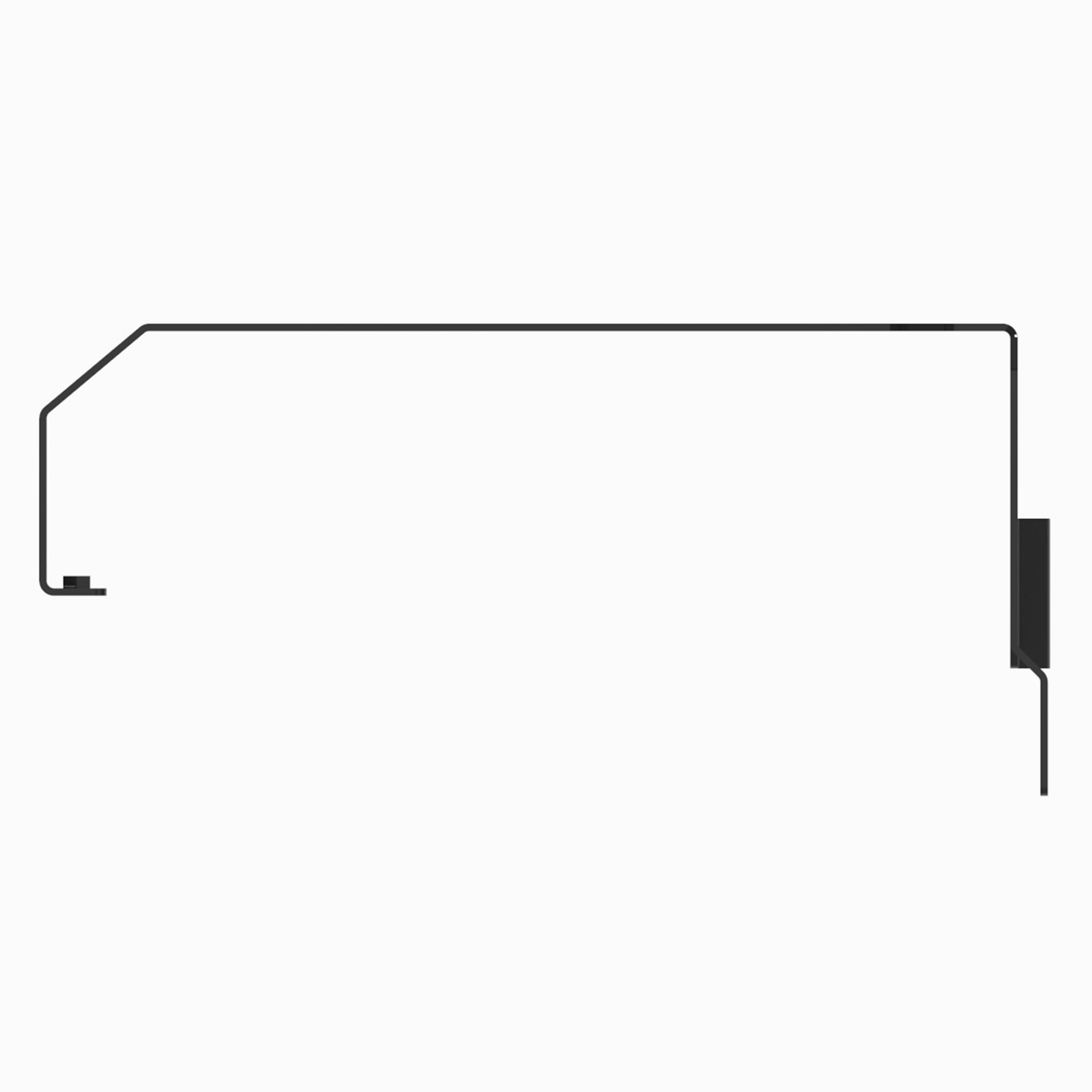

524-5425: Hydraulic Tank Mounting Bracket

Description:
A hydraulic tank mounting bracket is a component used to mount the hydraulic tank of the hydraulic system in the originally intended location. The hydraulic tank is used to store hydraulic fluid that is used to operate hydraulic components such as cylinders, motors, and valves. It is a piece of metal, plastic, or other material that is used to support or attach other components. The bracket may have holes or other features that allow it to be fastened to other parts of the system.

Attributes:
• Provided with 2 mounting holes to fit fastener of size M10
• Designed to provide protection for the hydraulic tank against any damage

Applications:
A bracket assembly tank is used to ensure that the hydraulic tank remains securely mounted and protected, this type of bracket is mostly used in Cat 415, 416, 420, 424, 428, and 430 Backhoe Loader.

• Overall Height (in): 12.4

• Overall Height (mm): 315

• Overall Length (in): 26.53

• Overall Length (mm): 673.9

• Overall Width (in): 16.06

• Overall Width (mm): 408

• Thickness (in): 0.19

• Thickness (mm): 5

• Weight (kg): 5.42

• Weight (lb): 11.94

• Material: Alloy Mixed
