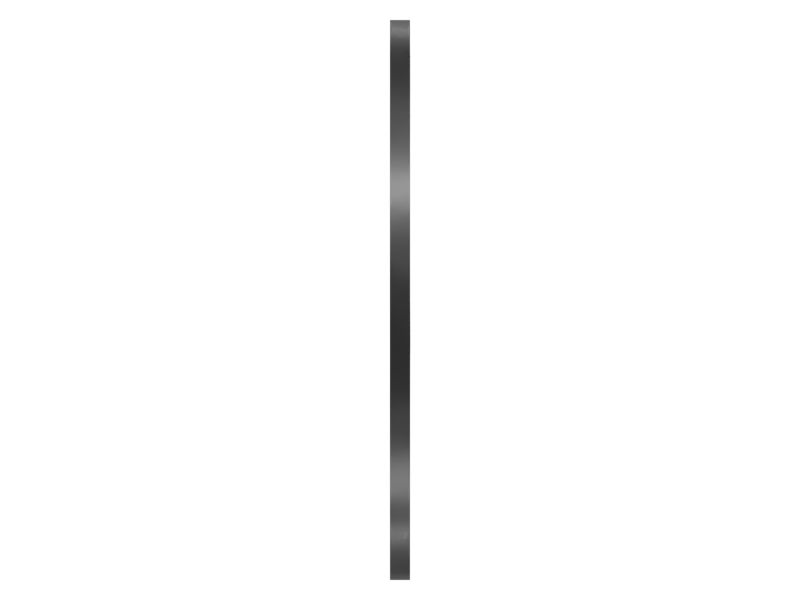

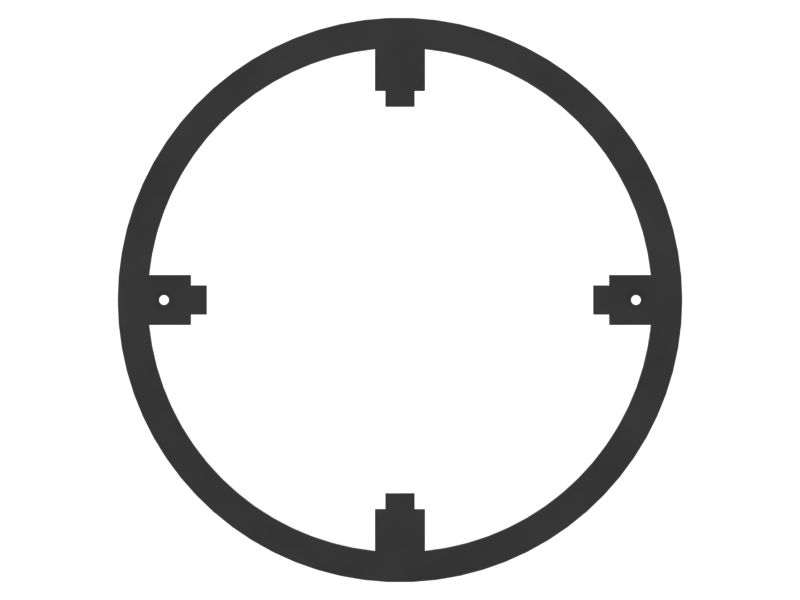

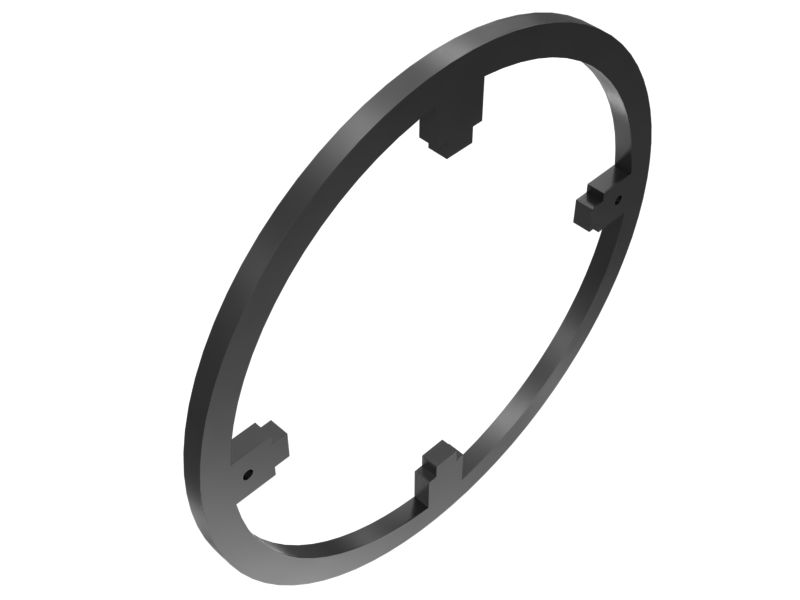

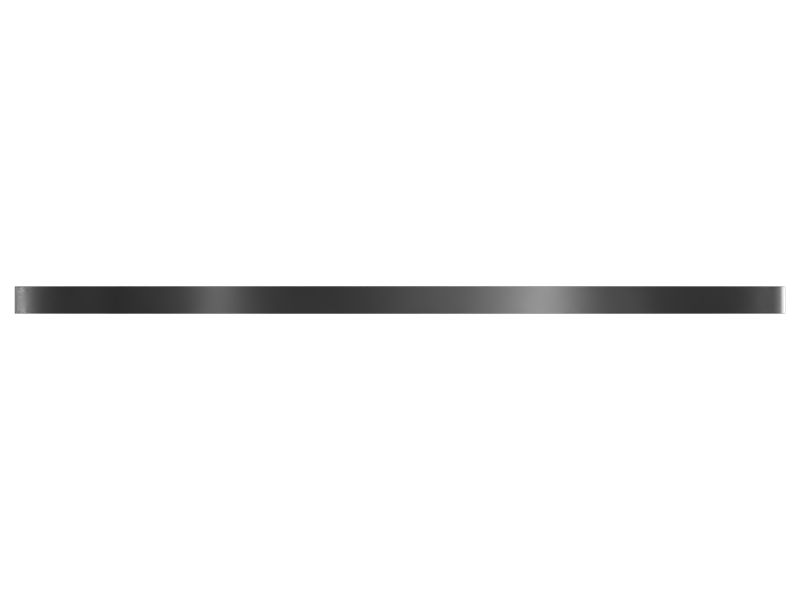

520-8683: Final Drive Ring Spanner

The Final Drive Ring Spanner is used for the effective assembly and disassembly of final drive units in the equipment, a ring-shaped device that fits securely around the drive’s fasteners, enabling proper torque application to secure and remove bolts. It ensures an even distribution of force, reducing the damage to the drive components and the equipment itself. The spanner is to accommodate the specific dimensions and torque requirements of final drive assemblies, making it a necessary tool for maintenance and repair operations. Its ergonomic handle and durable structure provide the leverage needed to handle the high forces involved, ensuring reliable performance under demanding conditions.

Attributes:
• Enhances operational safety by preventing tool slippage.
• Allows for accurate torque control during assembly and disassembly.
• Ensures proper alignment and fit for accurate operation.

Applications:
The Final Drive Ring Spanner is used for assembling and disassembling final drive components located in the undercarriage of the equipment. It is necessary to ensure proper fit and torque in components.

• Weight (kg): 10

• Weight (lb): 22.046

• Outer Diameter (mm): 570

• Outer Diameter (in): 22.441

• Hole Size (mm): 10.5

• Hole Size (in): 0.413

• Thickness (mm): 20

• Thickness (in): 0.787

• Material: Steel,Coating Mixed
