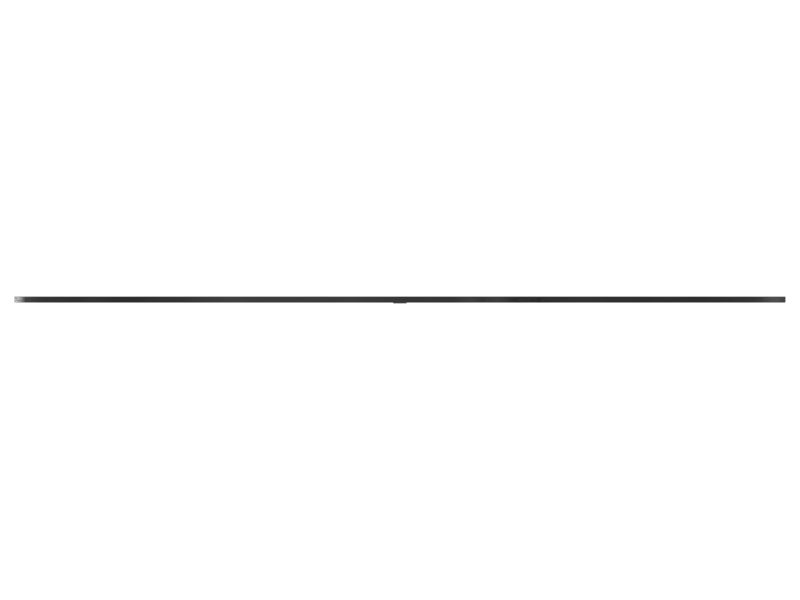

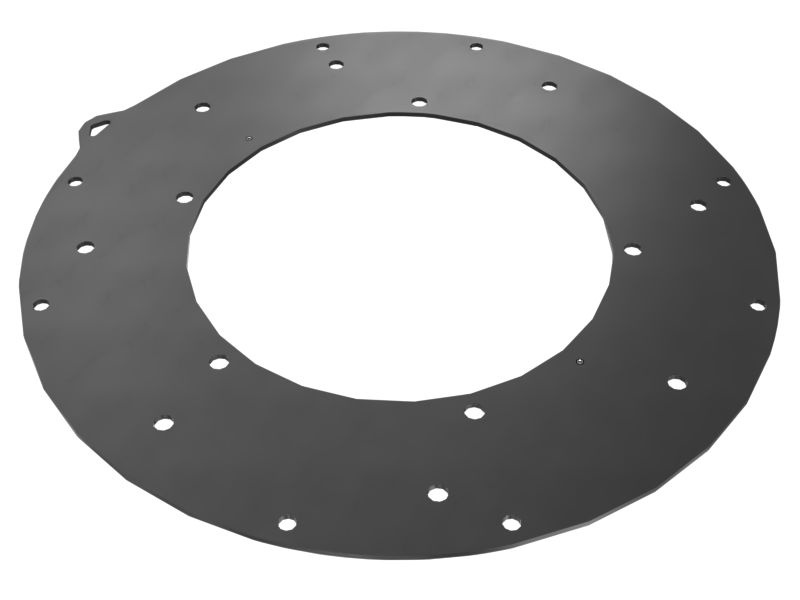

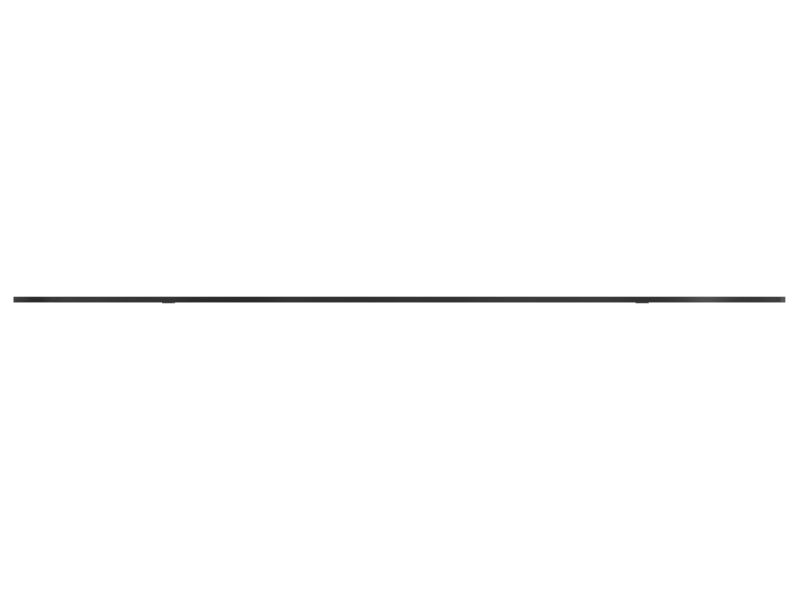

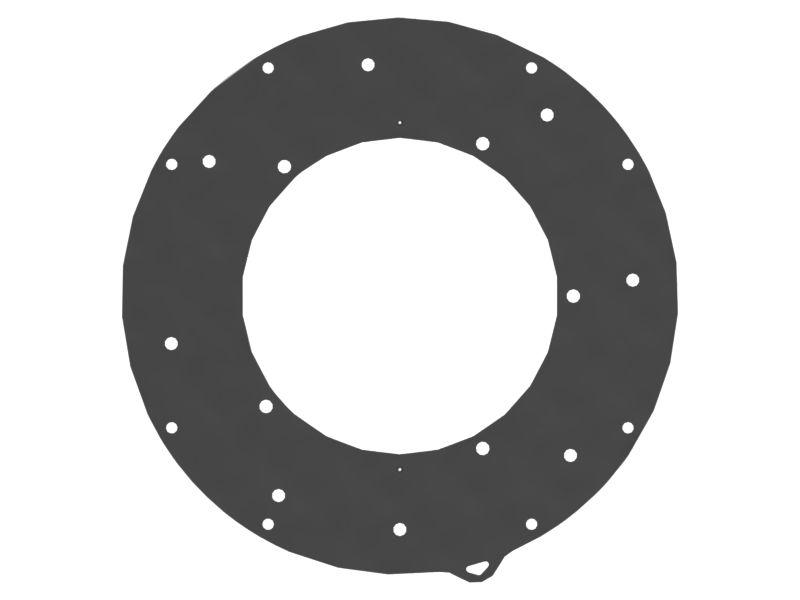

513-4503: 10 Thickness Final Drive Bench Adapter Plate

The Final Drive Bench Adapter Plate is used to facilitate the maintenance and testing of final drive assemblies. It is used to mount the final drive onto a final drive disassembly and assembly bench. The adapter ensures that the final drive is held firmly in place, allowing technicians to perform disassembly, inspection, and reassembly with high accuracy. By providing a stable and secure mounting platform, the adapter helps to accurately align the final drive during testing and servicing, which is for maintaining operational efficiency and reliability.

Attributes:
• Ensures accurate alignment of the final drive components during the assembly and disassembly bench.
• Provides stable support by withstand induced stress and impact.
• Enables secure mounting of final drives on a disassembly bench.
• Provides a stable platform to prevent movement and shifting during disassembly and assembly.

Applications:
The Final Drive Bench Adapter Plate is used to provide a stable and secure platform for mounting final drive assemblies during maintenance and testing.

• Inner Diameter (mm): 740

• Inner Diameter (in): 29.134

• Thickness (mm): 10

• Thickness (in): 0.394

• Hole Size (mm): 28, 32, 33

• Hole Size (in): 1.102, 1.26, 1.299

• Weight (kg): 66

• Weight (lb): 145.505

• Material: Alloy Mixed
