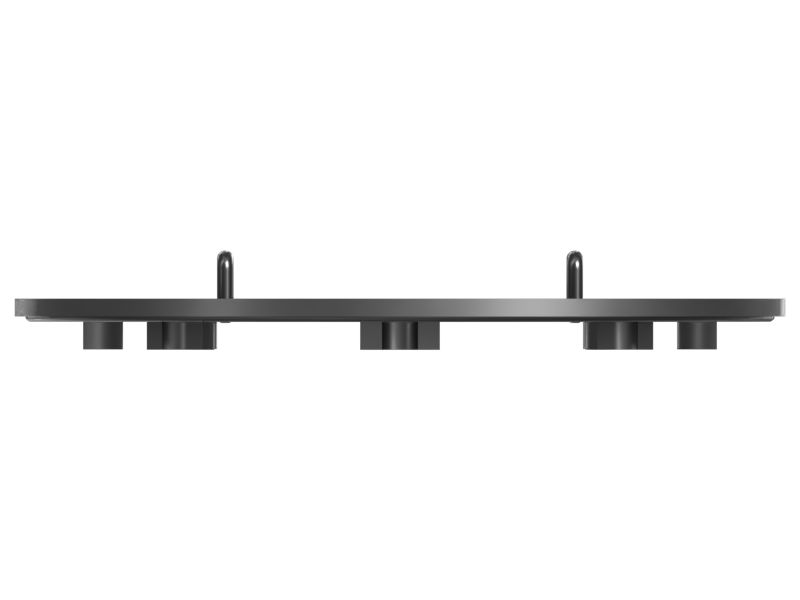

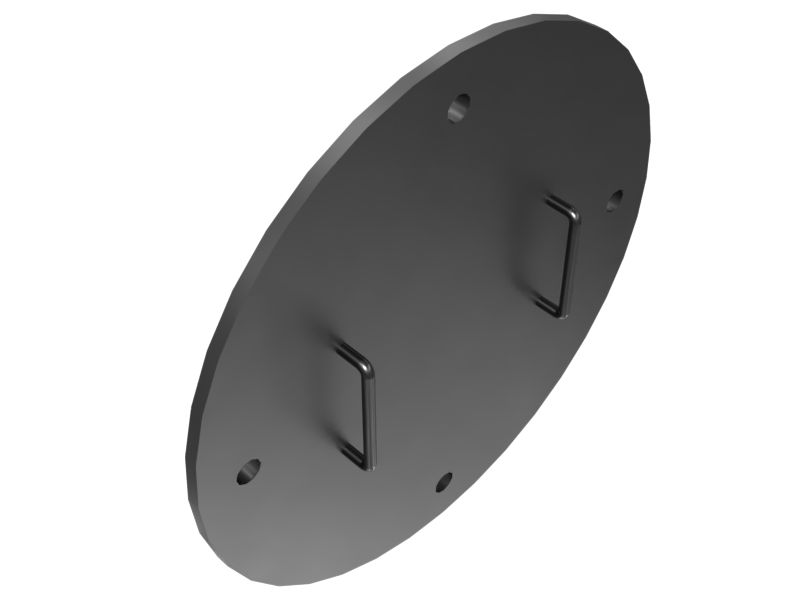

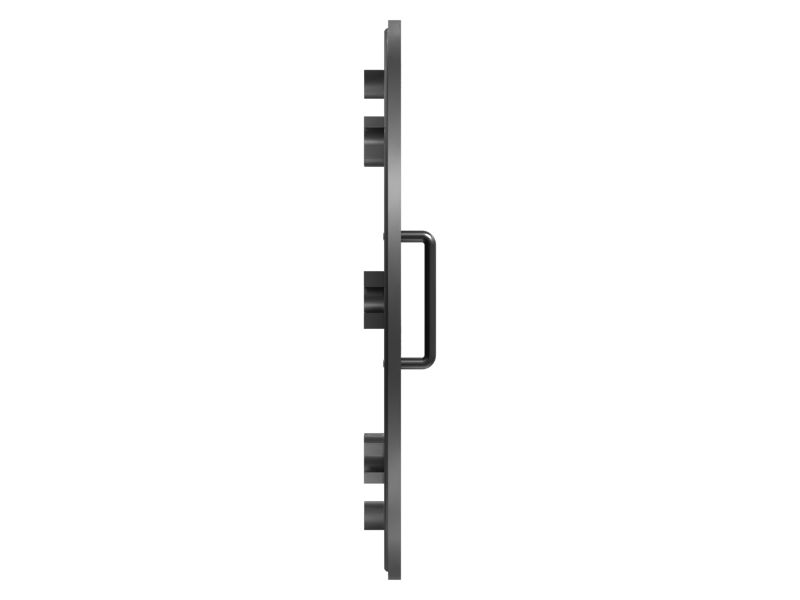

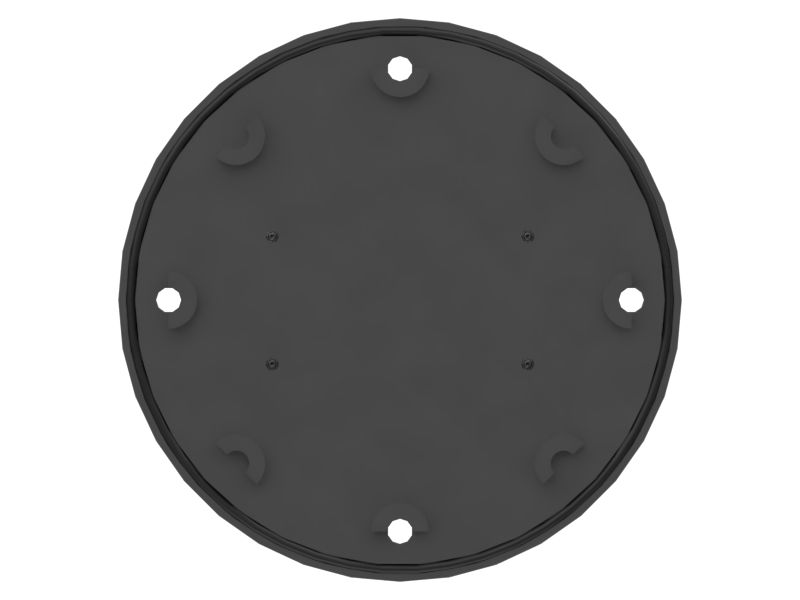

512-7943: Slew Gearbox Cavity Cover Plate

The Slew Gearbox Cavity Cover Plate consists of a plate, half spacer, handle, O-Ring, screw, sealing washer, and bolt. It is fitted over the cavity to create a barrier against external elements. The O-ring provides a tight seal, preventing the ingress of moisture and debris, while the handle allows for easy installation and removal. This design ensures that the grease bath remains clean and uncontaminated, facilitating optimal lubrication when the gearbox is reinstalled.

Attributes:
• Keeps out dirt and water, protecting the grease bath and ensuring the lubrication system remains clean
• Includes a handle for simple attachment and removal, allowing technicians to perform maintenance quickly and efficiently

Applications:
The Slew Gearbox Cavity Cover Plate serves to prevent contaminants, such as dirt and moisture, from entering the grease bath, which can lead to lubrication failure and damage.

• Thread: M24

• Hole Size (mm): 25.4

• Hole Size (in): 1

• Outer Diameter (mm): 560

• Outer Diameter (in): 22.047

• Weight (kg): 9.111

• Weight (lb): 20.086

• Material: Carbon Steel,Silicone / MQ / VMQ / PMQ Rubber,Sea
