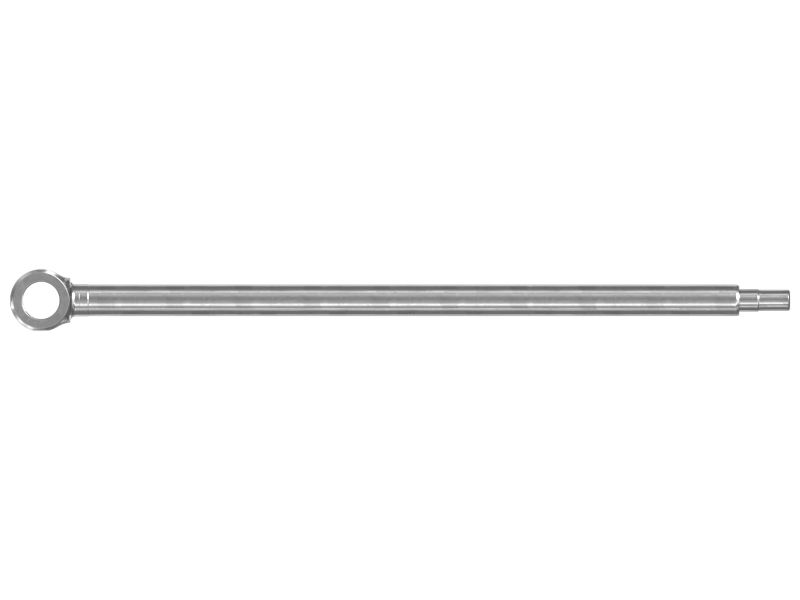

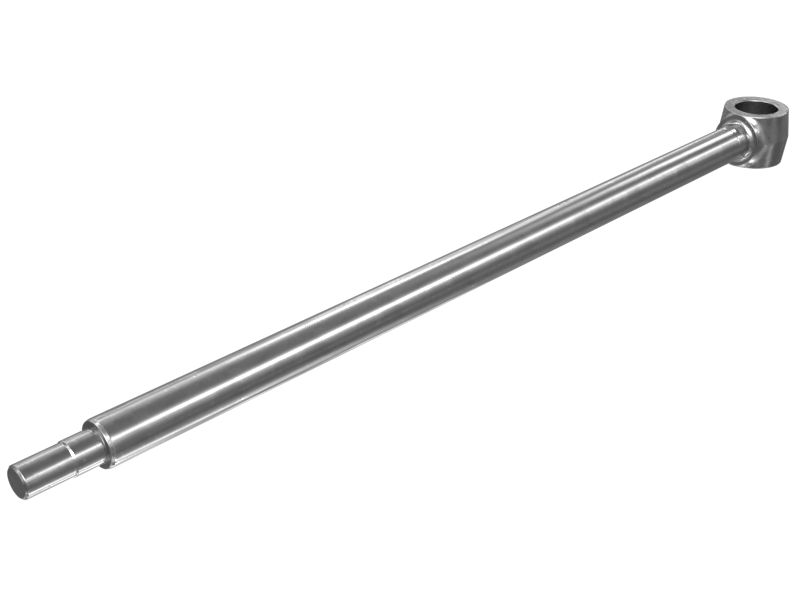

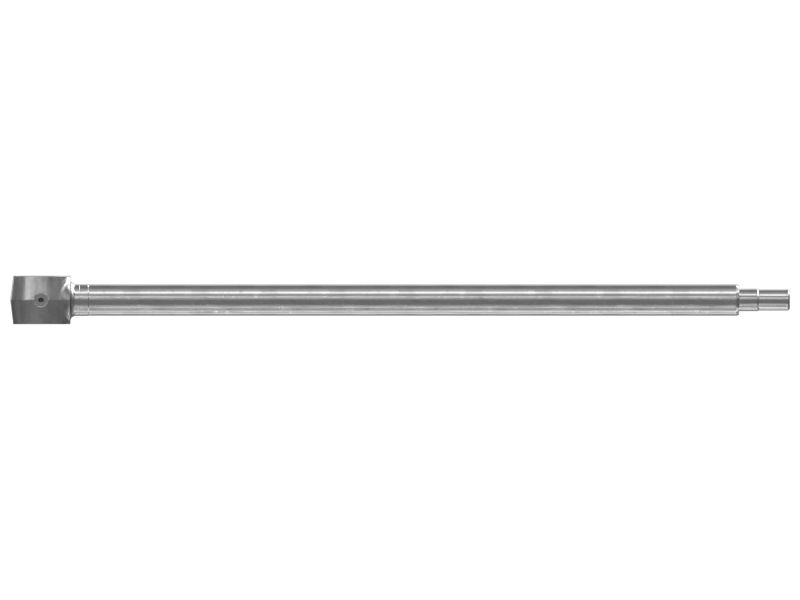

512-0500: ШТОК В СБОРЕ

Description:
A Tilt Cylinder Rod is the component of the hydraulic cylinder that extends and retracts from the body of the cylinder, delivering the force required to regulate the tilting motion of the Backhoe Loader attachment. It is normally constructed of high-strength materials and must be capable of withstanding the high pressures and forces applied to it during operation.

Attributes:
• Manufactured to precise specifications and are built for durability, reliability, and productivity.
• Provided with a hole of diameter 55mm on the rod end to place the bushing.

Applications:
A Tilt Cylinder Rod acts as a critical part in providing the necessary linear motion to control the tilting mechanism, mostly used in the Cat 42, 424, 426, and 426F2 Backhoe Loaders.

• Overall Height (in): 2.75

• Overall Height (mm): 70

• Overall Length (in): 44.72

• Overall Length (mm): 1136

• Rod Diameter (in): 1.77

• Rod Diameter (mm): 45

• Rod End Type: Spherical

• Thread: 1/8-27

• Weight (kg): 14.55

• Weight (lb): 32.08

• Material: Carbon Steel
