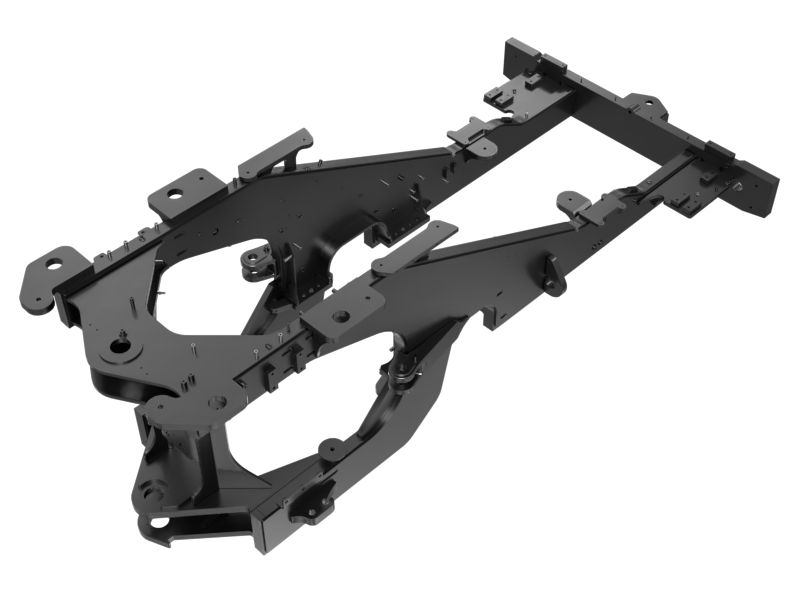

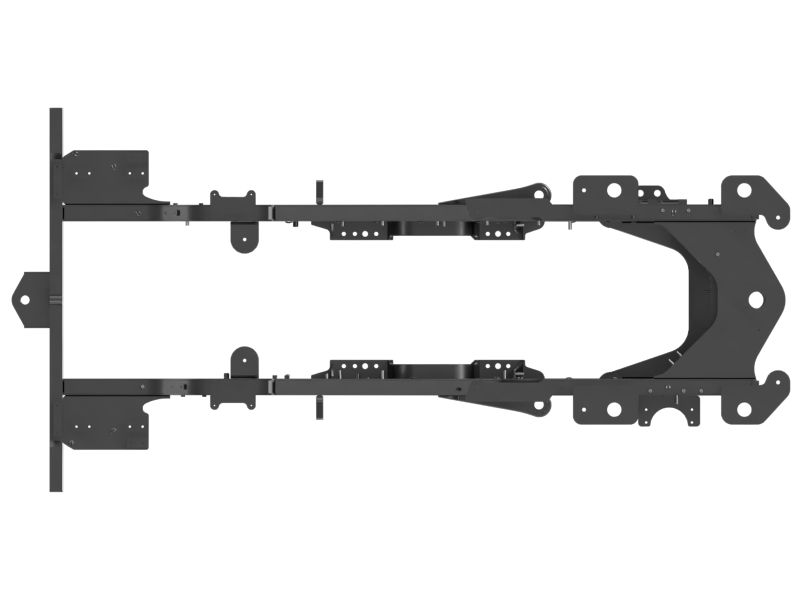

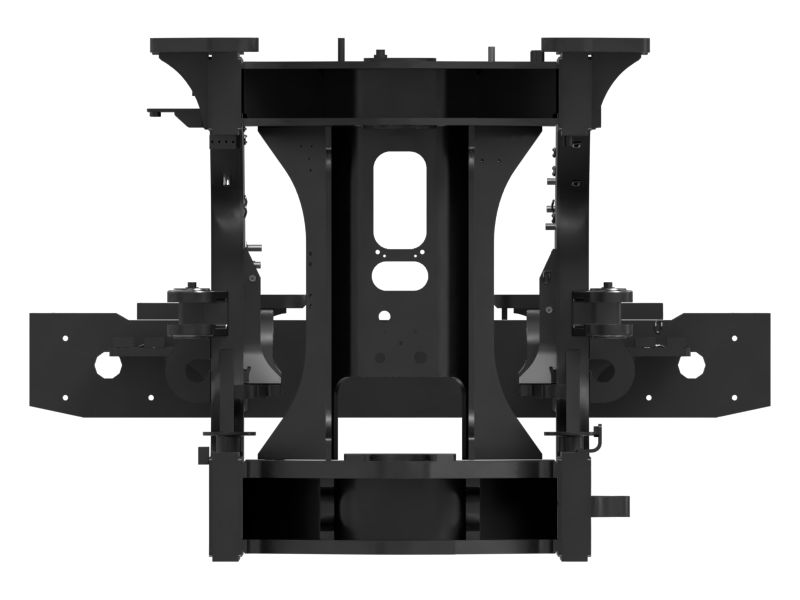

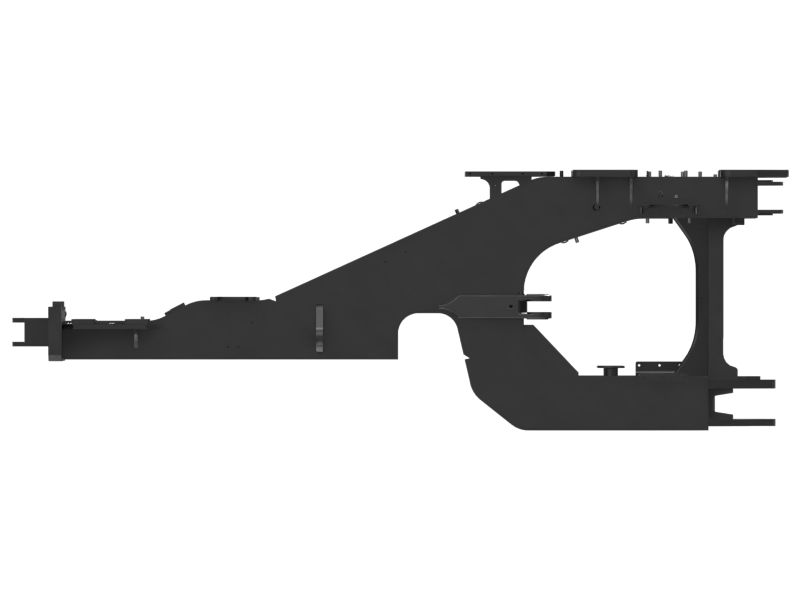

508-1961: Engine End Frame

An Engine End Frame is a metal structure that forms the rear boundary of the engine compartment. It often extends from the firewall to the front of the cab or operator's compartment. This frame is designed to withstand the vibrations, stresses, and impacts experienced during operation. The primary function of the engine end frame is to provide structural support to the engine assembly. It helps to maintain the alignment of engine components, prevents excessive movement or vibration, and protects the engine from external impacts or debris. Additionally, the end frame may serve as a mounting point for other auxiliary equipment, such as cooling systems, air filters, or hydraulic reservoirs.

Attributes:
• Constructed from high-strength material to ensure durability and withstand loads.
• Feature mounting brackets and attachment points for securing engine accessories and auxiliary systems
• Withstand high temperatures without deformation or structural compromise.
• Treated with protective coatings to resist corrosion and prolong its service life.

Applications:
An Engine End Frame is situated at the rear of the wheel loader engine compartment, adjacent to the firewall. It forms the boundary between the engine compartment and the rest of the equipment ensuring the structural integrity and efficient operation of the wheel loader by providing support and protection to the engine assembly.

• Material: Alloy Steel,Sealants / Adhesives Adhesive
