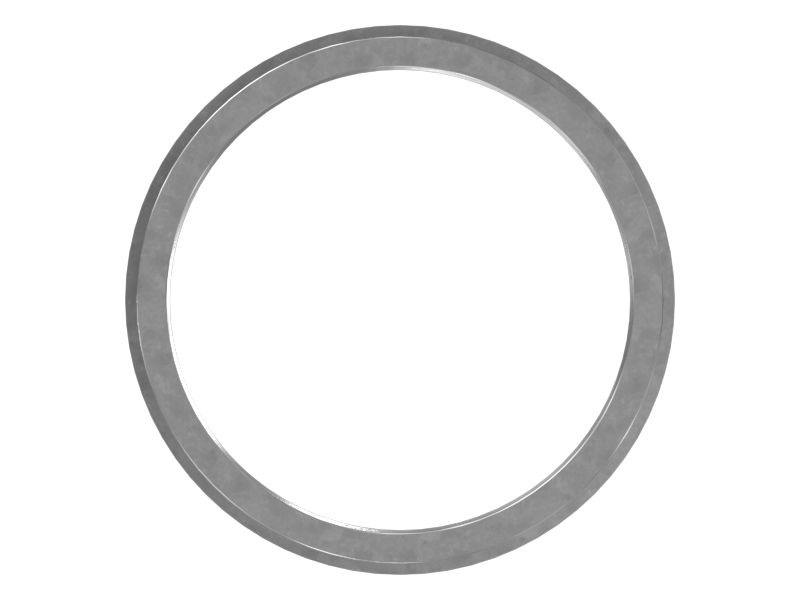

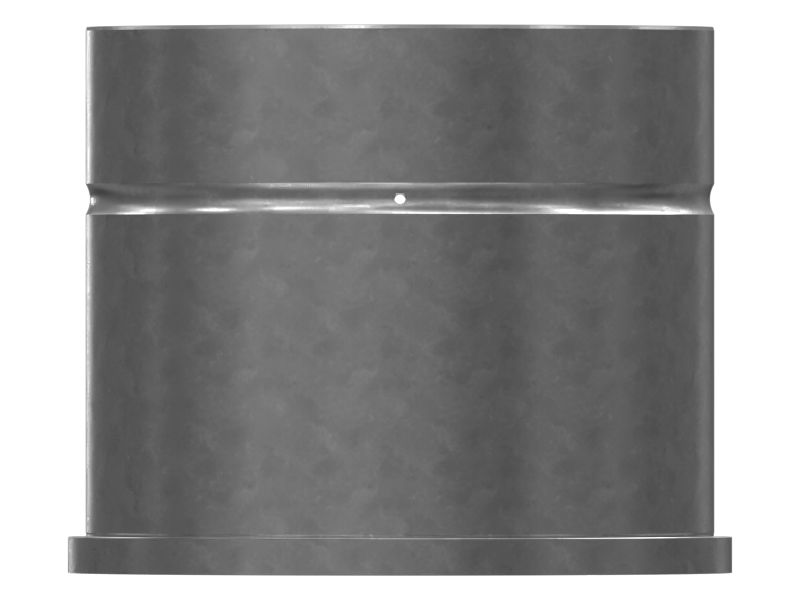

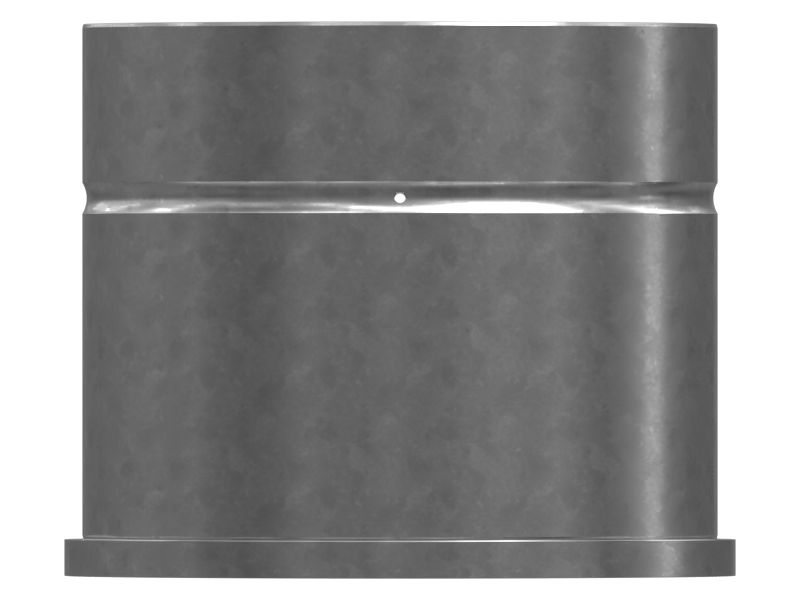

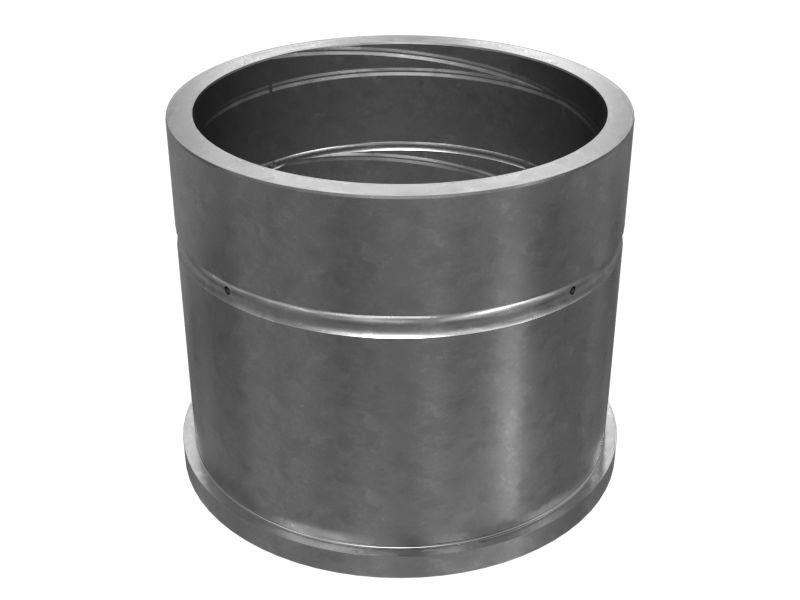

505-1285: ПОДШИПНИК МУФТЫ

Description:
Sleeve Bearings support rotational movement between machine frames, linkages, and work tools. They are found mostly in the arms and buckets of machines. Genuine Cat Pin and Sleeve Bearings are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, surface finish, and manufacturing processes, to each part to enable them to work and wear effectively with all the other neighboring and dependent parts.

Attributes:
• Flange sleeve bearing
• Material: High Strength Cast Brass
• Sleeve Inside Diameter: 470 mm (18.5039 in)
• Sleeve Outside Diameter: 530 mm (20.866 in)
• Overall Length: 460 mm (18.110 in)
• Cross Holes: Yes
• Internal Grooves: Yes

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Brass

• Outside Diameter (mm): 530 (Sleeve)

• Inside Diameter (mm): 470 (Sleeve)

• Overall Length (mm): 460

• Flange Diameter (mm): 560

• Cross Holes: Yes

• Internal Groove: Yes

• Outside Diameter (in): 20.866 (Sleeve)

• Inside Diameter (in): 18.5039 (Sleeve)

• Overall Length (in): 18.110

• Flange Diameter (in): 22.047

• Material: Manganese Bronze Brass
