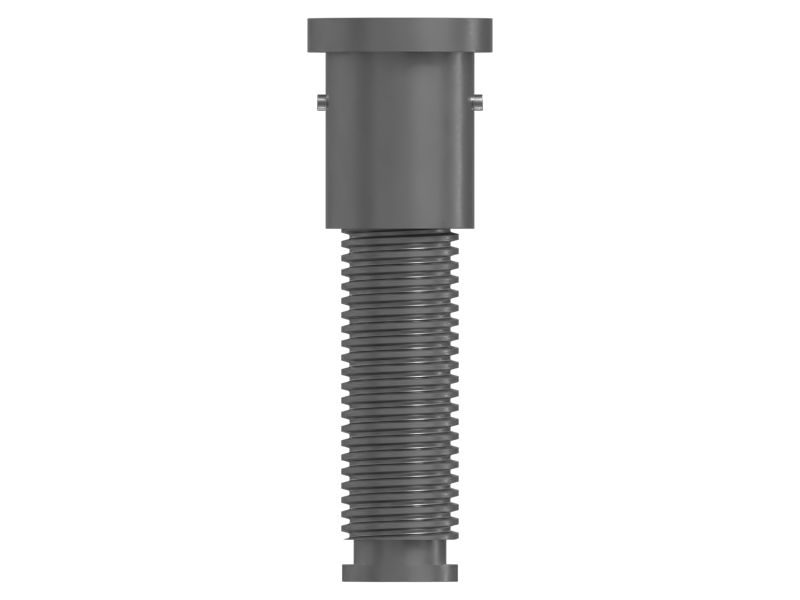

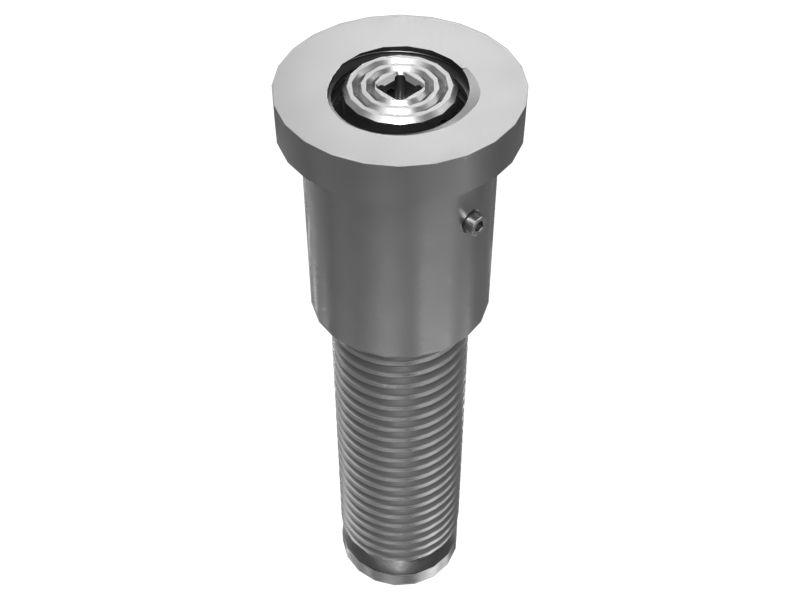

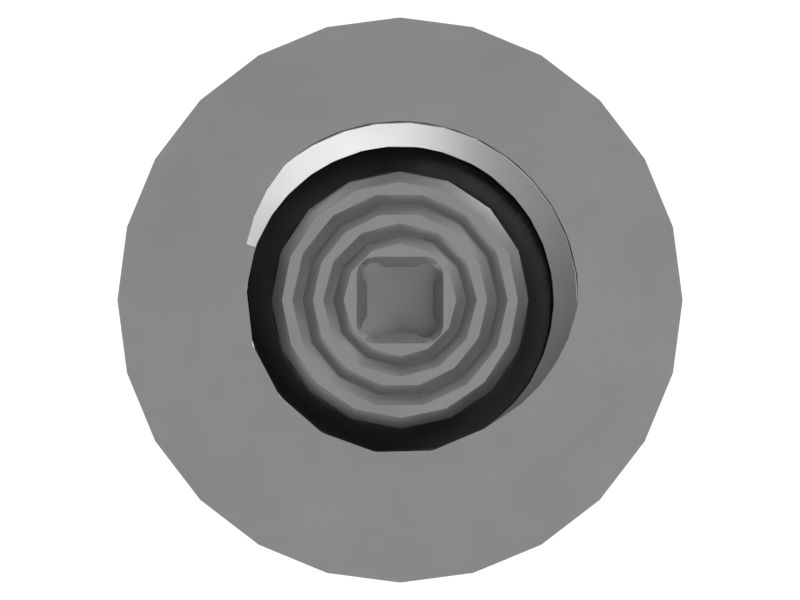

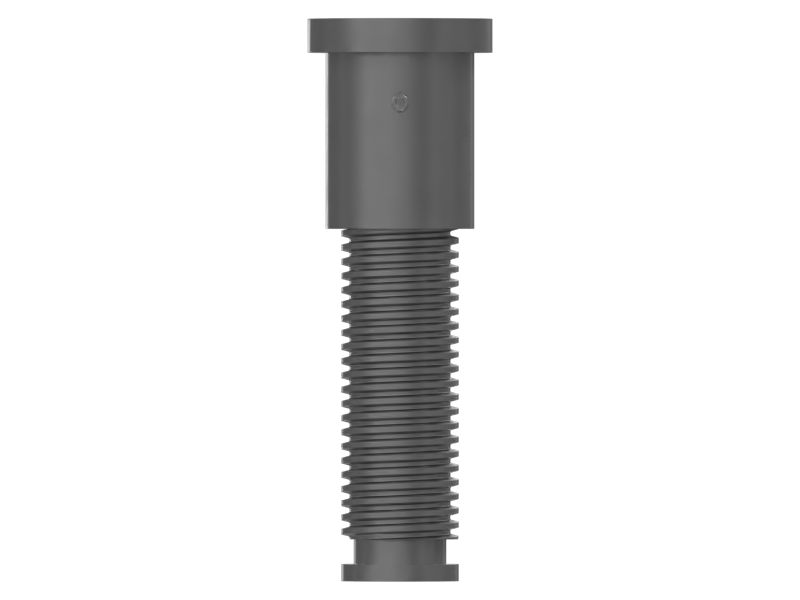

504-9805: 110mm Outer Diameter Rod Screw

The Rod Screw is a threaded component used to join and hold parts together within the 25-ton low-profile lift group assembly. It is used for high-strength fastening, providing consistent alignment and stability for lifting mechanisms. Its threaded structure allows for easy engagement and secure fitment, ensuring that the connected components stay in place even under high load pressure. During operation, the rod screw facilitates smooth load transfer between different elements of the lift group, supporting the controlled movement and handling of materials.

Attributes:
• Uniform thread spacing provides smooth engagement during installation.
• Efficient in transferring load forces within the lifting mechanism.
• High tensile strength supports high loads and prevents mechanical failure.

Applications:
The Rod Screw is positioned within the 25-ton low-profile lift group, where it fastens key components and helps maintain structural alignment during high-load lifting operations.

• Load Capacity (kg): 25000

• Load Capacity (lb): 55115.55

• Length (mm): 335

• Length (in): 13.189

• Outer Diameter (mm): 110

• Outer Diameter (in): 4.331

• Weight (kg): 11.8

• Weight (lb): 26.015

• Material: Steel,Carbon Steel
