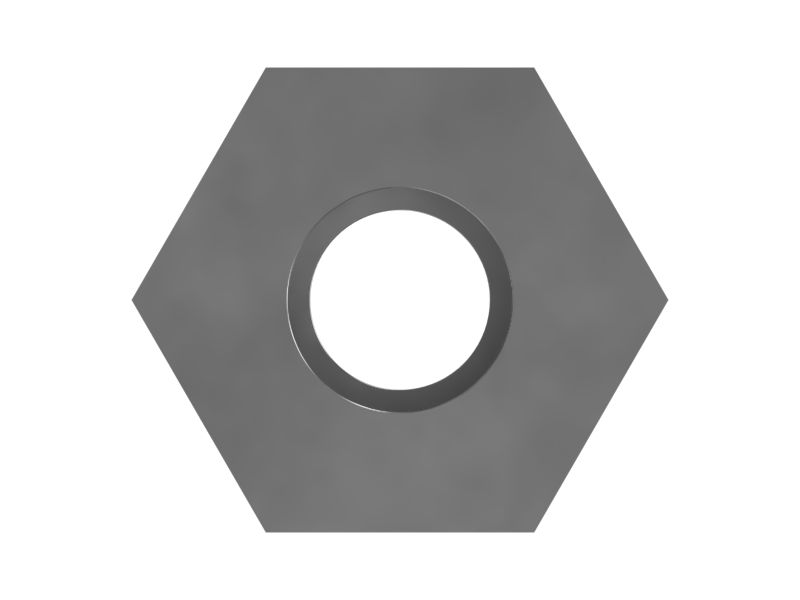

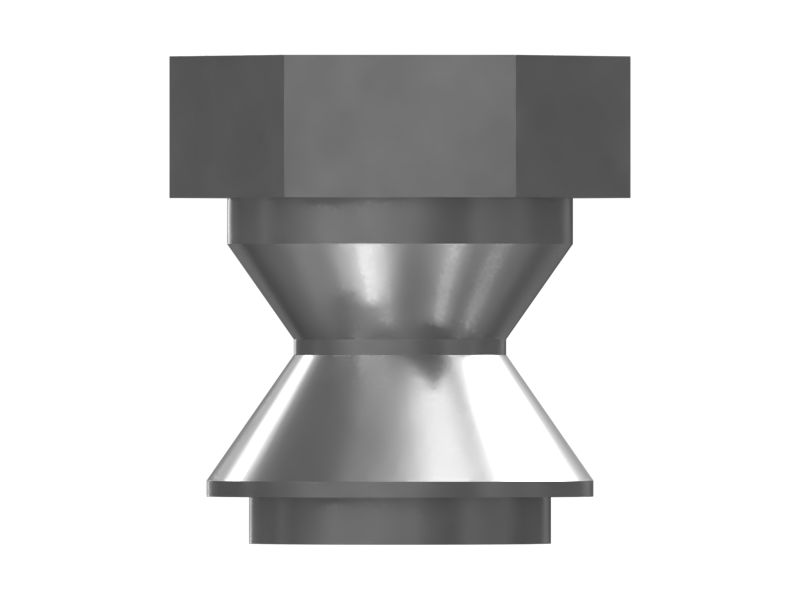

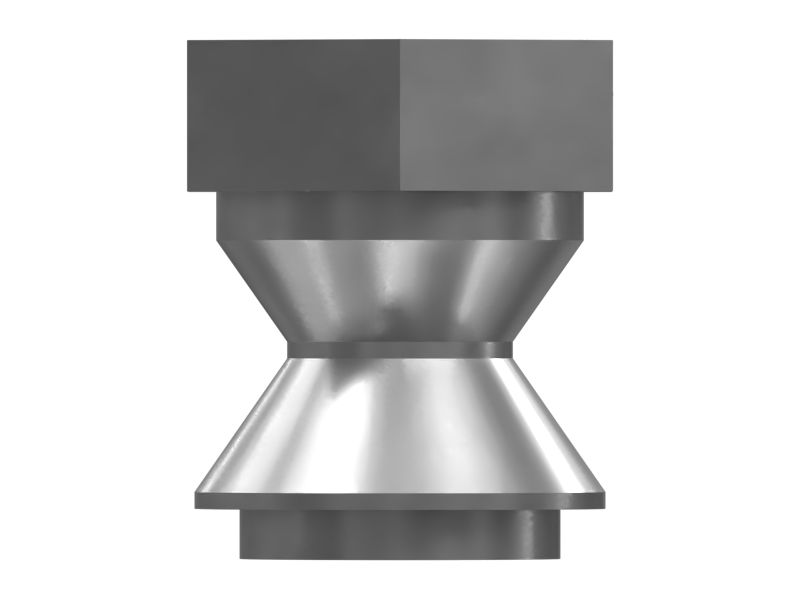

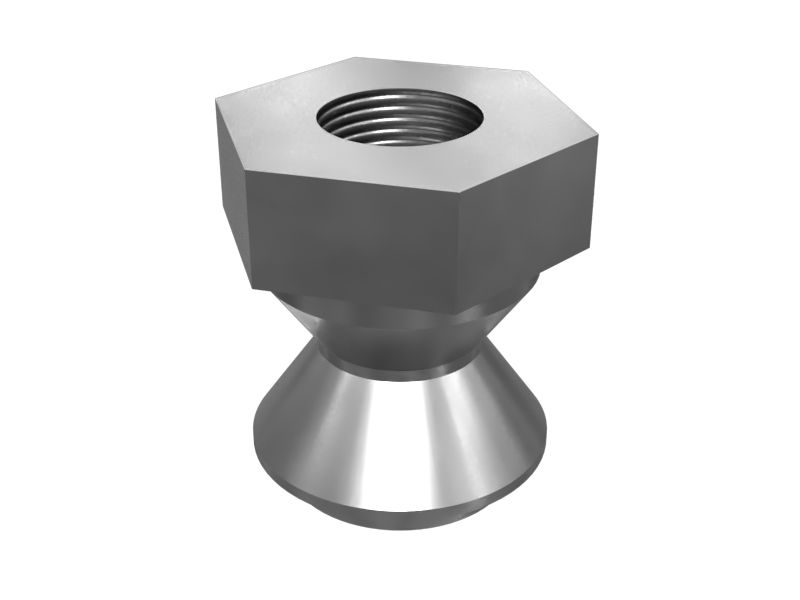

502-9478: ГАЙКА

A tamper-resistant nut, also known as a security nut or shear nut, is a specialized fastener designed to prevent tampering. tamper-resistant nuts have a unique design that makes them difficult to remove without the proper tools. This adds an extra layer of security by ensuring that only those with the proper tools can access the fastener.

Attributes:
Durable enough to withstand harsh environments
High strength and wear resistance

Applications:
A tamper-resistant nut is used to provide a high level of security and resistance to tampering, mostly used in Cat® 216, 216B, 226, 226B, 232, 232B, 232D, 232D3, 236D, 239D, 242B, 247B, 249D and 257B Skid Steers, 3003, 3003C, 3011C, 3013, 3013C, 3014, 3024, 3024C, C0.5, C0.7, C1.1, C1.5, C1.6, C1.7 and C2.2 Engine (Piston), 301.5, 301.6, 301.7, 301.8, 302, 302.7, 303, 303.5, 304, 304.5, 305, 305.5, 306.5, 307 and 307.5 Excavators, 901 Wheel Loader, AP255E, BB-621C, BB621E, CB-114E S, CB-214E, CB-224E, CB-225E, CB-334E, CB-335E, CB114E XW, CB14, CB22, CB24, CB32, CB34, CC24 and CC34 Paving Equipment, C1.1, C1.5, C2.2, D20, D25, D30, XQ20 and XQP20 Generator Set, C2.2 Power Systems, CB-334E, CB1.7, CB1.8, CB2.5, CB2.7, CB2.9, CB22B, CB24B, CB32B, CB34B, CB36B, CB4.0, CB4.4, CC2.6, CC2.7, CC24B, CC34B, and CC4.0 Compactor.

• Hex Size (in): 0.5

• Hex Size (mm): 12.7

• Material: Steel,Alloy Zinc,Corrosion Preventative Fluid,Car

• Thread: RH Coarse

• Nut Type: Hex

• Thread Size (in - TPI) (in): M6-1

• Weight (kg): 0.01

• Weight (lb): 0.02

• Thread Size (dia x pitch) (mm): M6x1

• Coating: Zinc

• Class or Grade: None

• Hand of Thread: RH
