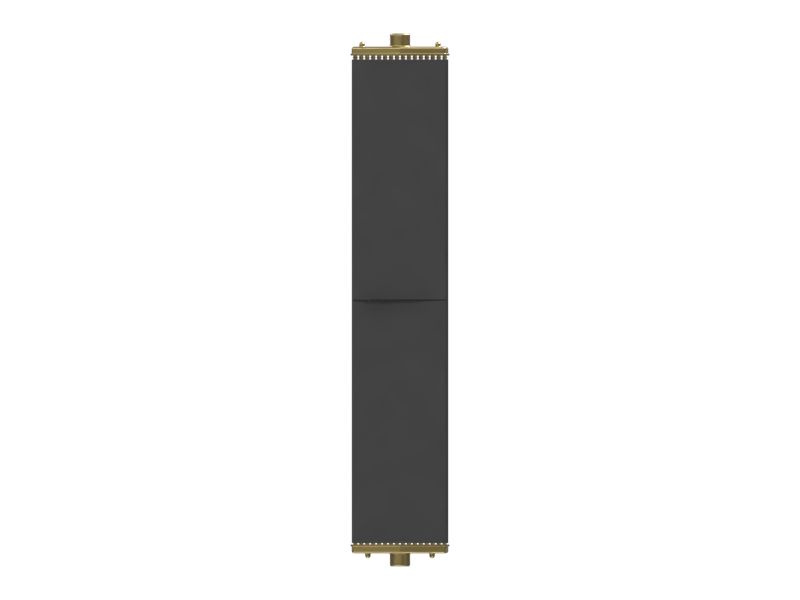

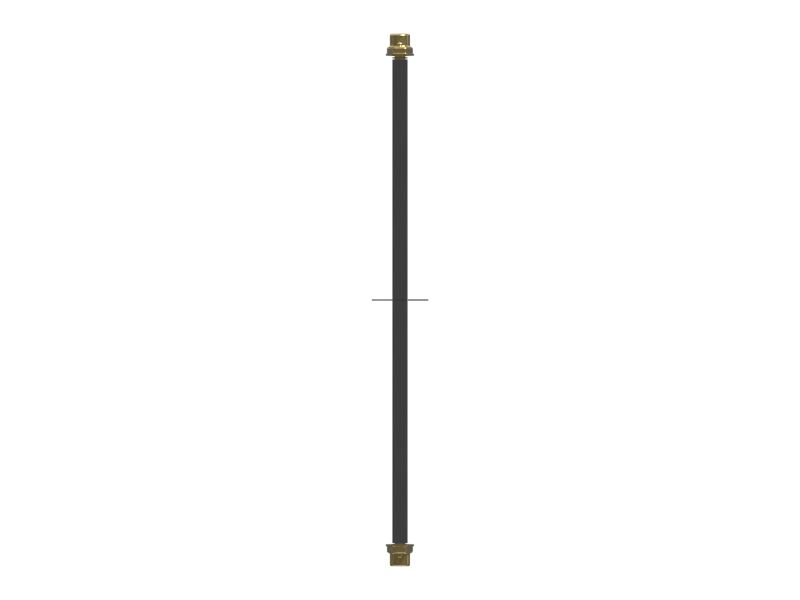

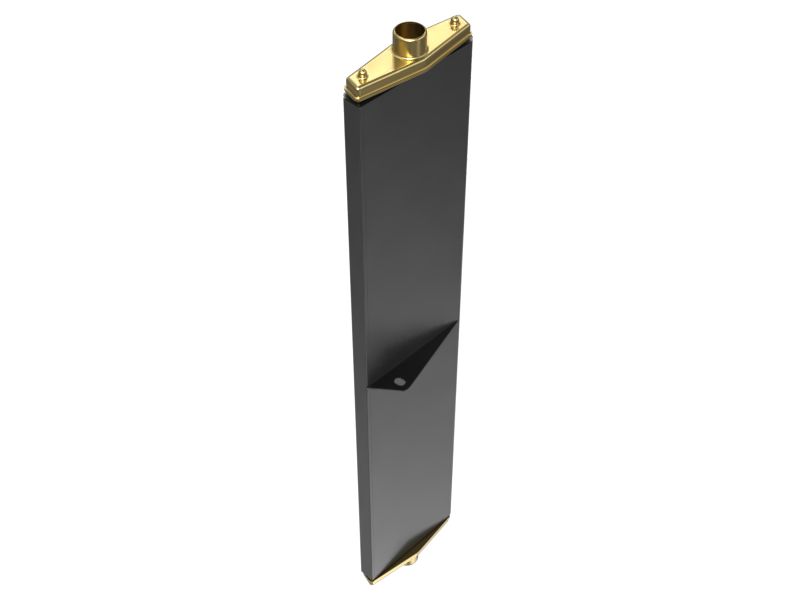

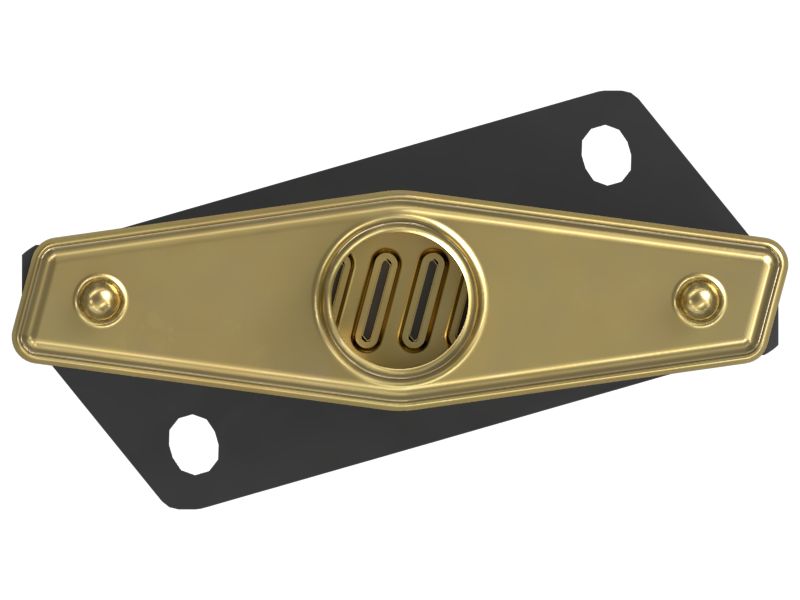

4W-4146: СЕРДЕЧНИК В СБОРЕ

A Folded Radiator Core is used to facilitate the transfer of heat from the engine coolant to the surrounding air, thereby cooling the coolant and maintaining the engine at an optimal operating temperature. It consists of a series of small tubes through which coolant flows, surrounded by a network of thin, flat fins. When the coolant enters the radiator core inlet header, it passes through the narrow tubes, heat is transferred from the coolant to the tube walls due to their close contact. The large surface area provided by the fins allows for enhanced heat dissipation, facilitating the transfer of heat from the tubes to the surrounding air.

Attributes:
• Provided with a folded structure design to offer a larger heat transfer surface area for improved cooling efficiency
• Provided with a maximum air pressure drop valve of 0.13 kPa to maintain consistent airflow and ensure optimal cooling performance
• Provided with air flow rate and water flow rate of 29.8 Kg/min and 30 L/min to promote efficient heat transfer

Applications:
A Folded Radiator Core serves as a heat exchanger, dissipating excess heat generated by the engine during operation, thereby maintaining the engine's optimal temperature and ensuring efficient performance.

• Material: Alloy Copper,Alloy Brass
