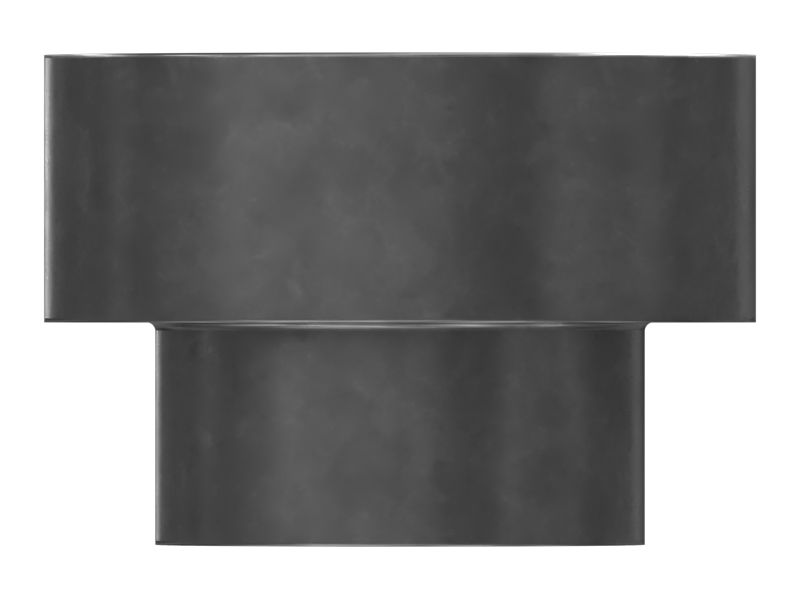

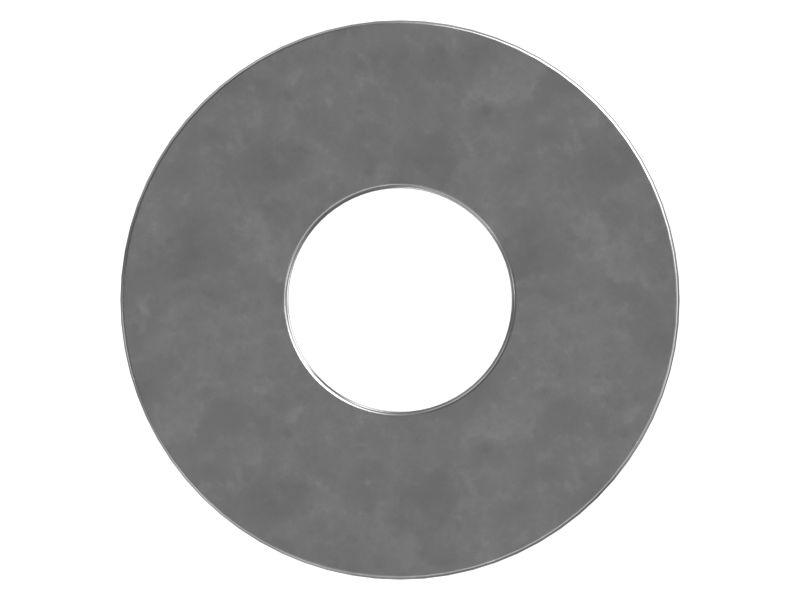

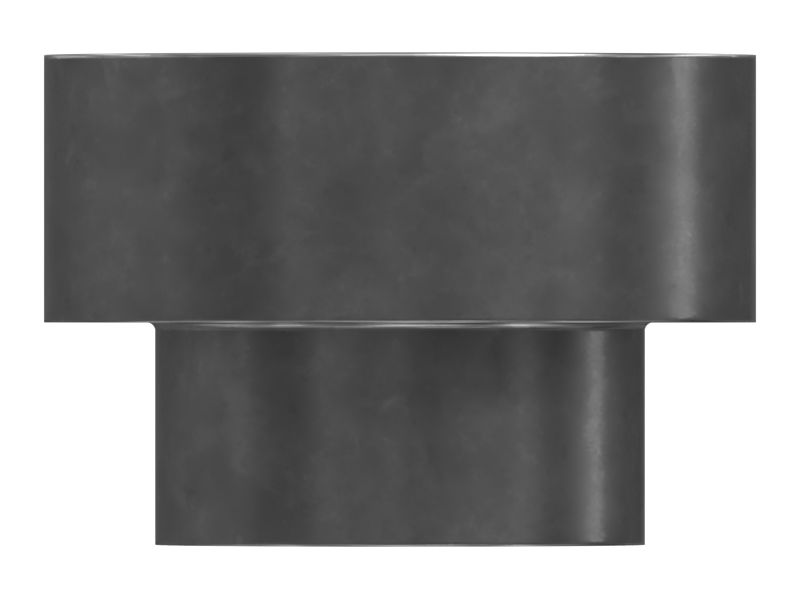

4V-5469: ПРОКЛАДКА

Description:
A Flange Spacer is designed to locate in between the bolt and lever mounted on the housing assembly, it is also known as a clearance spacer, which is a small cylindrical component used to create a space or distance between two objects or components. They can be used to separate and align components and to provide support and stability they come in a range of sizes and thicknesses.

Attributes:
• Handles high pressure without deforming or breaking.
• Provides high load-bearing capacity, which makes them ideal for heavy loads.
• Protect against damage by distributing the load uniformly and reducing the tension on the fastener.

Applications:
A Flange Spacer is used in the transmission control assembly, widely used in Cat 215 and 215B Excavators, 814B, 824C, and 834B Wheel Type Tractor, 815B, 816B, 825C, 826C, and 836 Compactor, 950B, 950E, 950F, 966D, 966E, 966F, 980C, 980F, 980S, 988B, 988F, 992C and 994 Wheel Loader, TR28 and TR35 Powertrain.

• Inner Diameter (in): 0.26

• Inner Diameter (mm): 6.5

• Outer Diameter (in): 0.62

• Outer Diameter (mm): 16

• Thickness (in): 0.43

• Thickness (mm): 11

• Material: Alloy Zinc,Carbon Steel
