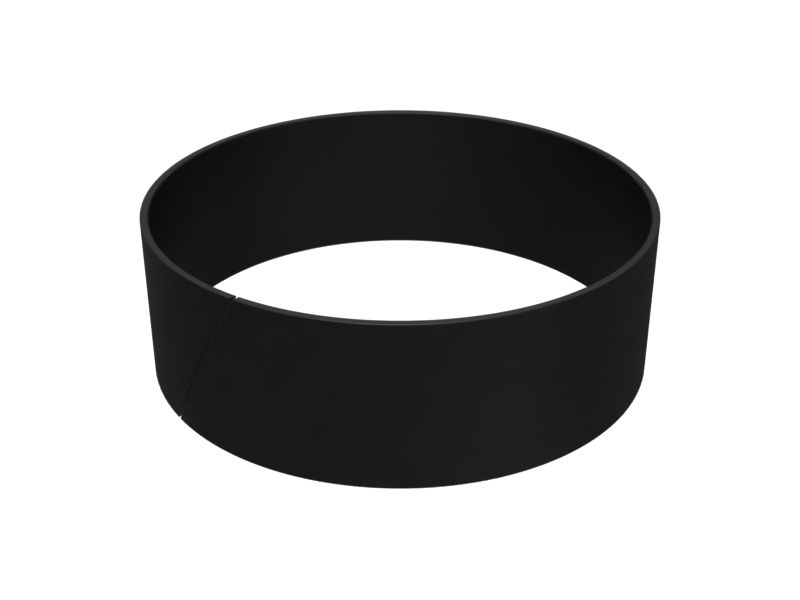

4T-6096: Износное кольцо поршня

The Lift Cylinder Wear Ring is used to prevent metal-to-metal contact between the moving parts of a cylinder, such as the piston and the cylinder or the rod and the cylinder head. It is also used for the sealing function of the hydraulic cylinder and helps maintain a proper seal between the piston and cylinder, preventing hydraulic fluid leakage and maintaining system integrity.

Attributes:
Able to withstand the operating temperature of the cylinder.
Manufactured to precise specifications and are built for durability and reliability

Applications:
The Lift Cylinder Wear Ring acts as a protective barrier, preventing direct metal-to-metal contact and reducing frictional losses, and enhancing its efficiency. They are widely used in Cat® 787B, 789, 789B, 789C, 789D, 789D, 789D, and 793 Trucks.

• Axial Thickness (mm): 101.27

• Inner Diameter (in): 12.03

• Inner Diameter (mm): 305.51

• Material: Plastic,Nylon, 6, 6/12, 6/6 Plastic,Mixed Plastic

• Outer Diameter (in): 12.25

• Outer Diameter (mm): 311.15

• Radial Thickness (mm): 4.78

• Ширина — A (+/- 0,03 дюйма) (дюймы): 4,00

• Наружный диаметр (дюймы): 12,25

• Наружный диаметр (мм): 311,15

• Ширина — A (+/- 0,762 мм) (мм): 101,60

• Внутренний диаметр — B (+/- 0,08 дюйма) (мм): 301,41

• Внутренний диаметр — B (+/- 0,08 дюйма) (дюймы): 11,87
