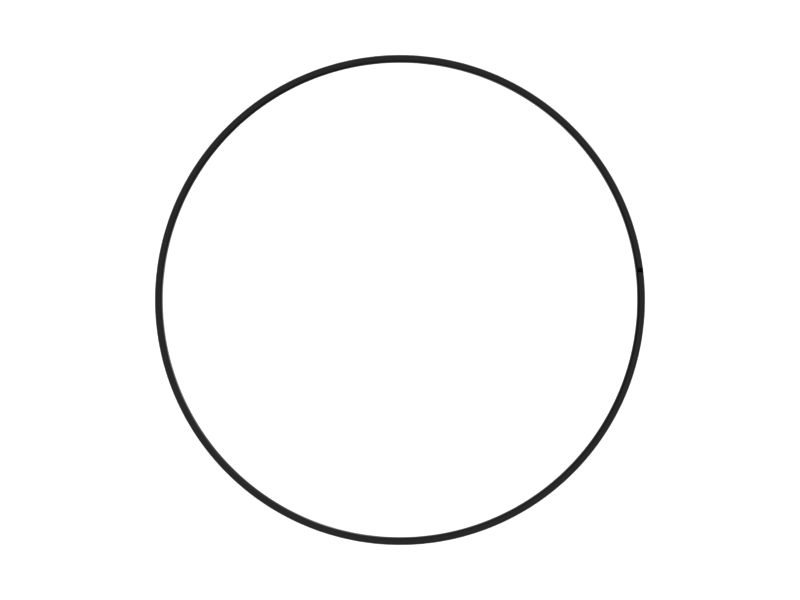

4T-5949: Износное кольцо поршня

Description:

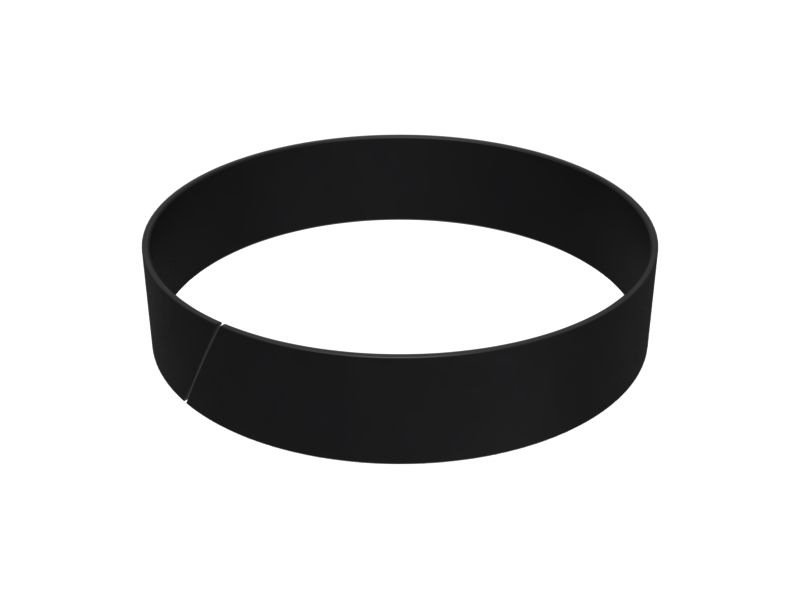

The Wear Ring is designed to fit snugly into a groove on the piston or cylinder wall, creating a tight seal that prevents hydraulic fluid from leaking out of the cylinder. It also helps to prevent dirt, dust, and other contaminants from entering the cylinder, which can cause damage to the internal components and reduce the overall performance of the hoist. The ring is made of a durable plastic material that is resistant to wear and tear.

Attributes:
● Manufactured to withstand varying pressures and temperatures
● Provides resistance to chemicals and other environmental factors

Applications:
A Wear Ring is used to seal the clearance between the mating parts, this is mostly used in Cat 783B, 785, 785B, 785C, 785D, and 785G Trucks.

• Axial Thickness (mm): 49.75

• Inner Diameter (in): 9

• Inner Diameter (mm): 228.6

• Material: Plastic,Mixed Plastic Plastic,Plastic Plastic,Nyl

• Outer Diameter (in): 9.25

• Outer Diameter (mm): 235

• Radial Thickness (mm): 3.15

• Ширина — A (+/- 0,03 дюйма) (дюймы): 1,97

• Наружный диаметр (дюймы): 9,25

• Наружный диаметр (мм): 234,95

• Ширина — A (+/- 0,762 мм) (мм): 50,00

• Внутренний диаметр — B (+/- 0,08 дюйма) (мм): 228,37

• Внутренний диаметр — B (+/- 0,08 дюйма) (дюймы): 8,99
