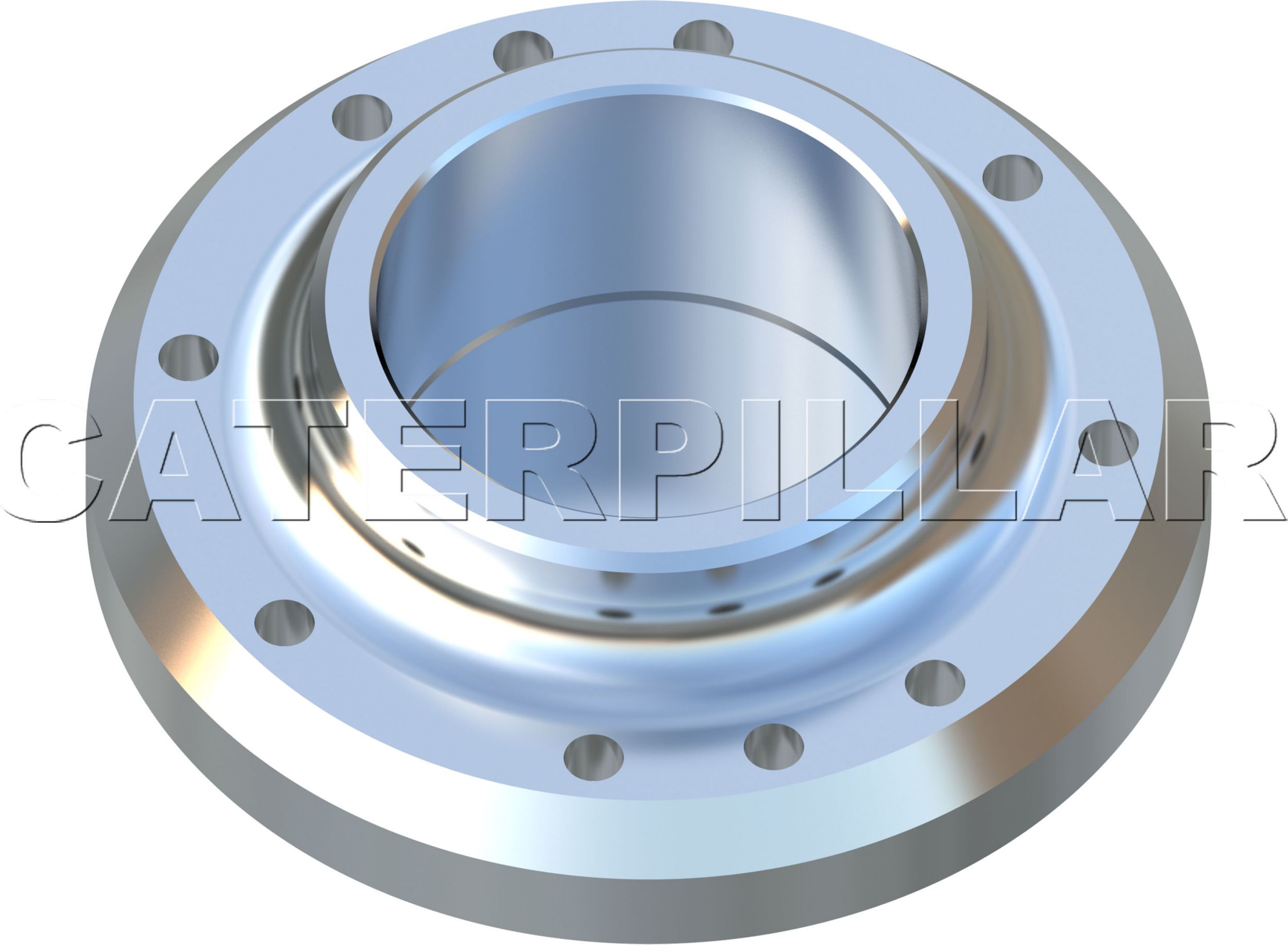

4P-2948: КОЛЬЦО

The Fuel Injection Pump Guide Ring is located between the camshaft and the housing in a fuel injection system. Its primary function is to provide stability and guidance to the camshaft within the housing, ensuring precise movement and alignment of the camshaft during operation.

Attributes:
Withstand the operating conditions of the application, such as pressure, temperature
Manufactured to precise specifications and are built for durability and reliability

Applications:
The Fuel Injection Pump Guide Ring provides stability, guidance, and protection to the camshaft, it ensures proper fuel delivery and helps to maintain the overall performance. This is widely used in Cat® 16G and 16H Motor Grader, 245, 245B, 245D, 330, 375, and 5080 Excavators, 3054C, 3116, 3306B, 3406, 3406B, 3406B, 3406C, 3406C, 3406E and 3408E Engine, PF-300C, PM-465, PS-300C, RM-250C, RM-350, RM-350B, RR-250, RR-250B, SM-350, SS-250 and SS-250B Paving Equipment, D35-HP, D350E, D400, D400D, D400E and D40D Articulated Truck, D8, D8K, D8N and D8R Track Type Tractor, TH38, TR35 and TR43 Powertrain.

• Inner Diameter (in): 2.92

• Inner Diameter (mm): 74.07

• Material: Steel,Low Alloy Steel

• Outer Diameter (in): 6.03

• Outer Diameter (mm): 153.14

• Thickness (in): 1.75

• Thickness (mm): 44.46
