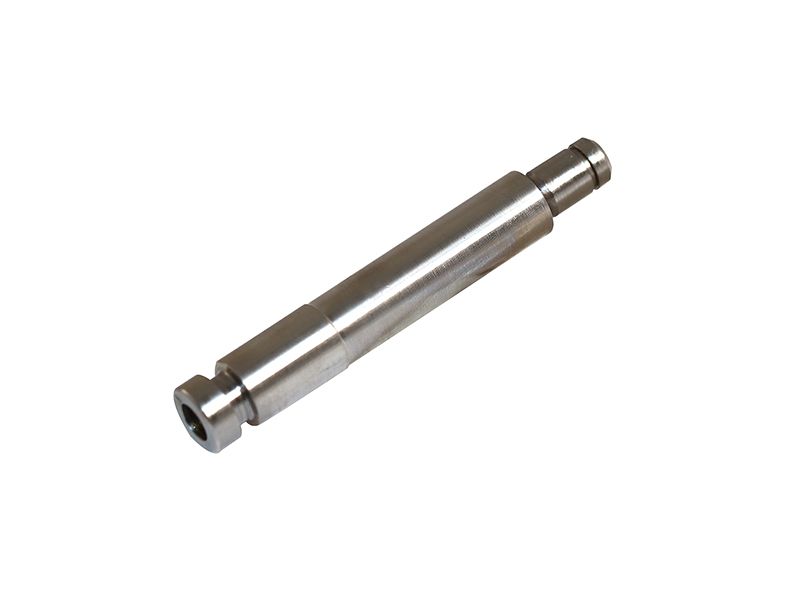

4N-0523: ШТИФТ

Description:
A Ring Groove Dowel Pin is used in Governor and Fuel Injection Pump to provide support and alignment for the load stop lever. The Grooves are typically used to place the retaining ring. It is designed to withstand the high stresses and temperatures generated during operation.

Attributes:
• High resistance to corrosion
• Manufactured to precise specifications and are built for durability and reliability

Applications:
A Ring Groove Dowel Pin is used to ensure accurate alignment for load stop lever, this is widely used in Cat 1160, 1160, 3160, 1673C, 3306, 3160, 3208, 3306, 3406, 3406C, 3406E, 3412, 3612, 3616, C15, D330C, 3304, D333C, and D333C, 3306 Engine (Piston), 120, 120, 120B, 120B, 120G, 12E, 12F, 12G, 130G, 140B, 140G, and 14G Motor Grader, 215, 225, 225B, 225D, 229, 231D, 235, 235B, and 235C Excavators, 227 and 950 Tree Harvester, 3208 and 3304 Generator Set, 460, 613, 613B, 613C, 621, 623, 627B, 637, and 814 Wheel Tractor Scrapers, 518 and 528 Skidder, 561C, 561D, 571F, 571G, 572F, and 572G Pipelayer, 65, 65B, D10N, D3, D4D, D4E, D4L, D5, D5B, D6C, D6D, D7F, and D7G Track Type Tractor, 815, 816, 825C, and 826C Compactor, 824C Wheel Type Tractor, 910, 916, 920, 930, 930R, 930T, 950, 966C, 966D, 966E, 966R, 980B, 980C, 980F, 980G, G916, IT18, IT18B, R2900, R2900G, and R3000H Wheel Loader, 931, 941, 941, 941B, 943, 951B, 951C, 951C, 955K, 955L, 955L, 963, 963B, 977K, 977L, and 977L Track Loader, AH40, AH46, AH52, AH46, AH60, AM30, AM36, AM40, AM40, V1100 CTH, V160, V180, V160B, V180B, V200B, V160HF, V180HF, V200HF, V225HF, V165C, V180C, V200C, V165C, V200C, V200, V200, V225, V200B, V225B, V200C, V225C, V225C, V250C, V250, V300, V250B, V300B, V250B, V300B, V330B, V265C, V300C, V330C, V550, V620, V700, V800, V900CH, V925, and V925LH Lift Truck, C15 Engine-General Platform, C15 Engine-General Platform (C15), CB-614, PR-1000, PR-1000C, and PS-500 Paving Equipment, TR13, TR16, TR28, TR35, and TR43 Powertrain.

• Head Diameter (in): 0.36

• Head Diameter (mm): 9.03

• Length (in): 2.38

• Length (mm): 60.45

• Material: Stainless Steel

• Pin Diameter (in): 0.34

• Pin Diameter (mm): 8.76
