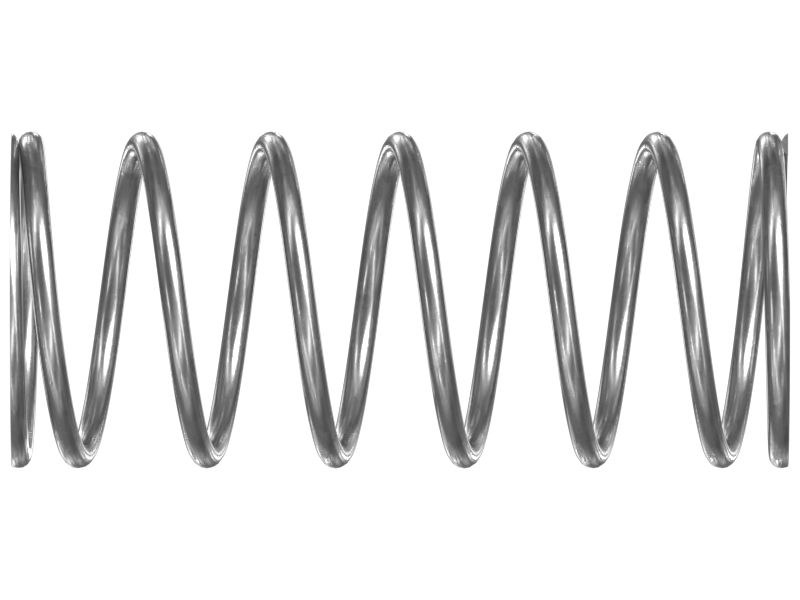

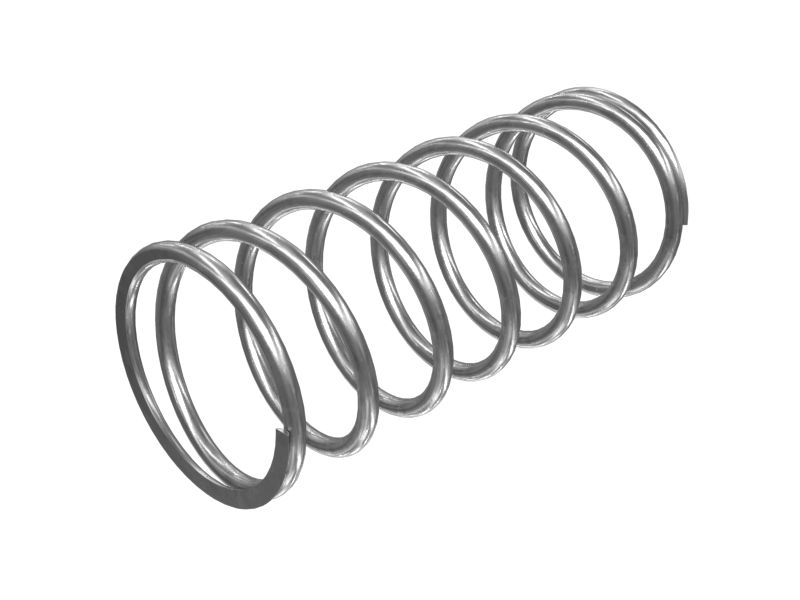

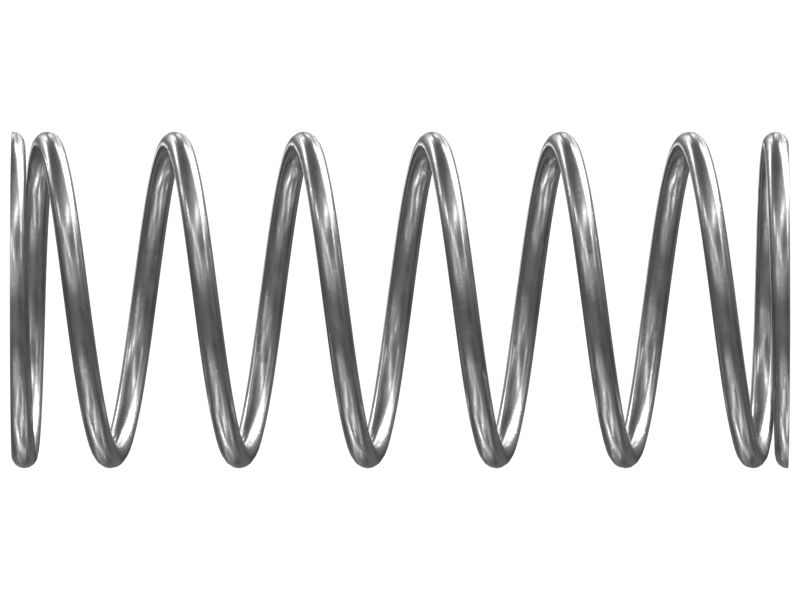

4J-3832: ПРУЖИНА

Description:
A Compression Spring is used in Valves to provide to close or open the valve. The compression spring is typically located inside the valve body and is compressed when the valve is in the closed position. As the spring compresses, it stores potential energy that is released when the valve is opened. This energy is then used to control the flow of fluid or gas through the valve.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Solid length of the Spring is 18.49mm
• Provided With Right-hand wound helical coil helps to maintain their shape and stability
• Provided with Square Ends because they provide a secure and stable for the spring to sit on a device or an assembly and Ground with 270°

Applications:
A Compression Spring is used in Valves to provide the required amount of force when compressed, this is widely used in Cat 345 OEM Applications, 436C, 446, 446B, and 446D Backhoe, 615 Wheel Tractor Scrapers, 786 Bottom Dump Body, 786 Truck, 834B Wheel Type Tractor, 936, 936E, 936F, 988, 988B, 992, 992B, 992C, 994, 994D, IT28 and IT28B Wheel Loader, D6H, D6R, D7H, D7R, D8N and D9R Track Type Tractor, TA29, TH35, and TR35 Powertrain.

• Inner Diameter (in): 1.04

• Inner Diameter (mm): 26.33

• Length (in): 2.81

• Length (mm): 71.37

• Outer Diameter (mm): 30.96

• Outside Diameter (in): 1.22

• Spring Type: Compression

• Wire Size (in): 0.09

• Wire Size (mm): 2.31

• Material: Alloy Steel
