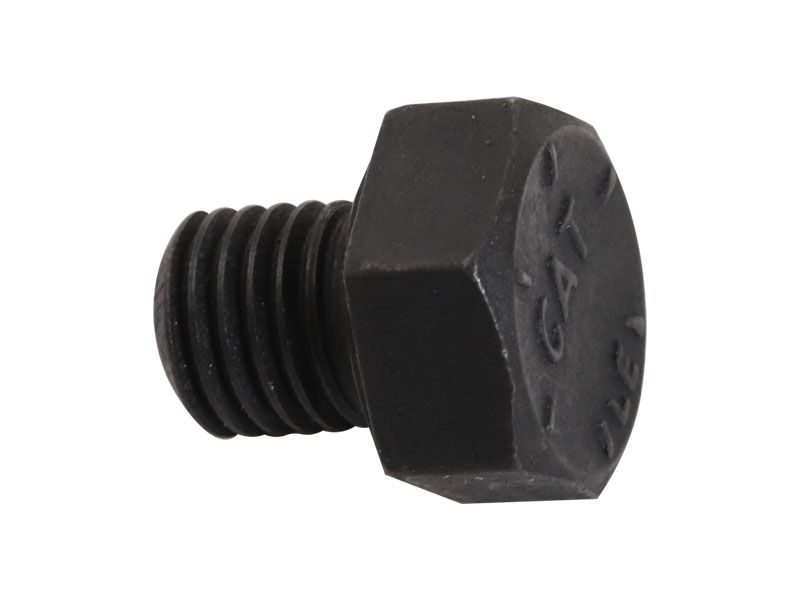

4H-1350: БОЛТ

A Hex Head Bolt is used to provide a secure and reliable connection between two or more objects. It is made from high-strength Steel material to withstand high loads and harsh working conditions. The Head design provides a low-profile surface with no protrusions. The primary purpose of the bolt is to maintain the desired alignment and prevent loosening over time.

Attributes:
• Hex shape provides multiple contact points, enabling increased torque application during tightening or loosening
• Provided with precise specifications to fit accurately

Applications:
A Hex Head Bolt is used in the latch part of the clutch and starter pinion setup and it acts as a fastening and securing mechanism, ensuring stability and preventing unintentional disassembly.

• Bolt Length (mm): 8.57

• Material: STEEL,Alloy Zinc,Carbon Steel

• Thread Size (in - TPI) (in): 5/16-24

• Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines

• Thread Size (dia x pitch) (mm): 5/16x24

• Class or Grade: SAE J429 Grade 8 (150 ksi)

• Coating: Zinc Phosphate + Oil

• Hand of Thread: RH
