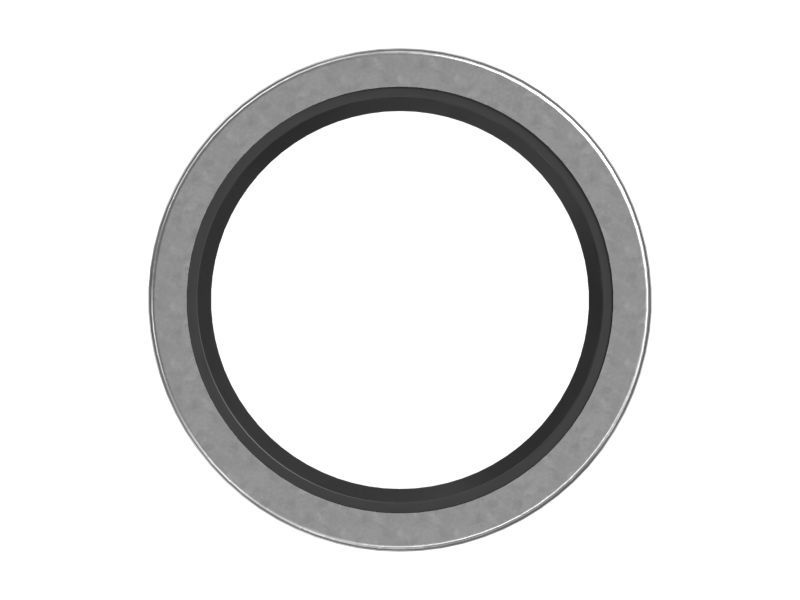

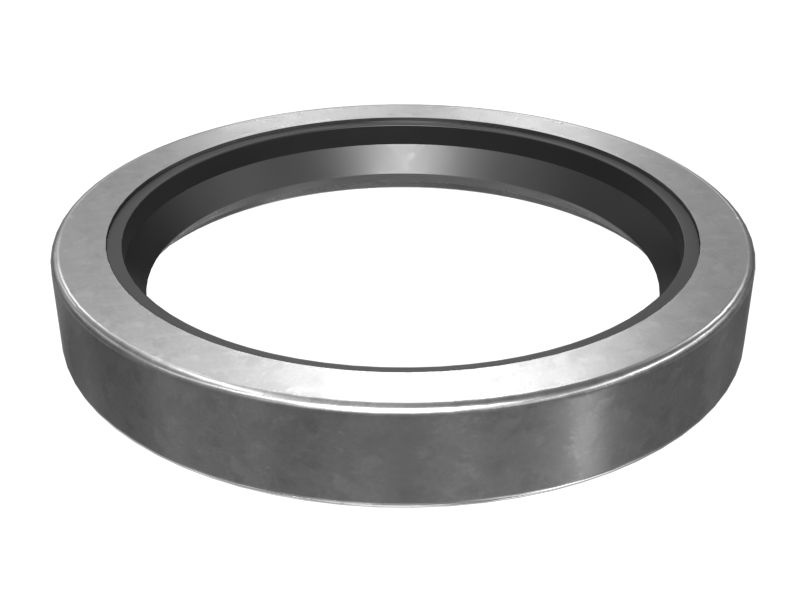

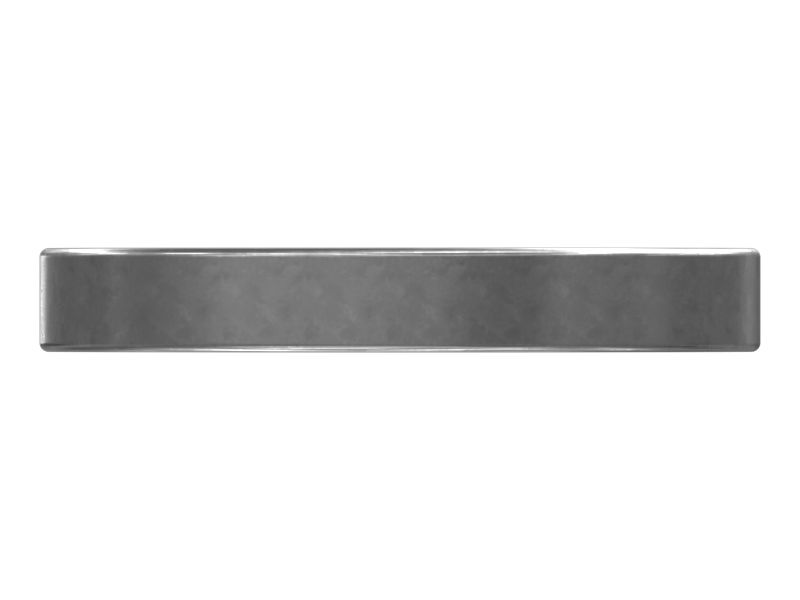

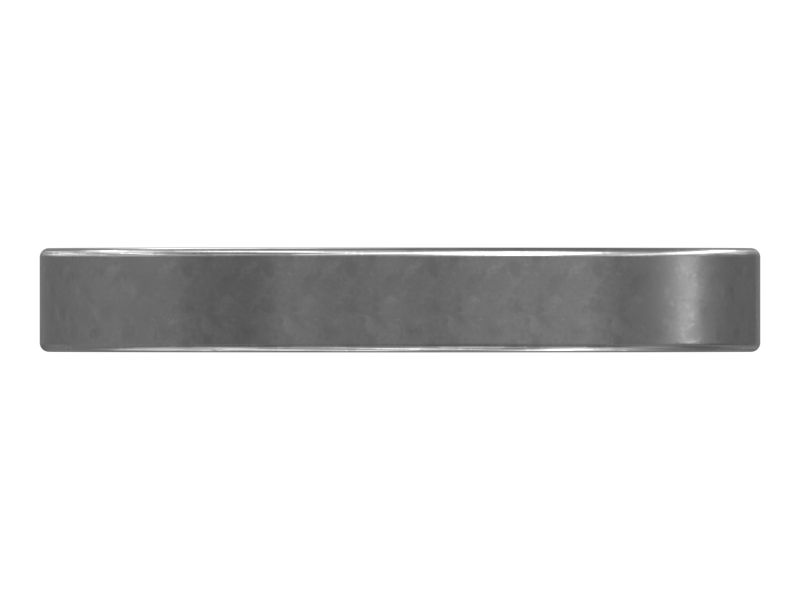

4F-6888: УПЛОТНЕНИЕ

Description:
A Frame Pin Lip Type Seal is a ring-shaped elastomeric seal that is designed for use around a groove. Used to prevent lubricant from leaking out of the joints and bearings that connect the various components of the machine. It is specifically designed to Seal the gap between the frame and pin of the loader bucket.

Attributes:
• Improves performance by reducing the friction between the Pin and Bore.
• Withstands Oil Operating temperature to a maximum of 107 degrees Celsius.

Applications:
A Frame Pin Lip Type Seal is used to protect contaminants from entering the Frame and Bearings, mostly used in Cat 112, 12, and 14B Motor Grader, 6, 955C, 955E, 955F, 977D, 977E, D4, D6, and D8 Track Type Tractor, 930, and 930R, 930T Wheel Loader, D315, D315G, D318, D318G, D326, D337, D3400, D364, D375, D375D, D386, D397, and D397D Engine (Piston), DW10, DW15, DW15C, DW20, DW21, and DW21C, DW21D, DW21G Wheel Tractor Scrapers, DW15 4 Wheel Tractor - Direct Drive.

• Inner Diameter (in): 2.63

• Inner Diameter (mm): 66.68

• Material: Rubber,Plastic Plastic,Nitrile / NBR / HNBR / XNB

• Outer Diameter (in): 3.49

• Outer Diameter (mm): 88.54

• Thickness (in): 0.5

• Thickness (mm): 12.7

• Weight (kg): 0.08

• Weight (lb): 0.18
