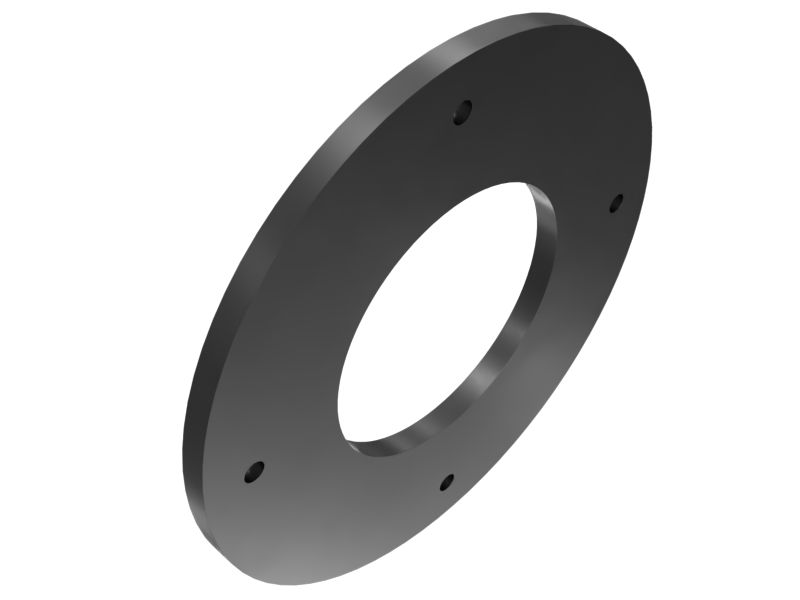

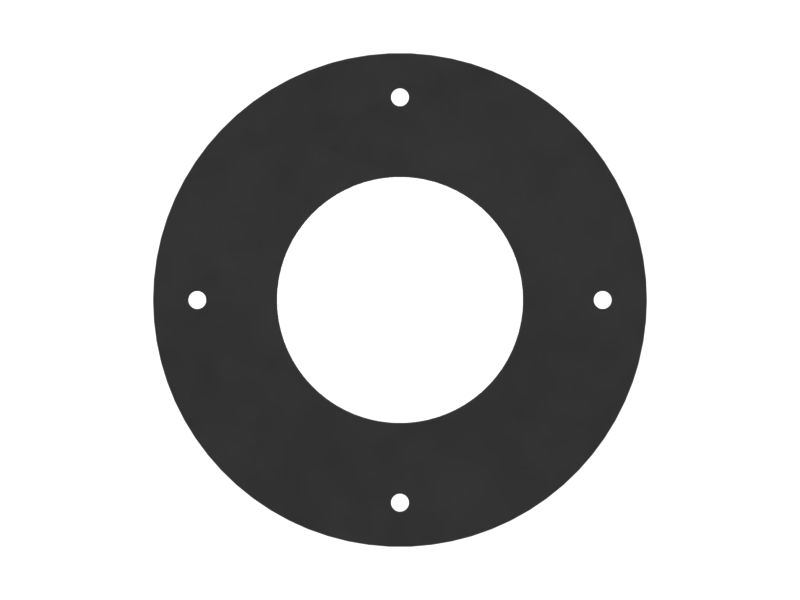

4C-8152: Hydraulic Cylinder Retaining Plate

A Hydraulic Cylinder Retaining Plate distributes the forces and loads exerted by the hydraulic cylinder evenly across the mounting points, reducing stress and wear on the cylinder and the surrounding components. It prevents the cylinder from moving or shifting during operation, ensuring precise and consistent movement and positioning of the hydraulic actuator.

Attributes:
• Reduces the risk of accidents or malfunctions caused by loose or improperly secured hydraulic cylinders
• Provided with 4 mounting holes of size 11mm to fit with a fastener

Applications:
A Hydraulic Cylinder Retaining Plate secures and supports hydraulic cylinders in place. Hydraulic cylinders are responsible for converting fluid power into mechanical force to perform tasks such as lifting, pushing, pulling, and bending.

• Material: Steel,Carbon Steel,Coating Mixed

• Outer Diameter (mm): 292

• Outer Diameter (in): 11.496

• Inner Diameter (mm): 146

• Inner Diameter (in): 5.748

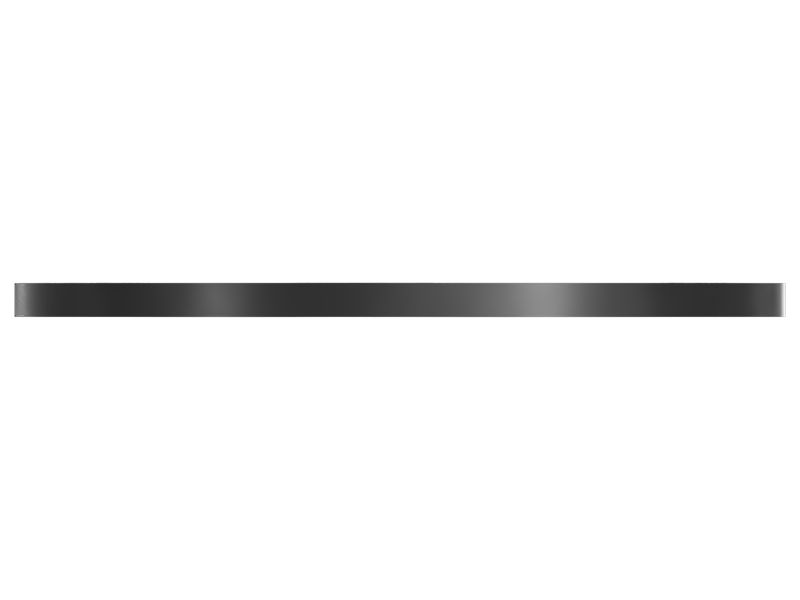

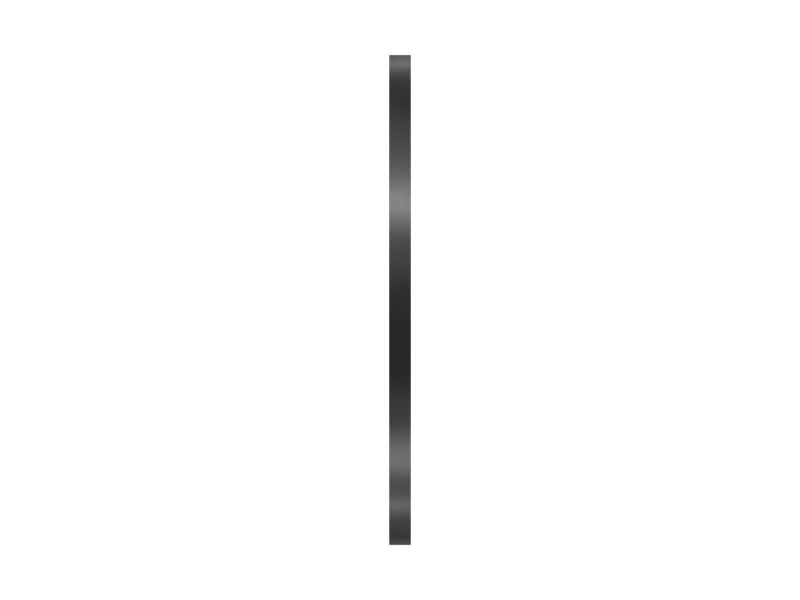

• Thickness (mm): 12.7

• Thickness (in): 0.5

• Hole Size (mm): 11

• Hole Size (in): 0.433

• Weight (kg): 4.958

• Weight (lb): 10.93
