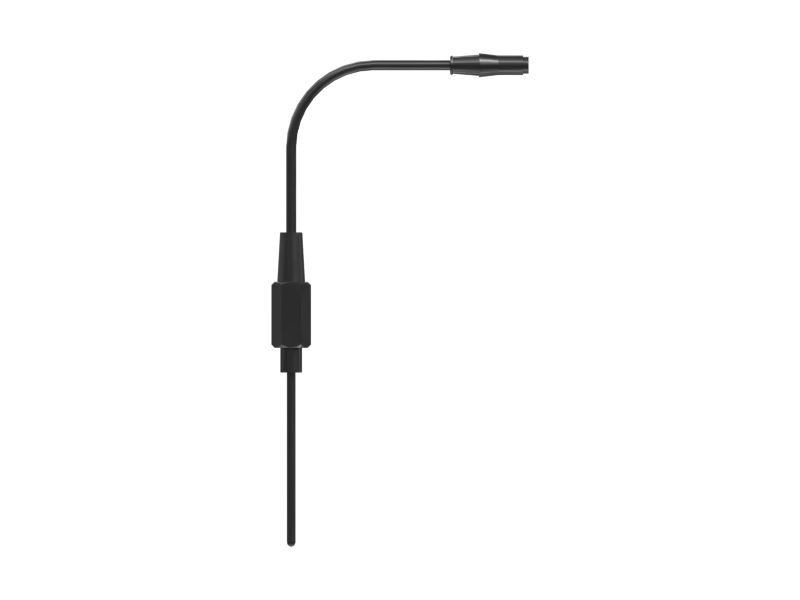

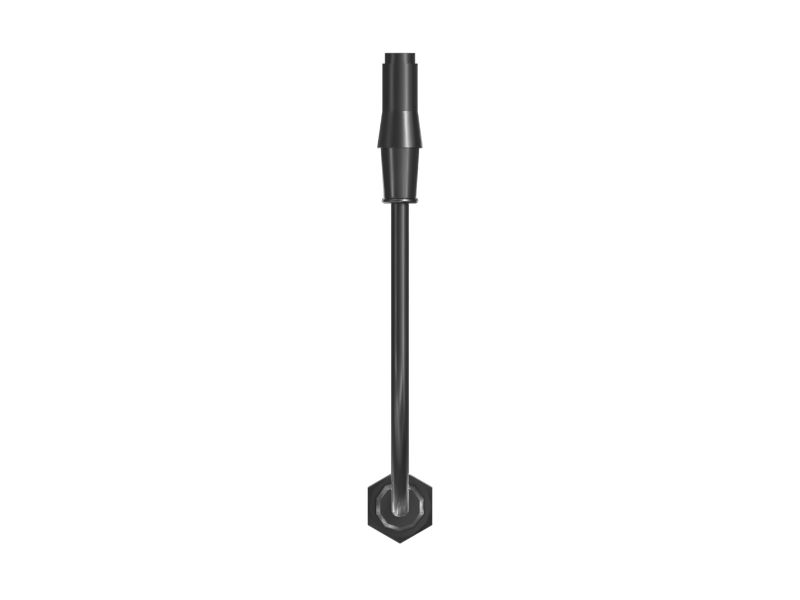

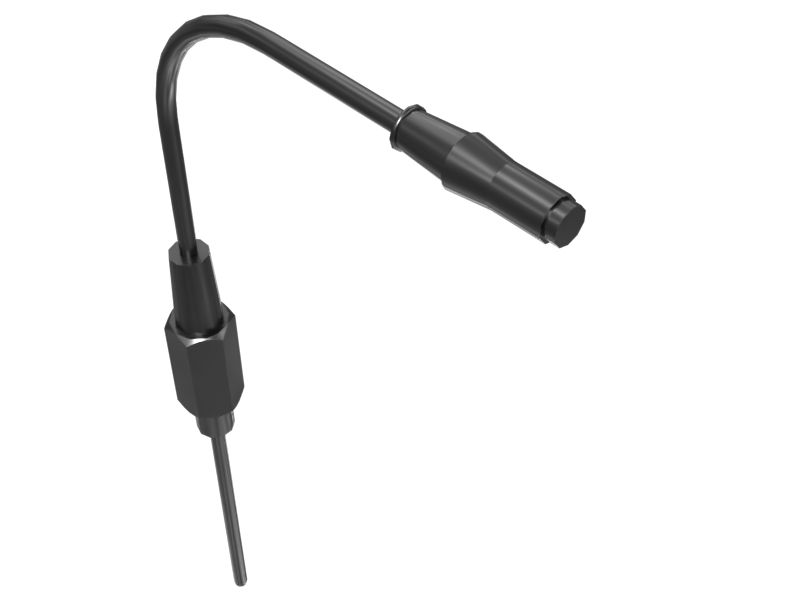

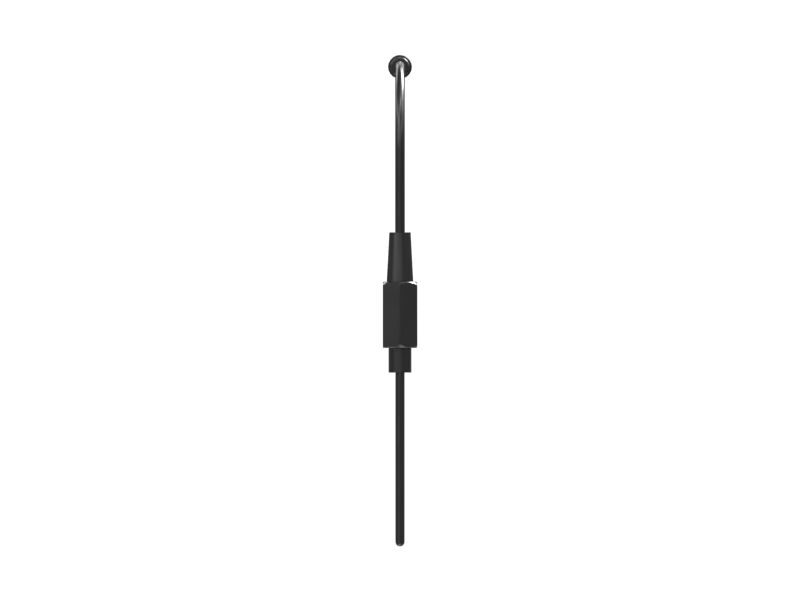

4C-6266: Resistance Temperature Detector Probe

A Resistance Temperature Detector Probe is used to accurately measure and monitor temperature levels in various parts of the machine. It works by converting temperature changes into changes in electrical resistance, which can be measured and interpreted by connected electronic devices. By detecting temperature changes, the probe helps ensure that the machine operates within safe and optimal temperature ranges.

Attributes:
• Helps to provide consistent and accurate temperature readings over time
• Provided with a maximum temperature value of 400 degrees Celsius that helps maintain stability in calibration

Applications:
A Resistance Temperature Detector Probe serves as a precise measuring tool that allows operators to monitor temperature levels in real-time, identify potential issues or abnormalities, and take appropriate actions to prevent damage.

• Thread: 1/8'' - 27 NPTF

• Wire Gauge (AWG): 24

• Connector Pin Count: 5

• Hex Size (mm): 14.29

• Hex Size (in): 0.562

• Weight (kg): 0.057

• Weight (lb): 0.125

• Material: Stainless Steel
