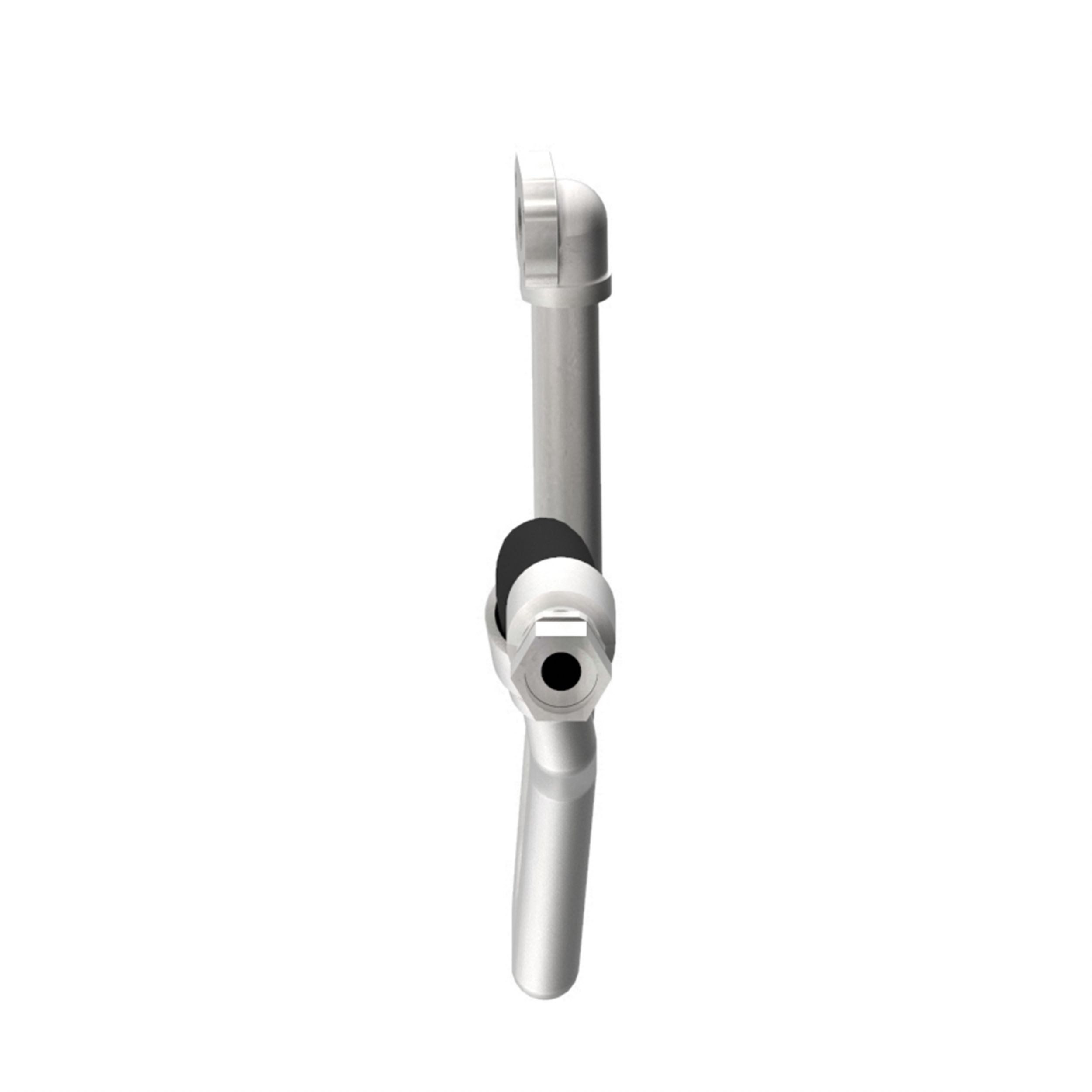

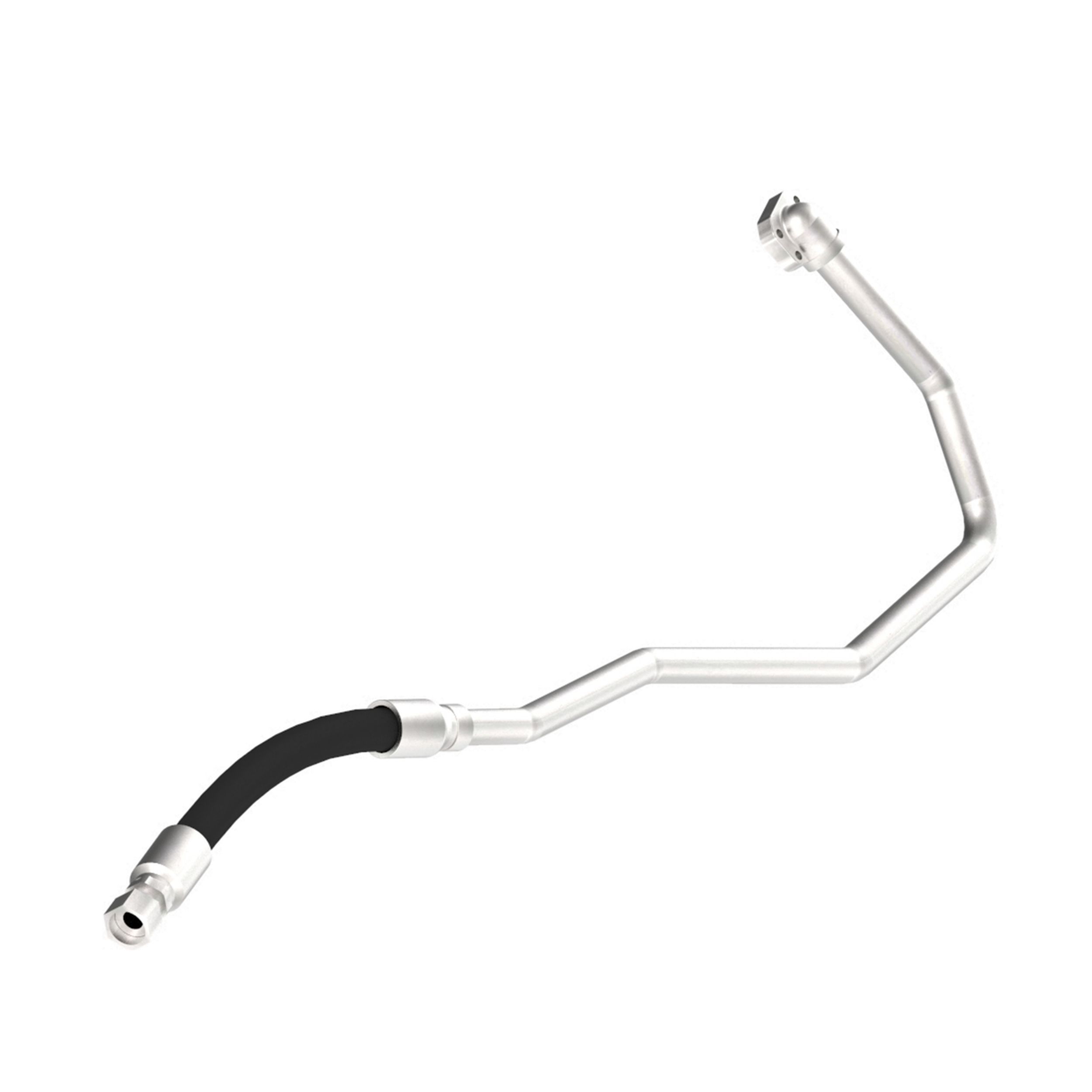

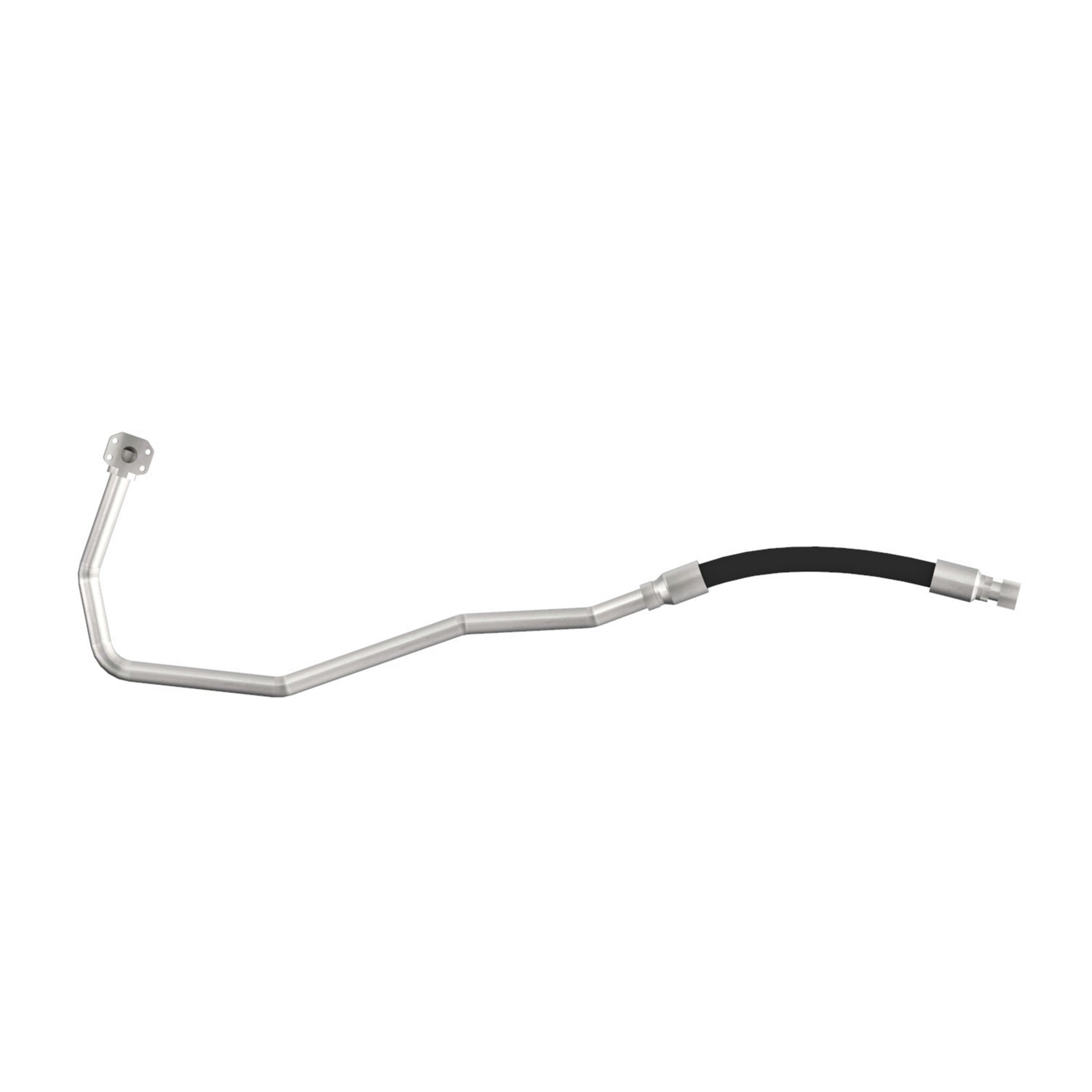

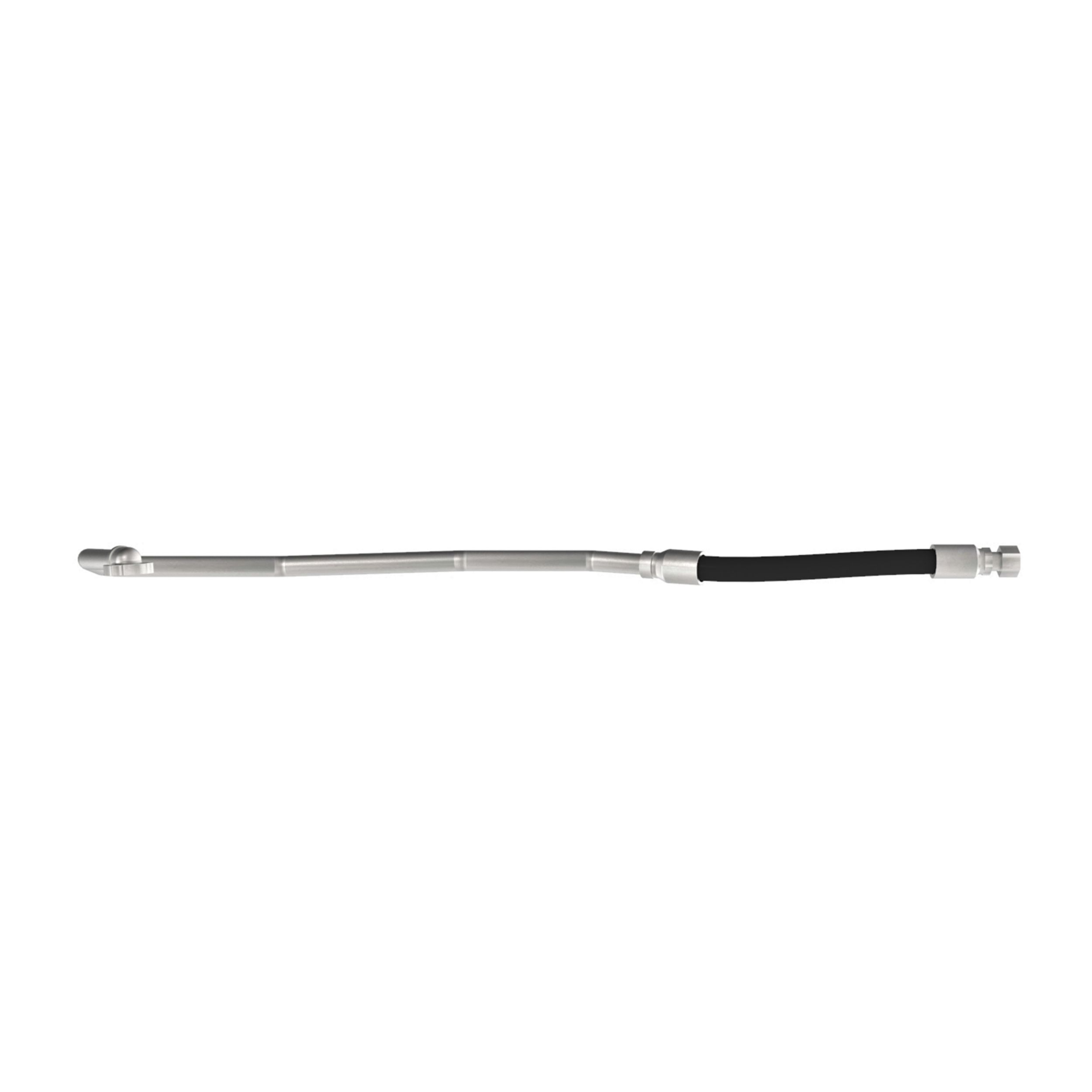

499-3539: ТРУБОПРОВОД ГИБРИДНЫЙ В СБОРЕ

A Lift Cylinder Hybrid Lines Assembly serves as a conduit for hydraulic fluid, allowing controlled movement of the tilt cylinder. The inner surface of the hose is made smooth to minimize friction and turbulence in the hydraulic fluid flow. Variables in the hose's size and length can regulate the speed and force with which the tilt cylinder moves. The assembly includes a fitting to ensure a leak-free connection.

Attributes:
• Withstands 27600 kPa relief valve pressure, ensuring consistent lift and drop response
• Allows for precise positioning of loads without any slippage, contributing to faster material movement

Applications:
A Lift Cylinder Hybrid Lines Assembly is used to carry fluid to and from the tilt cylinder to allow for responsive operation of the tilt mechanism, provide precise control over the quick drop valve, and ensure optimal performance.

• Inside Diameter (mm): 25.4

• Overall Length (mm): N/A

• Hose Size, ID Min. (mm): 25.4

• Hose Size, ID Min. (in): 1

• Hose Length (mm): 490

• Hose Length (in): 19.291

• Weight (kg): 6.133

• Weight (lb): 13.52

• Material: High Pressure Hose
