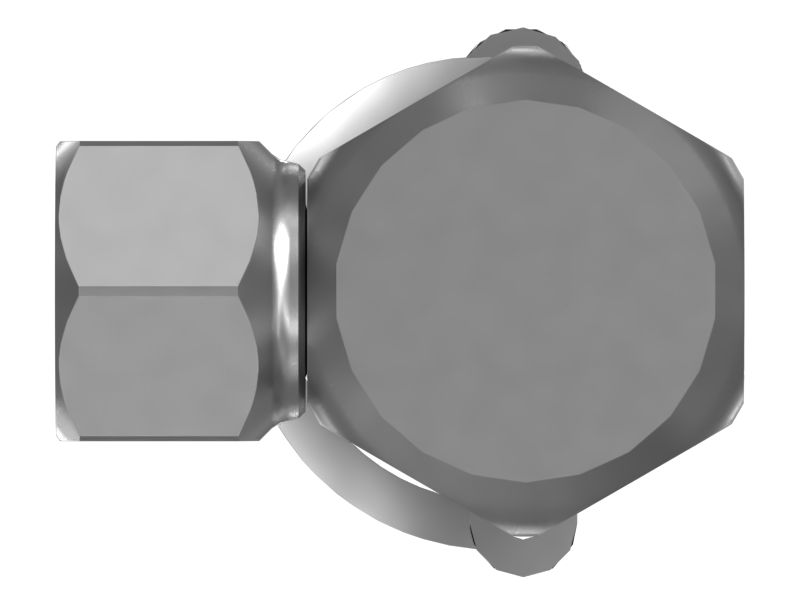

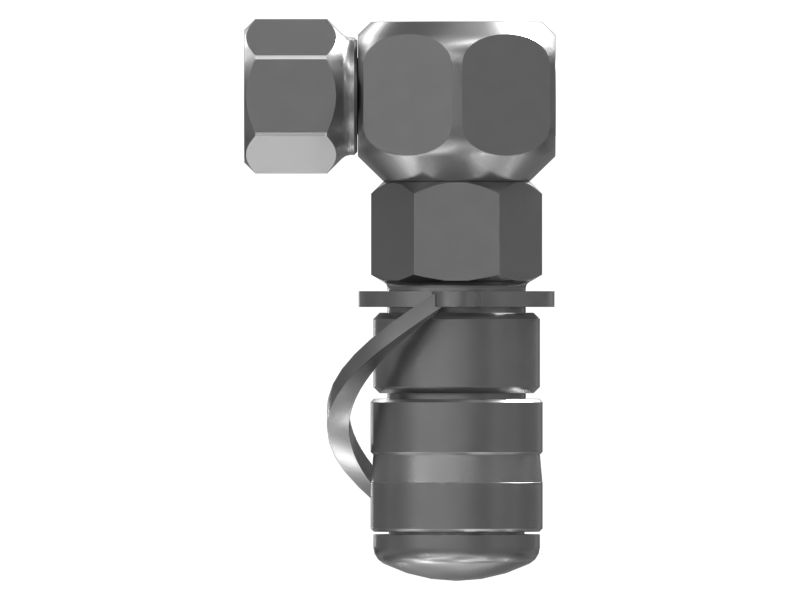

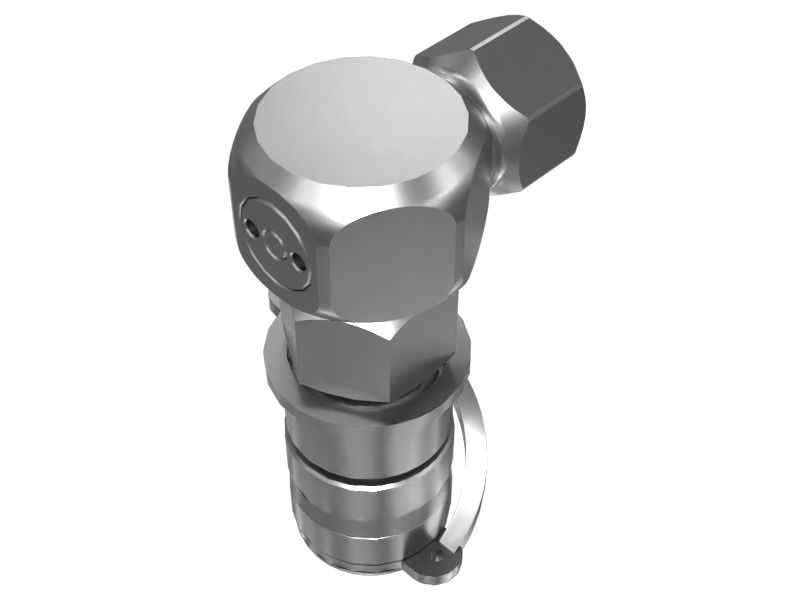

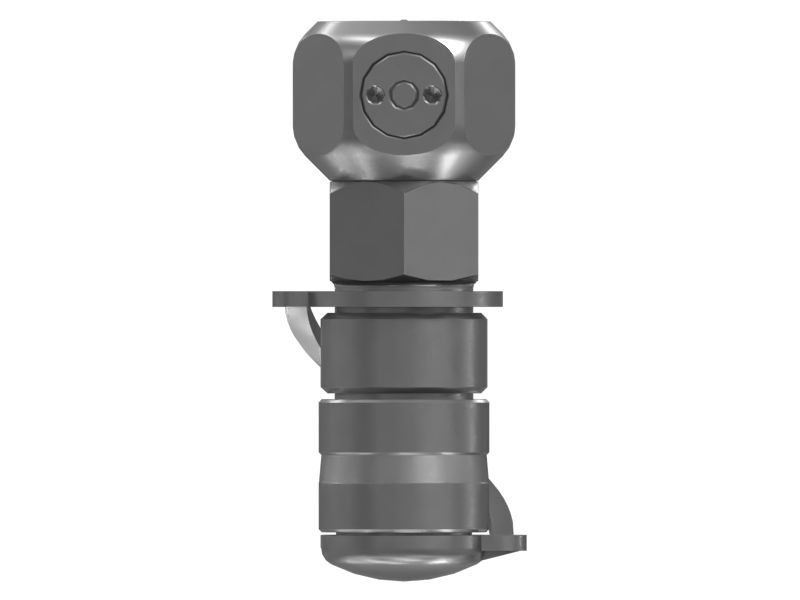

498-6574: 90-Degrees Quick Disconnect Swivel Coupler

The Quick Disconnect Swivel Coupler enables fast and efficient disconnection to the hydraulic tensioner. This coupler features a swivel mechanism that allows it to rotate, reducing stress on the hydraulic lines and preventing twisting during connection and disconnection. It provides a secure and leak-proof link, ensuring that hydraulic fluid is transferred smoothly between the tensioner and the hydraulic system without interruptions. Its quick disconnect feature allows for rapid assembly and disassembly, reducing downtime and increasing operational efficiency.

Attributes:
• Provides a leak-proof seal to ensure efficient fluid transfer.
• Withstands maximum hydraulic pressure of up to 1500 bar.

Applications:
The Quick Disconnect Swivel Coupler is used to connect hydraulic hoses to the hydraulic tensioner, allowing for quick and secure attachment during equipment maintenance.

• Weight (kg): 0.394

• Weight (lb): 0.869

• Material: Steel,Carbon Steel

• Length (mm): 90.7

• Length (in): 3.571

• Width (mm): 50.5

• Width (in): 1.988

• Hex Size (mm): 32,22

• Hex Size (in): 1.260, 0.866

• Internal Thread: G 1/4"
