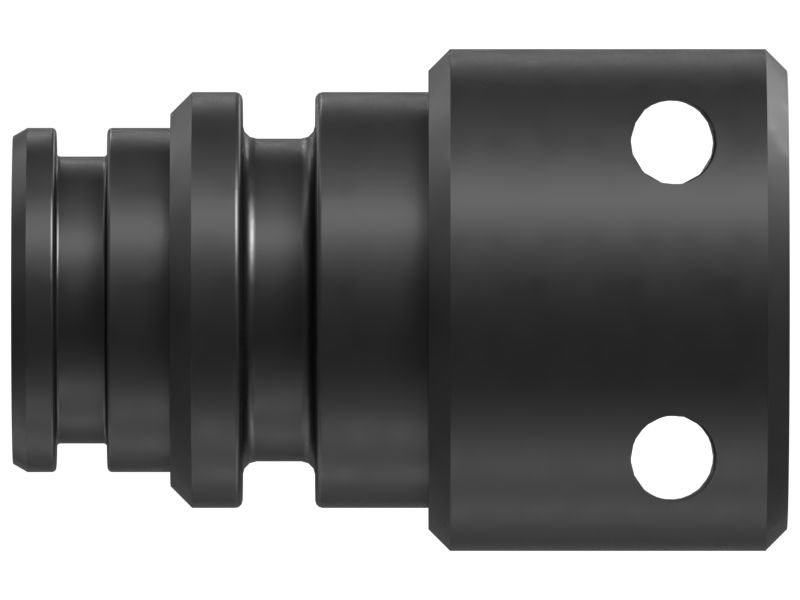

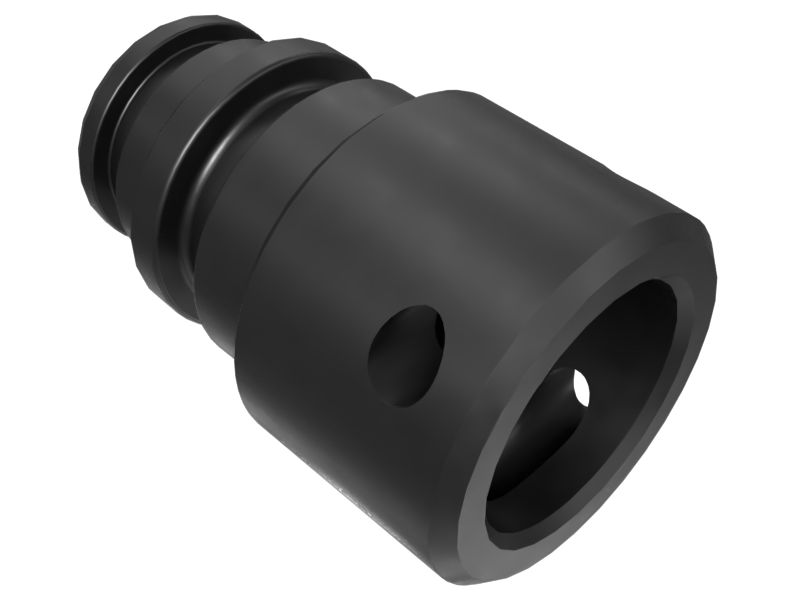

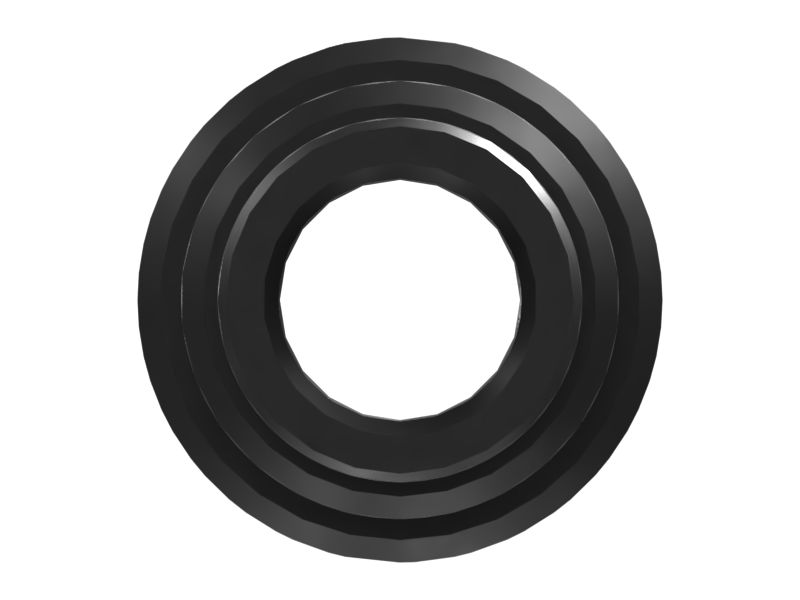

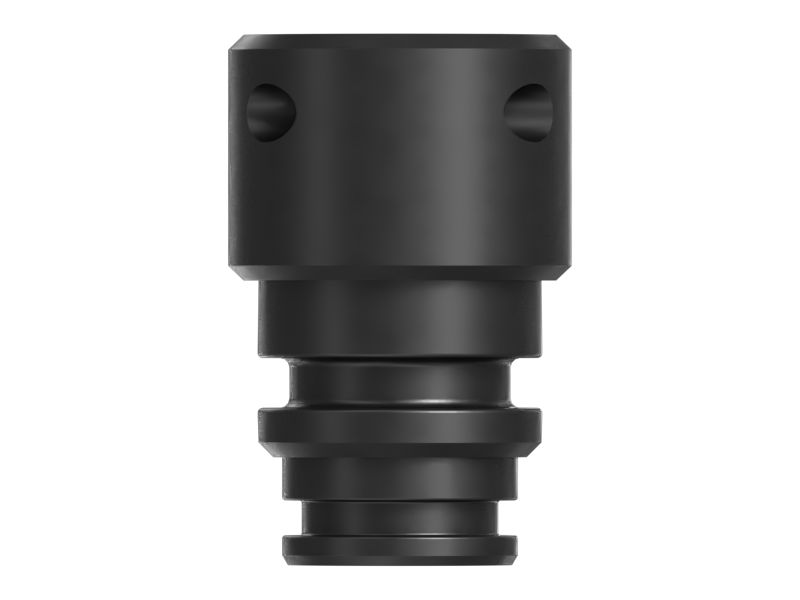

494-0279: Brake Accumulator Charging Relief Valve

The Brake Accumulator Charging Relief Valve is designed to maintain the pressure within the hydraulic system at a safe level while charging the brake accumulator. It is installed in the hydraulic circuit that supplies fluid to the brake accumulator. The valve is calibrated to open when the pressure exceeds a certain threshold, allowing excess fluid to bypass and preventing overcharging of the accumulator.

Attributes:
• Maximum operating pressure is 38500 kilopascals at port 1 and 1000 kilopascals at port 2.
• Relief type is direct acting.
• Maximum flow is 113.6 liters per minute at 38500 kilopascals.
• Pressure regulation for safe and efficient brake system operation.
• Capable to withstand the high pressures and temperatures.
• Corrosion-resistant materials for extended service life.

Applications:
The Brake Accumulator Charging Relief Valve is used to protect the hydraulic system and brake accumulator from overpressure conditions during the charging process.

• Material: Alloy Zinc,Carbon Steel
